Eaton 100mA Fast Acting Ceramic Cartridge Fuse 5 x 20 mm S501-100-R

Free Delivery in India | Lowest Global Shipping Charges

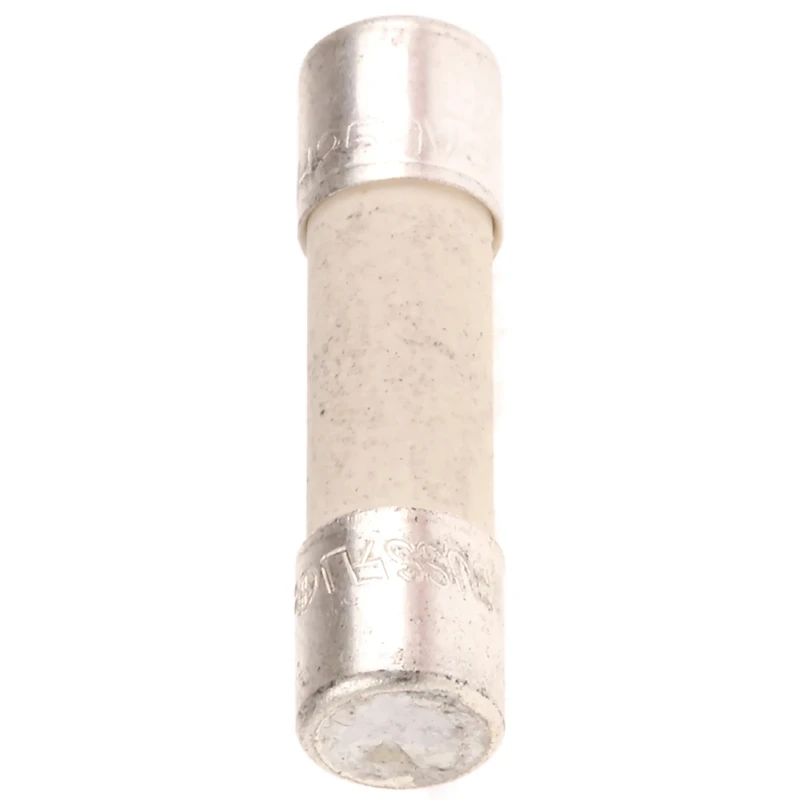

Eaton 100mA Fast Acting Ceramic Cartridge Fuse 5 x 20 mm S501-100-R

Name: Eaton 100mA Fast Acting Ceramic Cartridge Fuse 5 x 20 mm S501-100-R
Brand: Eaton
SKU: 195611
Price: 1.22 USD
Availability: InStock



Category Cartridge Fuse Brand Eaton Condition New

Specifications

Country of Origin	China
Voltage	250V ac
Diameter	5mm
Brand	Eaton
Body Material	Ceramic
Model	S501-100-R
Overall Length	20mm
Current Rating	100mA
Series	S501
Standards/Approvals	BSI, CCC, CSA, IMQ, SEMKO, VDE
Fuse Characteristics	Fast Acting
Fuse Size	5 x 20 mm
RS PRO 100mA F Ceramic Cartridge Fuse, 5 x 20 mmRS Stock No.	240-8281Brand: RS PRO
RS PRO 100mA F Ceramic Cartridge Fuse, 5 x 20mmBrand	RS PRO
Cooper Bussmann 100mA F Ceramic Cartridge Fuse, 5 x 20mmBrand	Cooper Bussmann

Key Features

Fast acting fuse designed for protection of semiconductors like thyristors and diodes.
Cylindrical ceramic body offers higher capacity than glass fuses.
Suitable for board and panel protection in electrical circuits.
High breaking capacity (HBC) for safe interruption of fault currents.
Compact size 5 mm diameter and 20 mm length fits standard fuse holders.
Provides short-circuit and overload protection for sensitive components and cabling.
Complies with multiple international standards including BSI, CCC, CSA, and VDE.
Manufactured in China with Eaton quality assurance.

Product Description

Eaton S501-100-R ceramic cartridge fuse is a 100mA, fast acting (F) fuse designed for protecting semiconductors such as thyristors, diodes, and triacs in electrical circuits. This fuse features a cylindrical ceramic body measuring 5 mm in diameter and 20 mm in length, suitable for standard 5 x 20 mm fuse holders.

The ceramic construction provides higher capacity and better thermal resistance compared to glass fuses, making it ideal for circuits with higher current demands and improved protection against overheating. Its fast acting characteristics enable rapid interruption of overload currents, protecting less sensitive components and preventing cable damage or fire hazards.

This fuse series (S501) has a high breaking capacity (HBC) for safely handling fault currents without explosion or rupture. It complies with international safety standards including BSI, CCC, CSA, IMQ, SEMKO, and VDE, ensuring reliable performance in industrial, laboratory, electrical automation, HVAC, and manufacturing applications.

The compact size of 5 x 20 mm makes Eaton S501-100-R popular for board and panel protection. The fuse is rated for 250V AC operation and is manufactured in China with Eaton's quality assurance. Note that fuses above 6.3A typically require open fuse holders to reduce nuisance tripping near rated currents.

Fast acting fuse for semiconductor protection and cable safeguarding. Ceramic body increases current capacity and thermal stability. High breaking capacity ensures safe fault current interruption. Complies with multiple international safety and quality standards.

Standard 5 x 20 mm size fits common fuse holders and panels. Suitable for short circuit and overload protection in electronic circuits.

This Eaton Cartridge Fuse is widely used in electrical automation, manufacturing, semiconductor protection, and various commercial and industrial environments that require reliable overcurrent safeguarding. For more electrical components and fuses, explore the relevant categories in EnvMart.
