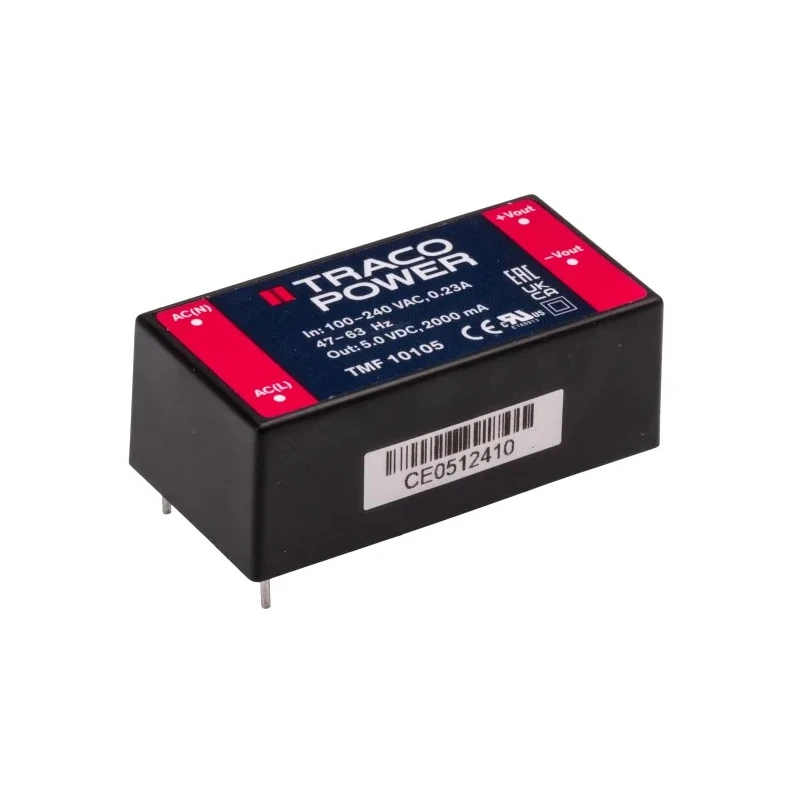

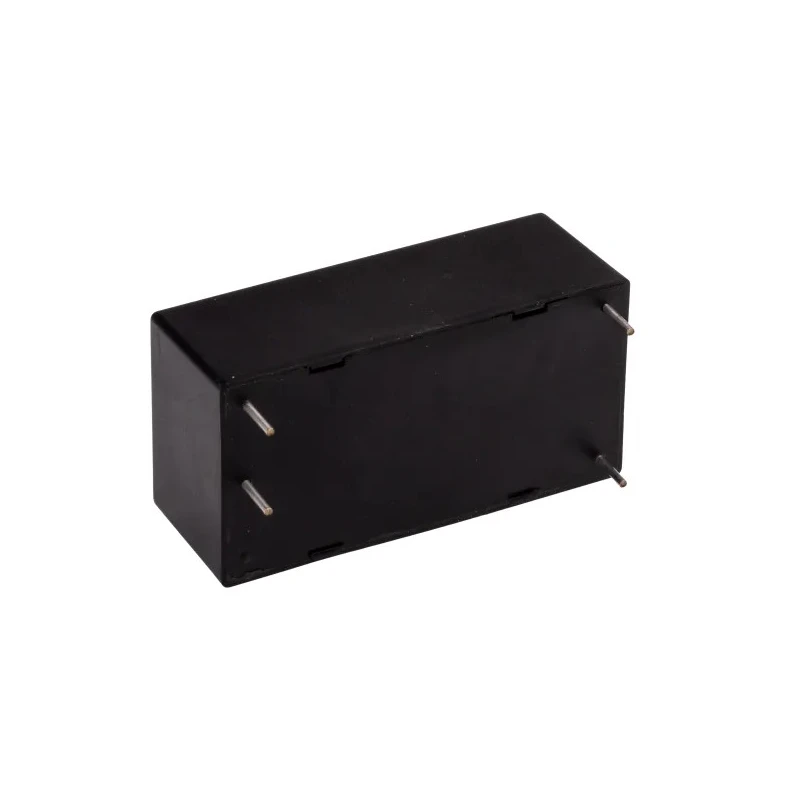

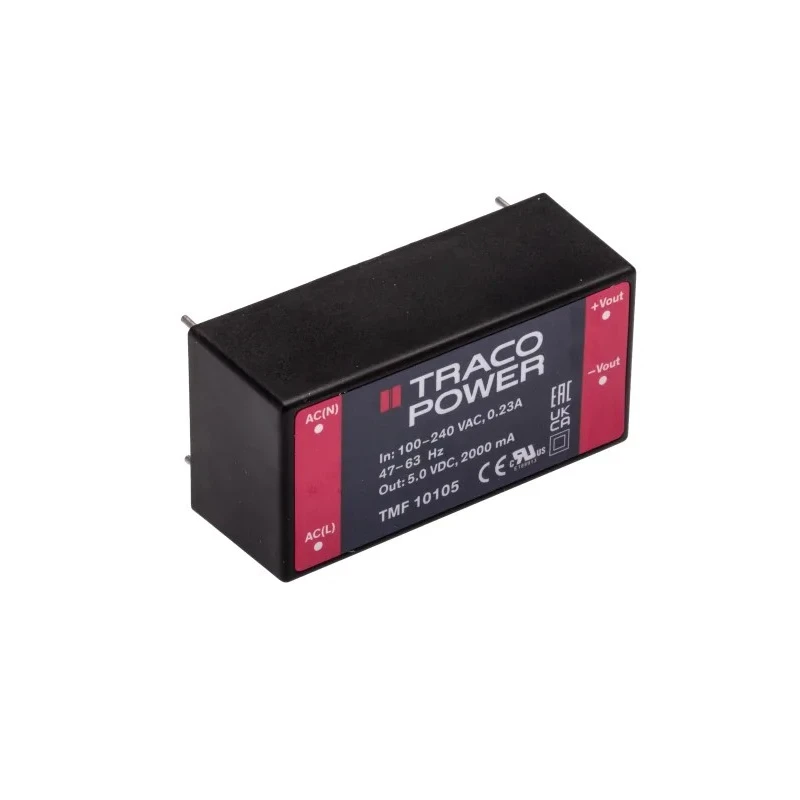

TRACOPOWER TMF 10105 AC/DC Power Supply 5V DC 10W PCB Mount, Medical Approved TMF 10105
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | TRACOPOWER |
| Power | 10W |
| Efficiency | 79% |
| Length | 52.2mm |
| Model | TMF 10105 |
| Depth | 19mm |
| Gross Weight | 47g |
| Width | 26.8mm |
| Mount Type | PCB |
| Series | TMF |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -25°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 264V ac |
| Maximum Output Voltage | 5V dc |
| SMPS Output Current | 2A |
| Minimum Input Voltage | 120, 90V dc |
| Standards/ApprovalsANSI/AAMI ES 60601-1, CSA CAN/CSA-C22.2 NO. 60601-1 | 14, IEC/EN/ES 60601-1, ISO 14971, RoHS |
Key Features
- Fully encapsulated design for enhanced PCB protection.
- Complies with IEC/EN/ES 60601-1 medical safety standards.
- Low leakage current for BF medical applications.
- Operates between -25°C and +70°C ambient temperature.
- Automatic short-circuit and overload protection.
- Compact PCB mount with lightweight 47g design.
- Energy efficiency of 79% for reduced power loss.
- Suitable for medical, industrial, and automation systems.
Product Description
TRACOPOWER TMF 10105 AC/DC Power Supply is engineered to deliver a stable 5V DC output at 10W power rating with a single output and PCB mounting. It is fully encapsulated to provide enhanced protection for PCB applications and complies with stringent medical standards such as IEC/EN/ES 60601-1, making it suitable for medical and electronic device integration.
This power supply supports a wide input voltage range from 90 to 264V AC and 120 to 370V DC, allowing operation from varied power sources. The design features low leakage current certified for BF applications, ensuring electrical safety in sensitive medical environments.
It maintains operational integrity within a broad temperature range of -25°C to +70°C and provides automatic protection against short-circuits and overloads. These features contribute to the device's reliability and durability in demanding industrial conditions.
The compact and lightweight (47g) PCB mount form factor makes the TMF 10105 especially suitable for portable medical devices and electronics where space is limited. With an efficiency of 79%, it supports energy-conscious applications, minimizing operational costs.
Its robust thermal management and compliance with multiple international safety standards, including ANSI/AAMI ES 60601-1, CSA CAN/CSA-C22.2 NO. 60601-1:14, ISO 14971, and RoHS, qualify it for usage in hospitals, laboratories, and industrial environments requiring dependable power conversion.
Fully encapsulated design for PCB protection and safety. Medical safety approvals ensure usage in critical healthcare devices. Wide AC/DC input voltage range enhances versatility. Low leakage current suitable for BF class medical applications.
Extended operating temperature range of -25°C to +70°C. Short-circuit and overload protection for device safety. Compact size with dimensions 52.2mm x 26.8mm x 19mm and weight 47g. Energy efficient with 79% efficiency rating.
Designed for automation and industrial electronics requiring stable DC supply.
This TRACOPOWER TMF 10105 is ideal for powering medical and electronic equipment, automation systems, and portable devices where safe, efficient, and reliable 5V DC power supply is essential. Explore EnvMart for a wide range of Power Supplies and switching power solutions suited to industrial and medical applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a stable output voltage of 5V DC with a power rating of 10W.
The TMF 10105 has dimensions of 52.2mm in length, 26.8mm in width, and 19mm in depth, with a gross weight of 47g.
It supports a wide input voltage range from 90 to 264V AC and 120 to 370V DC.
The efficiency rating of the TMF 10105 is 79%, which helps to reduce power loss during operation.
This unit complies with IEC/EN/ES 60601-1, ANSI/AAMI ES 60601-1, CSA CAN/CSA-C22.2 NO. 60601-1:14, ISO 14971, and RoHS.
The operating temperature range for this model is from -25°C to +70°C.
Yes, it includes automatic short-circuit and overload protection to enhance safety during operation.
This power supply is designed for PCB mounting, making it suitable for compact applications.
It provides a single output, delivering 5V DC.
It is suitable for medical, industrial, and automation systems, particularly where a stable 5V DC power supply is essential.
The TMF 10105 features low leakage current, certified for BF medical applications, ensuring safety in sensitive environments.
The country of origin for this power supply is Taiwan.
