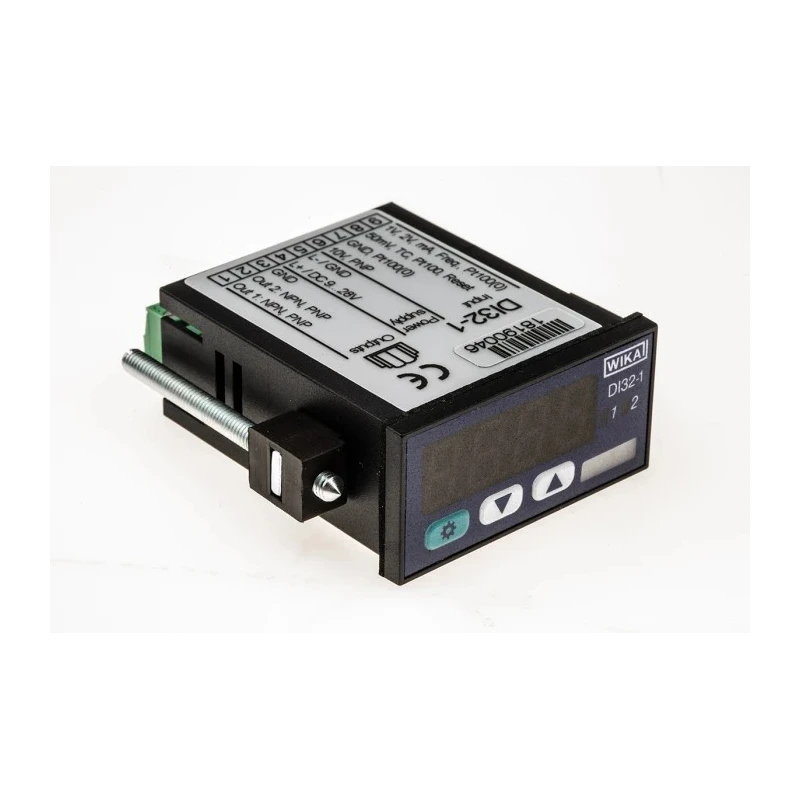

WIKA Digital Panel Multifunction Meter 4-Digit LED Display for Counter Temperature Humidity Frequency Current Voltage DI32-1

The WIKA DI32-1 is a precision digital panel multifunction meter designed for versatile industrial measurements including counter functions, temperature, humidity, frequency, current, voltage, and speed. Featuring a compact form factor with a 45mm width and 22.2mm height cutout, and a depth of just 3mm, this LED display meter fits seamlessly into control panels and industrial equipment.

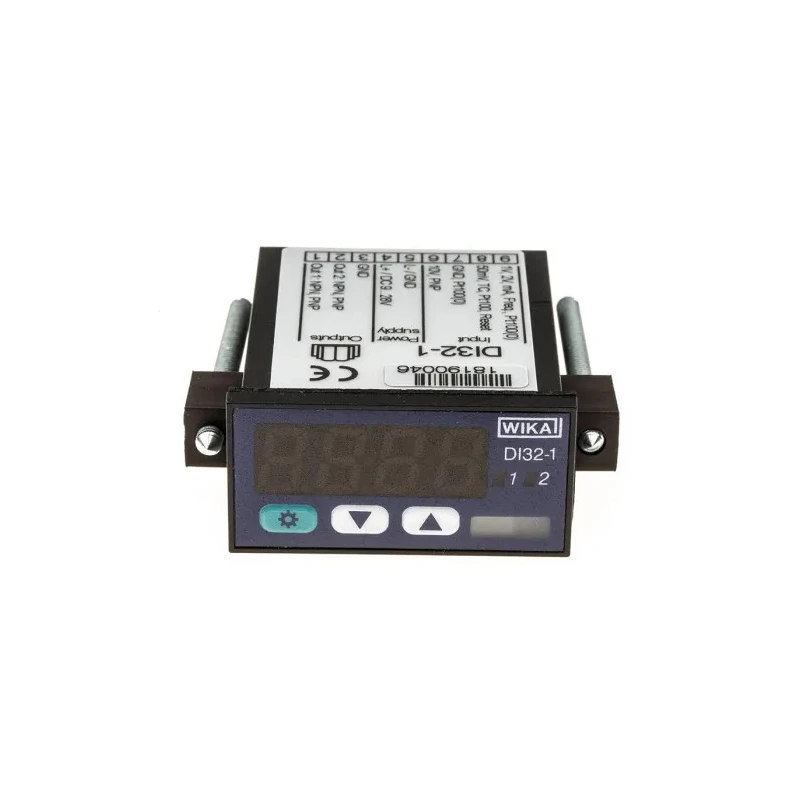

Its bright 7-segment, 4-digit LED display with 10mm digit height provides clear, easy-to-read measurements, essential for industrial automation and process control applications. The unit supports measurement ranges from -270°C for thermocouple type E to +80°C for type B, and measures frequency, voltage, humidity percentage, and current accurately.

Programming is simplified through a 3-button front panel facilitating configuration of 23 different input modes and providing access to settings and max/min recording. Two independent transistor switch outputs deliver customizable control for automation systems.

This device includes a tare function and allows the linearization of sensors with up to five adjustment points, enhancing measurement accuracy. Its measuring time is adjustable from 0.01 to 20 seconds, with temperature drift controlled to 100 ppm per Kelvin ensuring stable environmental performance.

Operating efficiently in environmental temperatures from -20°C to 50°C, the DI32-1 meter meets industrial standards including EMC 2004/108/EC, EN 61326, IEC 60529/EN 60529 for protection class IP, and UL 94 V-0 for fire resistance, making it suitable for machine building, plant construction, test benches and various industrial applications.

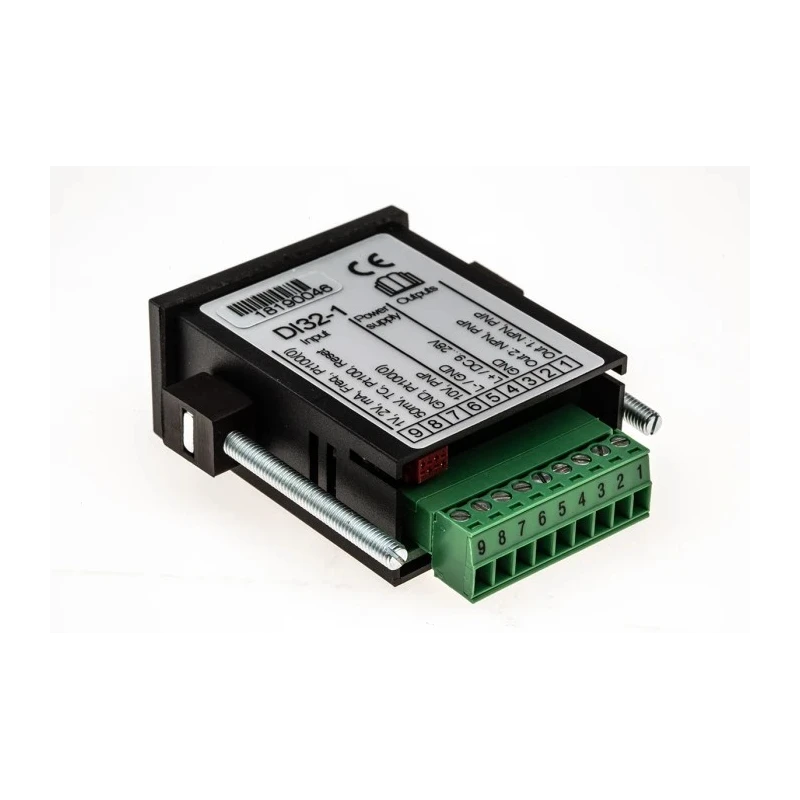

Its robust digital electrical meter type and German country of origin underscore quality and reliability in measurement instrumentation. The removable 9-pin plug-in terminal facilitates easy installation and maintenance.

The device features a 7-segment, 4-digit LED display for easy readability. Supports measurement of multiple properties including speed and frequency. Operates reliably in temperatures ranging from -20°C to 50°C. Equipped with two independently configurable transistor switch outputs.

Adjustable measuring time from 0.01 to 20 seconds enhances measurement flexibility. Tare function and sensor linearization with up to 5 setting points allow customization. Compact design includes a 45mm x 22.2mm cutout for panel mounting.

Power supply range between 9 to 28 VDC ensures wide compatibility. Maintains 100 ppm/K temperature drift for stable readings. Complies with standards EMC 2004/108/EC, EN 61326, IEC 60529/EN 60529, UL 94 V-0 for industrial safety and reliability.
