WIKA 040 mm Type R Pressure Gauge 1.6 bar, Back Entry, Plastic Case 7833462

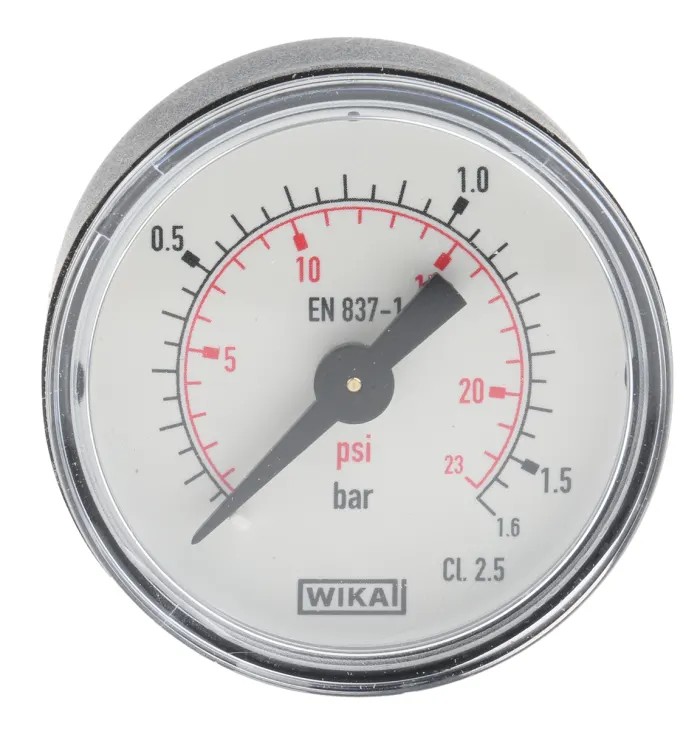

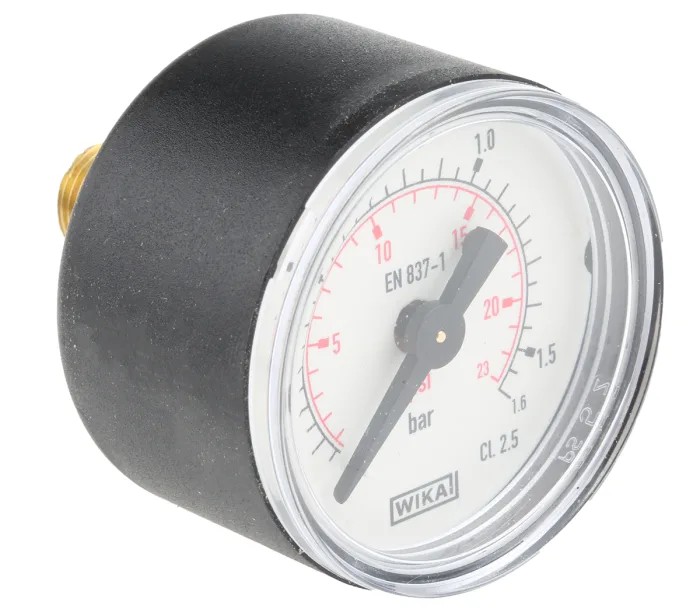

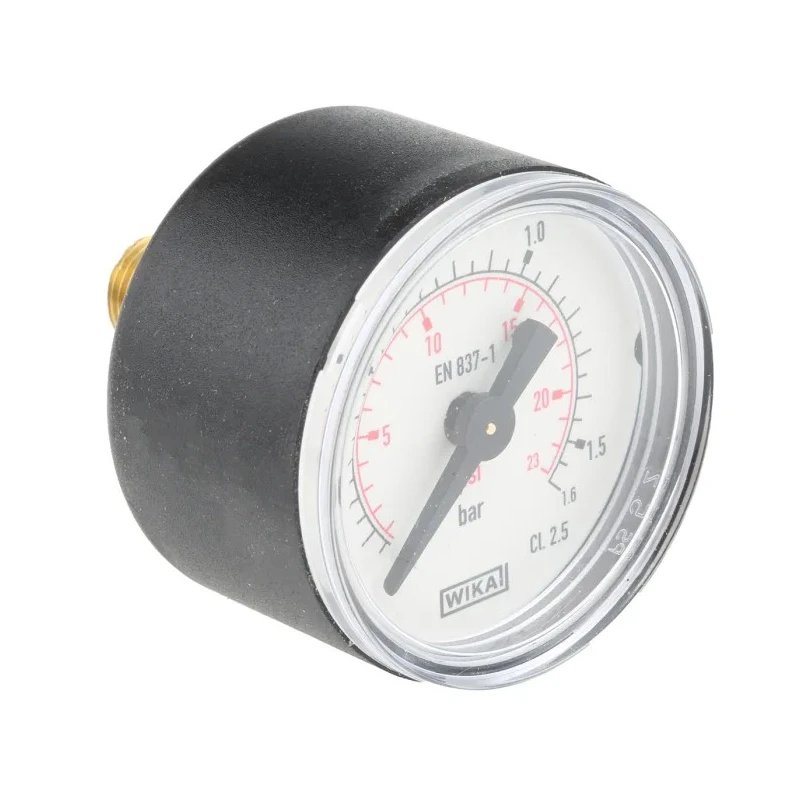

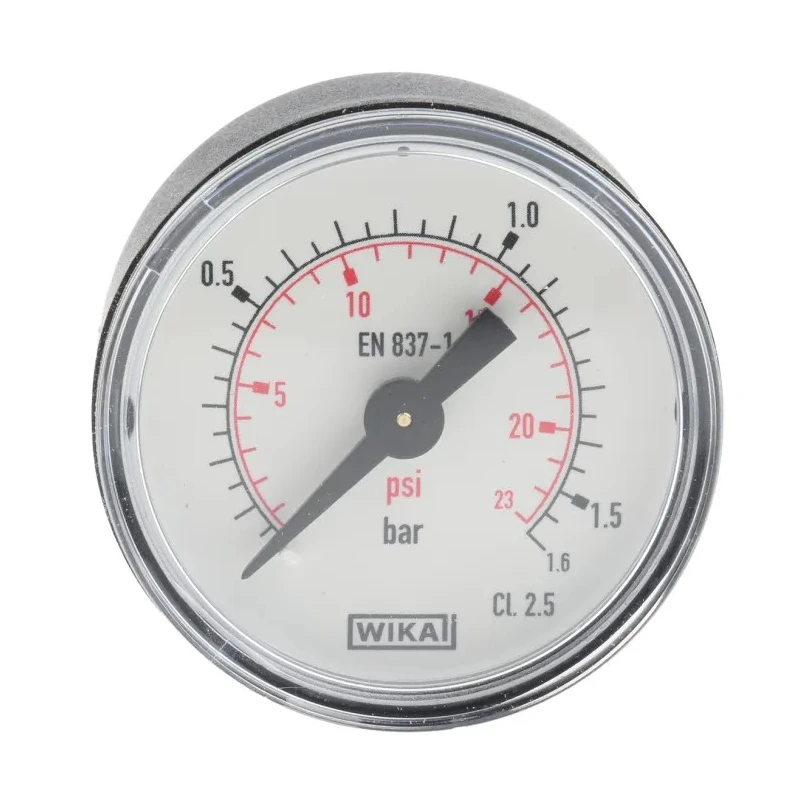

WIKA 7833462 pressure gauge features a 040 mm white dial with Type R back-entry connection designed according to the Bourdon tube operating principle. It measures maximum pressure up to 1.6 bar with an accuracy of ±1.6%, making it precise for various industrial measurement tasks.

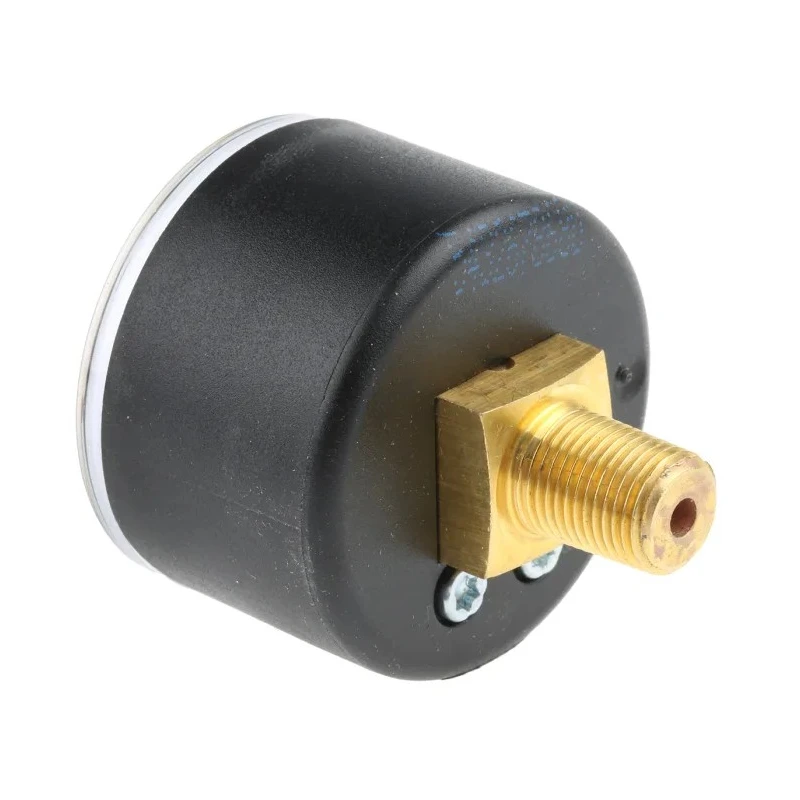

This pressure gauge’s plastic case ensures durability in mechanical environments while allowing ease of installation due to the back-entry design. It includes dual scale calibration in bar and psi, suitable for use with gaseous and liquid media, except highly viscous substances that could obstruct the pressure system.

The gauge operates reliably within an ambient temperature range of -40°C to +60°C and a maximum operating temperature of 60°C. Conforming to EN 837-1 standards, it meets stringent quality and safety norms.

Typical applications include pneumatic systems, heating and air conditioning technology, small capacity compressors, and medical engineering, providing dependable pressure monitoring in these environments.

Operates on the Bourdon tube principle for precise pressure measurement. Plastic case material provides ruggedness and protection. Back entry connection enables convenient installation. Dual scale dial calibrated in bar and psi.

Accuracy of ±1.6% supports reliable readings. Maximum operating temperature of 60°C suitable for industrial conditions. Conforms to EN 837-1 standards ensuring quality assurance. Suitable for gaseous and liquid media excluding highly viscous fluids.

Compact 040 mm dial size for easy visibility and use. Set contains 1 Pc WIKA 040 mm Type R pressure gauge, model number 7833462. Discover more in the Pressure Gauge category for industrial measuring instruments at EnvMart.
