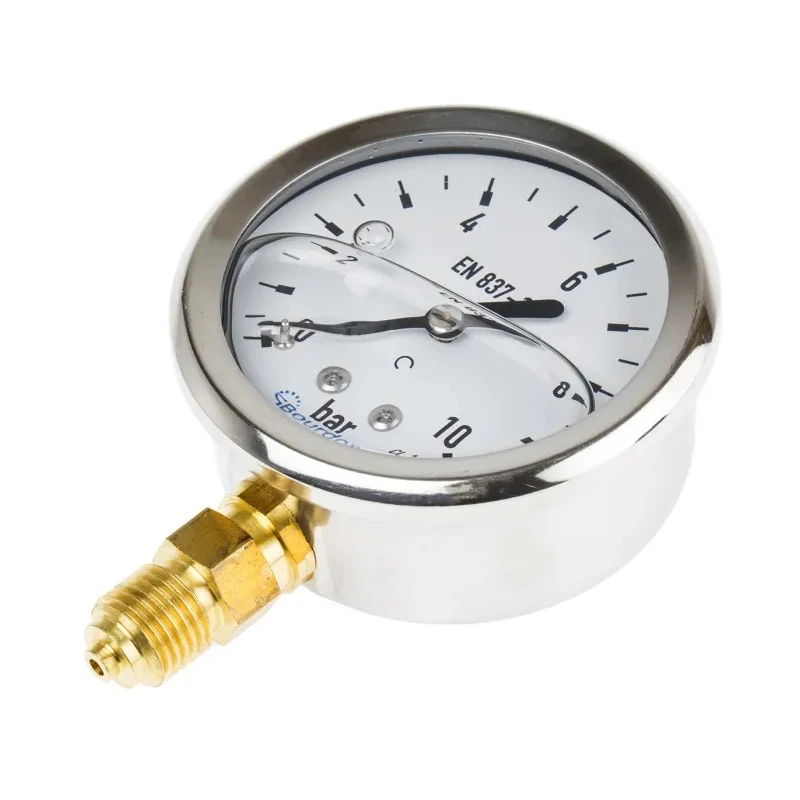

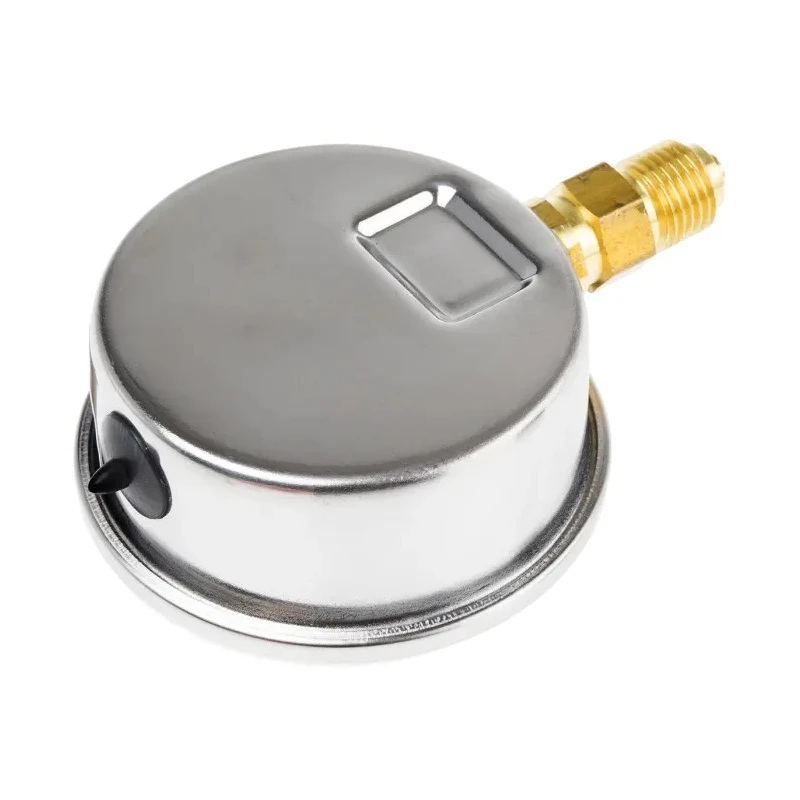

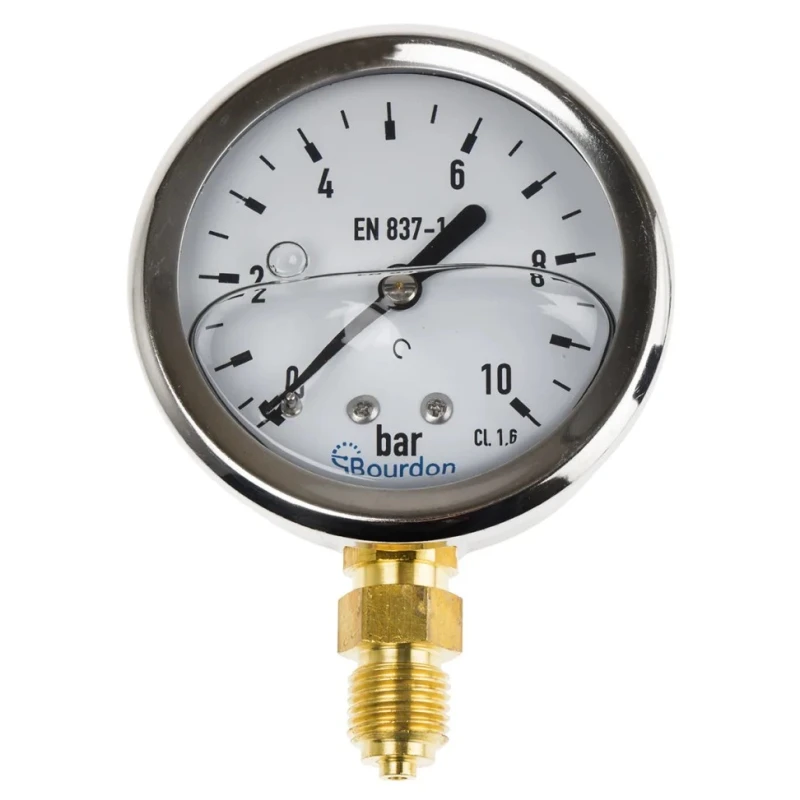

Bourdon 63 mm G 1/4 Bottom Pressure Gauge 10 bar MIT3-D22.B22
Specifications
| Country of Origin | China |
|---|---|
| Accuracy | ±2.5 % |
| Brand | Bourdon |
| Model | MIT3-D22.B22 |
| Connection Type | Bottom |
| Case Material | Stainless Steel |
| Series | MIT3 |
| Maximum Operating Temperature | 70°C |
| Dial Size | 63mm |
| Connection Size | G 1/4 |
| PRESSURE CONNECTION | G 1/4 inch |
| Maximum Pressure Measurement | 10bar |
| Minimum Pressure Measurement | 0bar |
| Connection Location | Bottom Entry |
| Dial Colour | Black, White |
Key Features
- The pressure gauge features a stainless steel case and a black and white aluminium alloy dial for clear readings.
- It includes a bottom G 1/4 inch connection for easy installation in pneumatic and hydraulic systems.
- The gauge complies with standards EN 837-1, NF EN 60529, and PED 97/23/CE ensuring high reliability and safety.
- The operating temperature range is up to 70°C, suitable for various industrial environments.
- It is equipped with a balanced aluminium pointer and a cupreous metal Bourdon tube for durability.
- The IP54 protection rating ensures resistance against dust and water ingress in standard applications.
- This pressure gauge is applicable to compressors, diesel engines, agricultural equipment, public works, machine tools, hydraulic systems, and pumps.
Product Description
The Bourdon MIT3-D22.B22 pressure gauge is a precision instrument engineered for industrial and mechanical applications requiring reliable pressure measurement up to 10 bar. Featuring a 63 mm dial with black graduations on a white background, it delivers high readability and accuracy within ±2.5% as per EN 837-1 standards.
The gauge's stainless steel case and balanced aluminium pointer provide robustness and clear indication. The bottom entry with a G 1/4 inch brass connection supports straightforward mounting in pneumatic or hydraulic systems. Its cupreous metal Bourdon tube and welded tube connection assembly enhance durability under demanding operations.
With an IP54 ingress protection rating and a maximum operating temperature of 70°C, this pressure gauge is suitable for environments such as compressors, agricultural machinery, public works, diesel engines, hydraulic systems, and pumps. The design complies with NF EN 60529 and Pressure PED 97/23/CE directives, ensuring conformity with industrial safety requirements.
The Bourdon MIT3-D22.B22 is part of the MIT3 series, available in 63 mm and 100 mm dial diameters, offering a proven solution for accurate pressure monitoring in fluid power and mechanical engineering applications.
The gauge features a black balanced aluminium pointer for precise reading. Constructed with a stainless steel case to resist corrosion and mechanical stress. Equipped with a cupreous metal Bourdon tube for reliable pressure sensing.
Designed with a bottom G 1/4 connection for versatile installation. Complies with EN 837-1 and related EN and PED standards ensuring safety and certification. IP54 rated for protection against dust and water splashes in typical industrial settings.
Ideal for use in compressors, hydraulic systems, diesel engines, agricultural equipment, public works, pumps, and machine tools.
This Bourdon Pressure Gauge product offers a durable, accurate, and certified solution for industrial fluid power pressure measurement needs. It is backed by regulatory compliance and robust material construction, making it suitable for varied commercial and industrial sectors. Browse more pressure measurement instruments and Bourdon brand products at EnvMart for your specific applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum pressure measurement for this model is 10 bar, with a minimum measurement capability of 0 bar.
The accuracy of this pressure gauge is ±2.5% as per EN 837-1 standards.
The dial size of this gauge is 63 mm, providing clear readability with black graduations on a white background.
It features a bottom connection type with a G 1/4 inch size, allowing for easy installation in various systems.
The case is made of stainless steel, and it includes a cupreous metal Bourdon tube for reliable pressure sensing.
The maximum operating temperature for this model is 70°C, making it suitable for various industrial environments.
This model has an IP54 protection rating, ensuring resistance against dust and water splashes in standard applications.
It complies with EN 837-1, NF EN 60529, and Pressure Equipment Directive 97/23/CE, ensuring high reliability and safety.
This gauge is applicable in compressors, hydraulic systems, diesel engines, agricultural equipment, public works, and pumps.
The Bourdon MIT3-D22.B22 is part of the MIT3 series, which also includes models with 100 mm dial diameters.
It is equipped with a balanced aluminium pointer, which enhances the precision of readings.
The country of origin for this model is China, indicating where it is manufactured.
