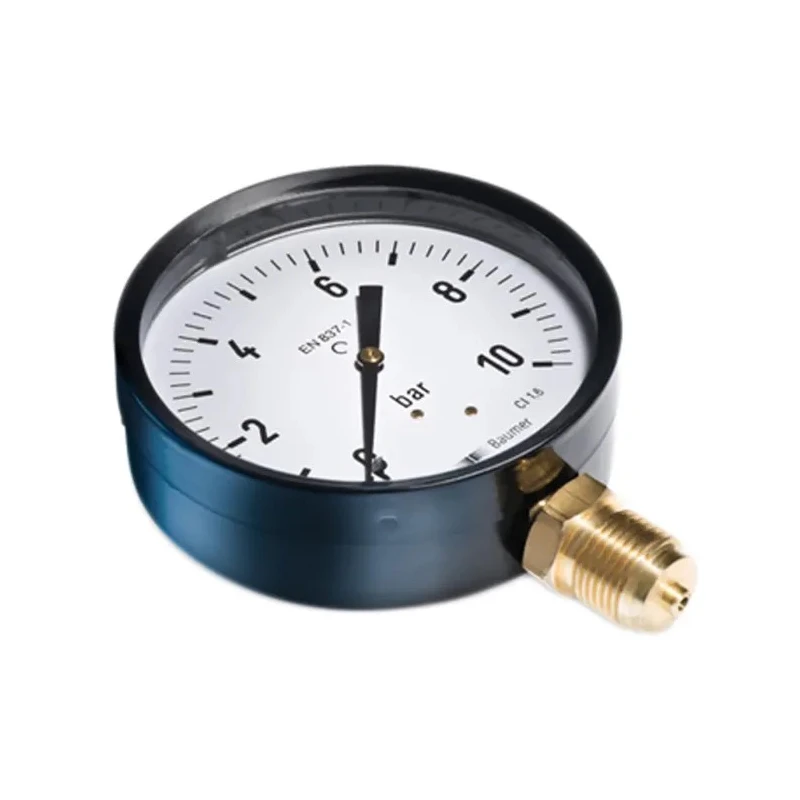

Bourdon 100 mm G 1/2 in Bottom Pressure Gauge 10 bar MAT5-D30.B22
Specifications
| Country of Origin | China |
|---|---|
| Accuracy | ±2.5 % |
| Brand | Bourdon |
| Model | MAT5-D30.B22 |
| Connection Type | Bottom |
| Case Material | Black Painted Steel |
| Series | MAT |
| Maximum Operating Temperature | 70°C |
| Dial Size | 100mm |
| Connection Size | G 1/2 in |
| Standards/Approvals | EN 837-1, Pressure PED 97/23/CE |
| Maximum Pressure Measurement | 10bar |
| Minimum Pressure Measurement | 0bar |
| Connection Location | Bottom Entry |
| Dial Colour | White |
Key Features
- Black painted steel case ensures durability and corrosion resistance.
- Accuracy of ±2.5 % offers reliable readings for industrial applications.
- White dial color with a knife edge black aluminium pointer provides clear visibility.
- Designed according to EN 837-1 and Pressure PED 97/23/CE standards for quality assurance.
- Maximum operating temperature is 70°C, suitable for various environments.
- Cupreous metal Bourdon tube for precise pressure measurement.
- IP32 rated protection against dust and water ingress.
- Bottom connection location with brass connection and 14 mm square for ease of installation.
Product Description
Bourdon MAT5-D30.B22 is a 100 mm dial size bottom entry pressure gauge designed for industrial and fluid power applications, capable of measuring pressures up to 10 bar. The unit features a durable black painted steel case that offers resistance against environmental factors and ensures longevity in demanding settings.
This pressure gauge is manufactured in China and complies with stringent standards such as EN 837-1 and Pressure PED 97/23/CE, ensuring reliability and safety in usage. The dial has a white background with black graduations and a knife edge aluminium pointer for enhanced readability. The dial used is ABS plastic for the 100 mm size, ensuring lightweight yet robust construction.
The cupreous metal Bourdon tube provides accurate and stable pressure readings, with an accuracy rating of ±2.5 %. The gauge is IP32 rated, offering protection mainly against solid objects and dripping water. It has a bottom G 1/2 inch brass connection with a 14 mm square welded tube assembly allowing for straightforward mounting in piping systems.
Suitable for applications involving compressed gases, lubricating circuits, and hot or cold water networks, this gauge is well-suited for water distribution and other industrial uses where pressure monitoring is critical.
Black painted steel case construction ensures durability. Knife edge black aluminium pointer enhances readability of measurements. Cupreous metal Bourdon tube offers precision in pressure sensing. Welded tube connection assembly and 14 mm square brass connection facilitate secure mounting.
Class 2.5 accuracy for reliable readings across applications. Available with bottom or back connection options, here provided with bottom connection. Complies with EN 837-1 and Pressure PED 97/23/CE standards to guarantee safety and performance.
IP32 rated for protection against limited ingress of dust and water. Ideal for industrial, pneumatic, hydraulic, and water treatment applications. Explore the range of Bourdon Pressure Gauges and other measuring instruments on EnvMart for reliable industrial performance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model can measure pressures up to 10 bar.
The accuracy of this gauge is ±2.5 %, providing reliable readings for industrial applications.
The dial size of this unit is 100 mm.
It features a bottom G 1/2 inch brass connection, allowing for straightforward installation in piping systems.
The case is made of black painted steel, and the Bourdon tube is made of cupreous metal for accurate pressure measurement.
The maximum operating temperature is 70°C, making it suitable for various environments.
Yes, it complies with EN 837-1 and Pressure PED 97/23/CE standards for quality assurance.
It has an IP32 rating, providing protection against limited ingress of dust and dripping water.
The dial has a white background with black graduations for enhanced visibility.
It is suitable for applications involving compressed gases, lubricating circuits, and hot or cold water networks.
The connection location is bottom entry, facilitating easy installation.
Yes, this gauge is available with both bottom and back connection options.
