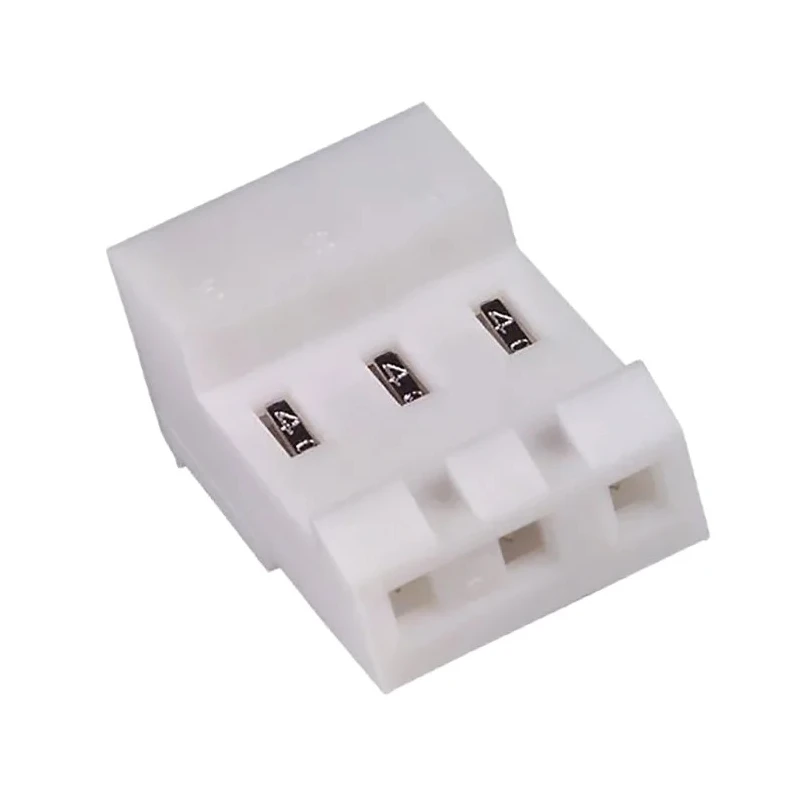

TE Connectivity MTA-156 Female Connector Housing 3.96 mm Pitch 3 Way 1 Row Right Angle 3-640429-3
Specifications
| Country of Origin | United States |
|---|---|
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Length | 18.42mm |
| Width | 11.89mm |
| Mount Type | Cable |
| Housing Material | Nylon |
| Series | MTA-156 |
| Number of Rows | 1 |
| Pitch | 3.96mm |
| For Use With | Infrared Reflow Process |
| Number of Contacts | 3 |
| Connector Gender | Female |
Key Features
- Features a 3.96 mm pitch for precise connections.
- Has 3 contact positions in a single row configuration.
- Right angle orientation for space-saving assembly.
- Constructed from white nylon 6/6 with UL94V-2 flame retardant properties.
- Designed for use with infrared reflow process applications.
- Supports discrete wire sizes from 18 to 26 AWG using IDC technology.
- Includes moulded ribs to prevent reverse mating and ensure proper polarization.
- Current rating of 7 Amperes for reliable electrical performance.
Product Description
TE Connectivity 3-640429-3 female connector housing is part of the MTA-156 series, featuring a 3.96 mm pitch and a 3-way, 1-row right angle cable-mount design perfect for various electronic components applications.
This connector housing is made from durable white nylon 6/6 material with UL94V-2 flame retardant rating, ensuring safety and longevity in demanding industrial and manufacturing environments.
The MTA-156 system utilizes insulation displacement contact (IDC) technology, enabling effortless one-step assembly without stripping wires, accommodating stranded discrete wire sizes ranging from 18 to 26 AWG.
The right angle orientation facilitates compact layouts in PCB and wire harness designs, supporting infrared reflow soldering processes for effective mass termination.
Featuring moulded ribs and polarization tabs, the design prevents reverse mating and guarantees proper connector alignment, improving reliability in electrical connections up to 7 Amperes of current.
These connectors are end-to-end stackable, offering flexibility for large or complex assemblies in industrial, electronic, telecommunications, and manufacturing sectors requiring dependable wire-to-wire or wire-to-board connections.
3.96 mm pitch for accurate conductor spacing. 3 contacts arranged in a single row configuration. Right angle orientation for optimized PCB layouts. High-quality nylon 6/6 housing with UL94V-2 rating. IDC technology for quick wire termination.
Prevents reverse mating with moulded ribs and polarization tabs. 7 A current rating suitable for a broad range of applications. End-to-end stackable design supports scalable assemblies. Manufactured in the United States, ensuring quality control.
This connector housing is ideal for use in industrial equipment, telecommunications, electronic controls, aerospace, and automotive wiring systems requiring reliable, easy-to-assemble connections.
Explore more TE Connectivity products and Connector Housings at EnvMart to find complementary components for your electronic and electrical design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this connector housing is 3.96 mm, allowing for precise connections between conductors.
This model features 3 contact positions arranged in a single row configuration.
It has a right angle orientation, which is designed for space-saving assembly in various applications.
It supports discrete wire sizes from 18 to 26 AWG using insulation displacement contact (IDC) technology.
The housing is constructed from white nylon 6/6, which has UL94V-2 flame retardant properties.
The current rating is 7 Amperes, ensuring reliable electrical performance in various applications.
Yes, it is designed for use with infrared reflow process applications, facilitating effective mass termination.
The connector housing measures 18.42 mm in length and 11.89 mm in width.
Yes, it includes moulded ribs and polarization tabs to prevent reverse mating and ensure proper alignment.
It is manufactured in the United States, ensuring quality control during production.
It is ideal for industrial equipment, telecommunications, electronic controls, aerospace, and automotive wiring systems.
This model utilizes a cable mount type, making it suitable for various wiring configurations.
