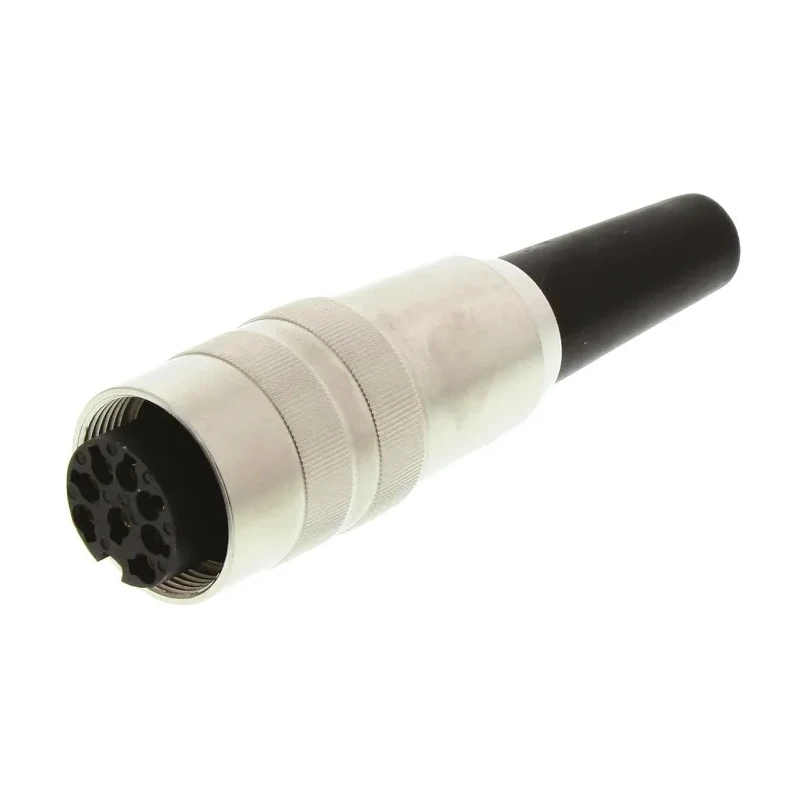

Lumberg 8 Pole Straight M16 DIN Socket Female Cable Mount, 60V AC, 5A, Threaded, IP40 KV 80

The Lumberg KV 80 is an 8-pole straight DIN Socket designed for cable mounting, primarily used in electronic and industrial environments requiring secure and reliable connectors. It is rated for 60V AC operation at 5A current, ensuring efficient signal transmission in control and automation systems.

Manufactured with a robust copper zinc alloy housing and brass contacts plated with silver and gold, it delivers excellent conductivity and corrosion resistance. The connector is designed with a threaded mating type that provides a secure and stable mechanical connection, ideal for harsh industrial conditions.

This model complies with DIN EN 60529, achieving an IP40 protection rating that safeguards against solid objects larger than 1 mm, suitable for controlled environments. The operating temperature range from -40°C to 85°C accommodates various industrial and medical instrumentation applications.

With solder termination type and a straight orientation, it facilitates easy installation and reliable connection. The KV series supports chassis and cable mount plugs and sockets up to 12-way, with the KV 80 specifically providing 8 contact points arranged in a circular pattern, adhering to technical standards IEC60130-9.

Operates at 60V AC with 5A current capacity. Threaded mating type for secure connections. IP40 rated protection as per DIN EN 60529 standard. Temperature range from -40°C to 85°C suits diverse industrial environments. Copper zinc alloy housing with brass contacts plated silver and gold.

Solder termination with straight cable mount orientation. Compliant with IEC60130-9 standard for DIN connectors. Ideal for automation technology and medical instrumentation uses.

This connector is a dependable choice for industrial automation, medical instrumentation, and control engineering, providing robust electrical connections. Explore more products in the DIN Connectors category on EnvMart for related components and accessories to suit various technical requirements.
