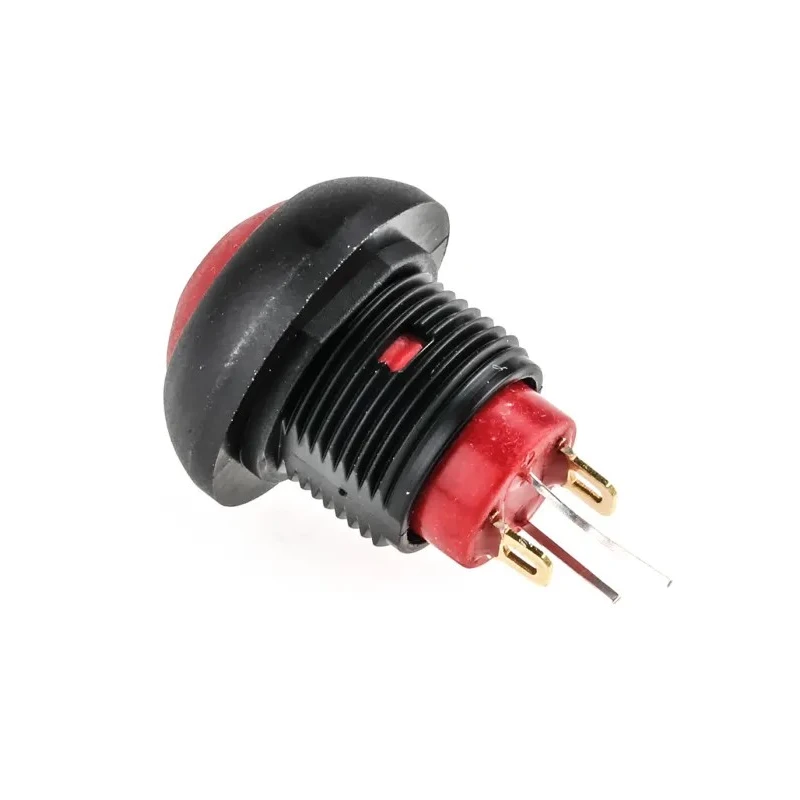

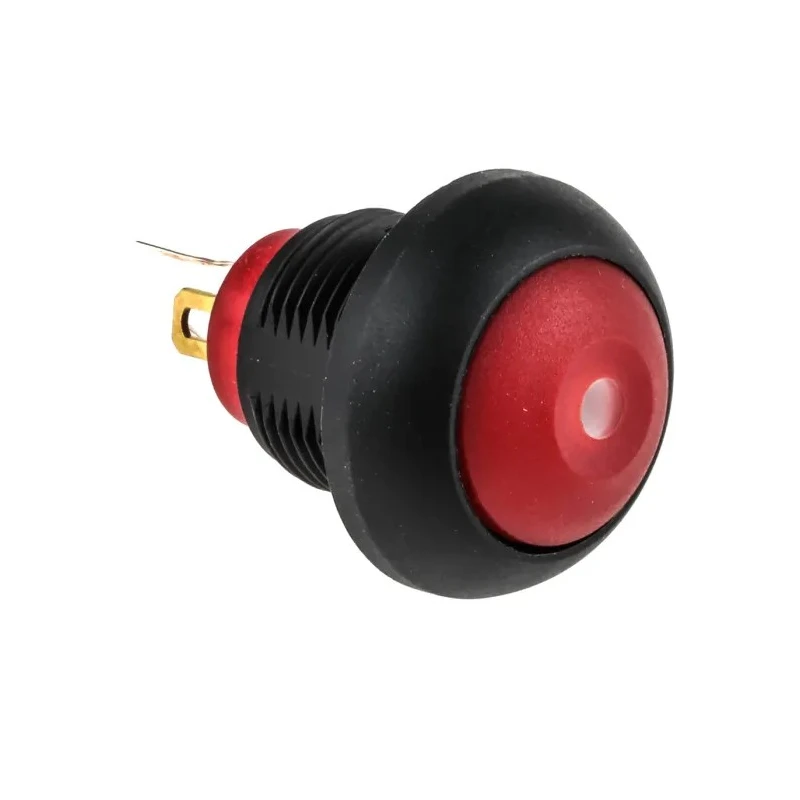

KNITTER-SWITCH DPWL Series Illuminated Miniature Push Button Switch, Momentary, Panel Mount, 12.9 mm Cutout, SPST DPWL1CGRR

Name: KNITTER-SWITCH DPWL Series Illuminated Miniature Push Button Switch, Momentary, Panel Mount, 12.9 mm Cutout, SPST DPWL1CGRR
Brand: KNITTER-SWITCH
SKU: 215516
Price: 6.69 USD
Availability: InStock



Category Push Button Switches & Components Brand KNITTER-SWITCH Condition New

Specifications

Country of Origin	China
Brand	KNITTER-SWITCH
Model	DPWL1CGRR
IP Rating	IP67
Mount Type	Panel
Series	DPWL
Maximum Operating Temperature	85°C
Contact Configuration	SPST
Switch Configuration	On-Off
Minimum Operating Temperature	-30°C
Panel Cutout Size	12.9 mm
Terminal type	Solder
Standards/Approvals	UL, CSA
LED Colour	Red
Switch Operation	Momentary
Actuator Colour	Red
Contact DC Voltage	50V dc
Actuator Style	Button
Switch Contact Current	400mA
Contact AC Voltage	250V ac

Key Features

This switch features a waterproof IP67 rating ensuring reliable operation in harsh environments.
It supports a contact DC voltage of up to 50V and an AC voltage of up to 250V.
The switch has a maximum operating temperature of 85°C and a minimum temperature of -30°C.
The red LED actuator provides a clear visual indication and requires an external resistor for LED current limiting.
The device is long lasting with a mechanical life expectancy of over one million cycles.
Panel mounting with solder terminal type simplifies installation and integration.
The switch complies with UL and CSA standards for safety and quality.
The compact thermoplastic case provides robust protection and durability.

Product Description

KNITTER-SWITCH DPWL1CGRR is an illuminated miniature push button switch designed for panel mounting applications with a 12.9 mm cutout size. It features a momentary switch operation with a single pole single throw (SPST) contact configuration, making it suitable for on-off control functions.

The switch incorporates a bright red LED actuator that improves visibility and operational feedback, particularly in low-light industrial or commercial environments. It is constructed with a thermoplastic case rated IP67, offering waterproof and dustproof protection, enhancing its reliability in environments exposed to moisture or contaminants.

Electrical ratings include a contact DC voltage of 50V and an AC voltage of 250V with a maximum contact current of 400mA. It operates reliably across a wide temperature range from -30°C to 85°C, making it suitable for various industrial, automation, and electrical control panel applications.

Mechanical durability is a key feature, with an expected operational life exceeding one million cycles, providing longevity and reduced maintenance intervals. The switch is designed for solder terminal type connections for easy wiring and installation.

This switch is waterproof with an IP67 rating. Momentary switch operation providing on-off functionality. Red LED actuator requires external resistor to limit current. Durable thermoplastic case construction. Complies with UL and CSA safety standards.

Wide operating temperature range from -30°C to 85°C. Contact rating supports DC 50V and AC 250V voltages. Mechanical life exceeding one million cycles.

Ideal for industrial control panels, automation systems, and electrical equipment requiring reliable miniature push button switches with illumination. The DPWL series by KNITTER-SWITCH embodies robust design and high-performance specifications suited for demanding environments.
