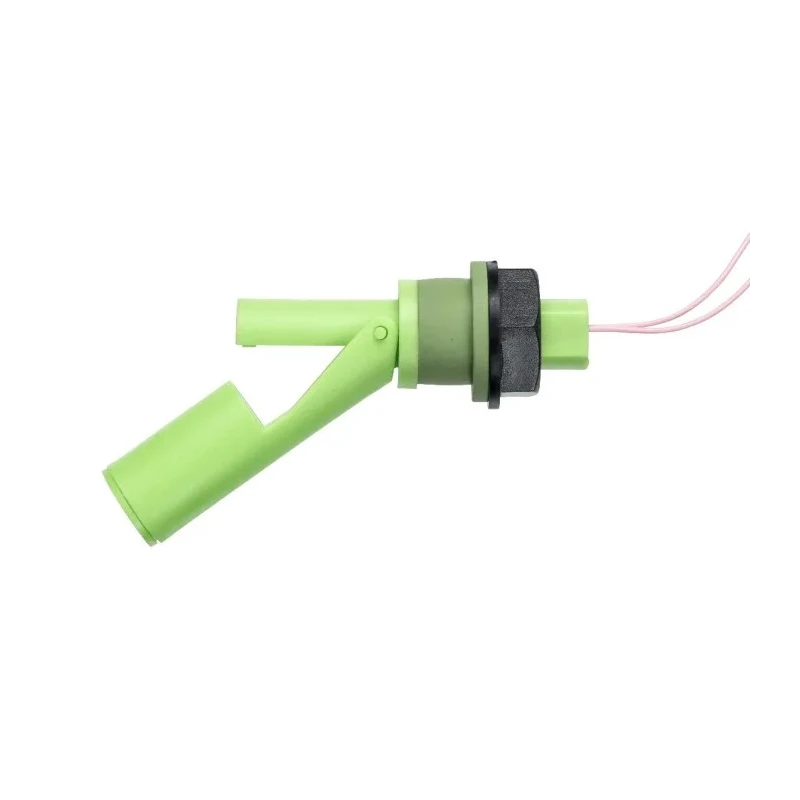

Cynergy3 RSF70 Series Horizontal Viton Float Switch 1 m Cable NO/NC 240 V AC Max 120 V DC Max RSF77Y100GV/RS

Free Delivery in India | Lowest Global Shipping Charges

Cynergy3 RSF70 Series Horizontal Viton Float Switch 1 m Cable NO/NC 240 V AC Max 120 V DC Max RSF77Y100GV/RS

Name: Cynergy3 RSF70 Series Horizontal Viton Float Switch 1 m Cable NO/NC 240 V AC Max 120 V DC Max RSF77Y100GV/RS
Brand: Cynergy3
SKU: 194736
Price: 38.7 USD
Availability: InStock



Category Float Switch Brand Cynergy3 Condition New

Specifications

Country of Origin	China
Brand	Cynergy3
Model	RSF77Y100GV/RS
Cable Length	1m
Mount Type	Horizontal
Housing Material	Polyvinyl Fluoride
Series	RSF70
Maximum Operating Temperature	105°C
Switch output	NO/NC
Minimum Operating Temperature	-10°C
Maximum Current	600mA
Maximum dc Voltage	120V dc
Standards/Approvals	UL File No.E171218
Maximum AC Voltage	240V ac
Gasket Material	Viton

Key Features

Offers horizontal mounting for versatile installation options.
Includes a 1 meter cable for flexible connection.
Constructed with durable polyvinyl fluoride housing for corrosion resistance.
Operates within a wide temperature range from -10°C to 105°C.
Capable of switching up to 240 V AC and 120 V DC with a maximum current of 600 mA.
Features a chemical-resistant Viton gasket to prevent leaks and wear.
Switch output is configurable between normally open and normally closed states.
UL certified with file number E171218 for safety assurance.

Product Description

Cynergy3 RSF77Y100GV/RS Horizontal Viton Float Switch is a precision sensor designed for liquid level measurement in tanks where internal access is limited. Its pivoting actuator, equipped with a magnet and reed switch sensor, responds to changes in the electromagnetic field caused by liquid level variations. This causes the switch contacts to open or close, enabling reliable pump or alarm activation within industrial and commercial systems.

Constructed with a body of polyvinyl fluoride (PVDF), the switch offers excellent corrosion resistance and durability in demanding environments. The Viton gasket provides outstanding chemical resistance, ensuring a leak-proof seal for extended service life. It operates over a broad temperature range of -10°C to 105°C, supporting diverse industrial and laboratory applications.

The included 1 meter cable facilitates flexible and easy installation. The switch output is user-configurable from normally open (NO) to normally closed (NC) by a simple 180° rotation, making it adaptable to various control setups.

Electrical ratings include a maximum AC voltage of 240 V and maximum DC voltage of 120 V, with a maximum current of 600 mA. The product is UL certified under file number E171218 and manufactured in China.

Horizontal mounting float switch for external tank installation. Durable polyvinyl fluoride housing resists corrosion. 1 meter cable length for connectivity flexibility. Wide operating temperature range from -10°C to 105°C.

Configurable NO/NC switch output functionality. Maximum electrical ratings: 240 V AC, 120 V DC, 600 mA current. Viton gasket for chemical and wear resistance. UL certification for quality and safety standard compliance. Ideal for water treatment, sewage control, and industrial automation.

This float switch is suitable for industrial automation, water and wastewater management, HVAC systems, and manufacturing facilities requiring reliable liquid level sensing and control solutions. Browse complete Cynergy3 sensor and Float Switch product lines at EnvMart for comprehensive control gear needs.
