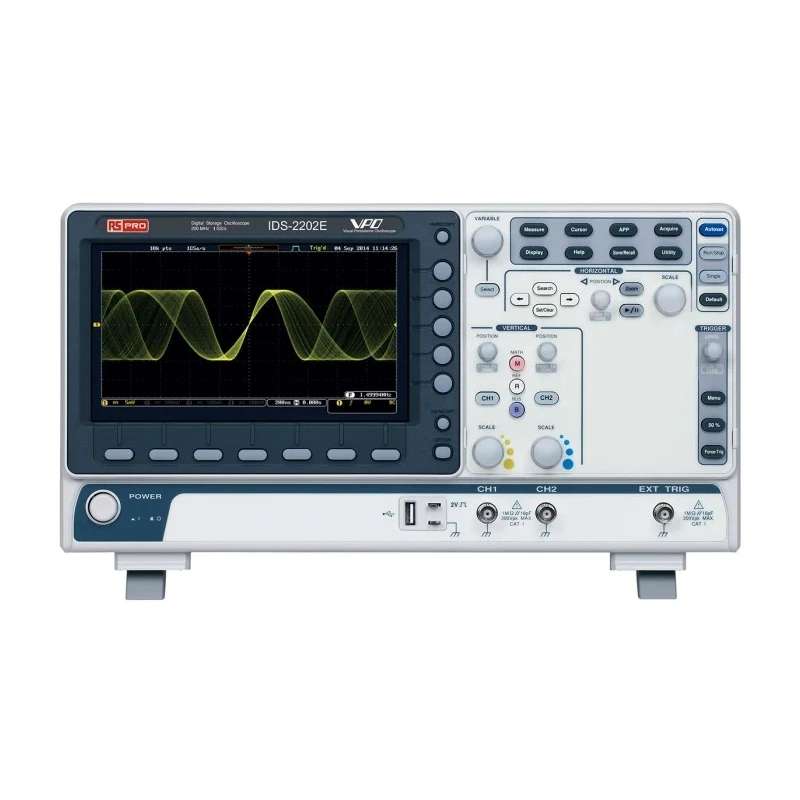

RS PRO 200 MHz Digital Storage Bench Oscilloscope 2 Channels 8 in TFT LCD IDS-2202E 124-1956
Specifications
| Country of Origin | India |
|---|---|
| Display Type | Colour |
| Brand | RS PRO |
| Height | 127.3mm |
| Model | 124-1956 |
| Depth | 127.3mm |
| Width | 208mm |
| Bandwidth | 200MHz |
| Sampling rate | is 1GSa/s |
| Series | RS PRO |
| Screen Size | 8 in |
| Plug Type | EU, UK |
| Number Of Channels | 2 |
| Vertical Resolution | 8 bit |
| Memory Depth | 1Mpts |
| Rise Time | 1.75ns |
| Waveform Refresh Rate | 120000per sec |
| Interface Type | CAN, IIC, LIN, SPI, UART, USB |
| Oscilloscope Type | Bench |
| Minimum Vertical Sensitivity | 1mV/div |
| Standards/Approvals | CE, EN 61340 |
| Safety Category Level | CAT I, CAT II |
| Safety Category Voltage | 300V |
| Oscilloscope Form | Digital Storage |
| Minimum Time Base | 1ns/div |
| Maximum Vertical Sensitivity | 10V/div |
| Maximum Time Base | 100s/div |
| ANSI/ESD S20.20 | 2014 |
| BS EN 61340-5-1 | 2007 |
| ISO-TECH 3252 GDS-3000 Series, 250MHz Digital Storage OscilloscopeBrand | ISO-TECH |
Key Features
- The oscilloscope features a bandwidth of 200 MHz suitable for various electronic diagnostics.
- Dual analog channels facilitate comprehensive signal analysis and extension options.
- Equipped with Visual Persistence Oscilloscope technology for enhanced waveform display.
- Includes datalog function and digital filter capabilities for long-term waveform observation.
- Supports serial bus trigger and decoding functions including I²C, SPI, UART, CAN, and LIN.
- Memory depth of 1Mpts and a sampling rate of 1 GSa/s enhance data accuracy and capture.
- Waveform refresh rate reaches 120,000 waveforms per second providing real-time signal updates.
- Suitable for applications in audio/video equipment testing, research and development, and manufacturing testing.
Product Description

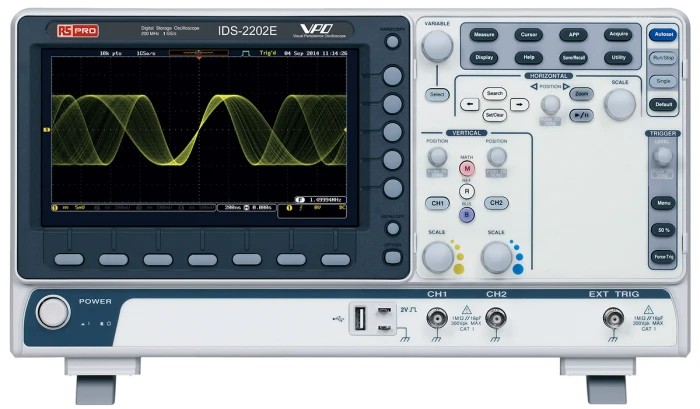

RS PRO IDS-2202E is a high-performance 200 MHz digital storage bench oscilloscope designed for precision electronic measurement and analysis. Featuring 2 analog channels and an 8-inch 800x480 TFT LCD colour display, this oscilloscope delivers clear and detailed visualization of complex and random waveforms, enhancing user experience in industrial, manufacturing, and laboratory environments.
The device incorporates advanced Visual Persistence Oscilloscope (VPO) technology that uses high-density IC hardware acceleration to render all acquired data signals accurately in real-time. It offers a broad bandwidth of 200 MHz with a fast rise time of 1.75 ns, making it ideal for high-speed signal testing scenarios.
Memory depth of 1M points and a high sampling rate of 1 GSa/s ensure detailed and precise signal capture, while the oscilloscope's waveform refresh rate of 120,000 waveforms per second allows for seamless real-time analysis. The digital filter and datalog functions extend its usability for long-term observations and detailed signal filtering.
The IDS-2202E supports multiple serial bus trigger and decoding protocols including I²C, SPI, UART, CAN, and LIN, making it versatile for automotive, industrial, and embedded systems debugging. Its compact dimensions (208mm width, 127.3mm height, 127.3mm depth) and EU/UK plug compatibility enhance user convenience.
This oscilloscope finds applications in audio and video recording equipment testing, research and development, manufacturing quality control, radio broadcasting signal testing, and in-circuit debugging. The package includes switchable passive probes (one per channel), a quick start guide, user manual on CD, and power cord. PC software (OpenWave) and drivers for USB and LabView are freely downloadable to extend connectivity and usability.
The oscilloscope features a bandwidth of 200 MHz suitable for diverse signal measurements. Two analog channels support simultaneous waveform capture and analysis. Visual Persistence Oscilloscope (VPO) technology enhances waveform visualization.
Includes advanced digital filtering and datalog capabilities for extensive signal study. Supported communication protocols include I²C, SPI, UART, CAN, and LIN for protocol debugging. Memory depth of 1M points and high sampling rate provide superior resolution.
Waveform refresh rate of up to 120,000 waveforms per second ensures accurate real-time updates. Compact size with CE and EN 61340 approvals for safety compliance. Ideal for industrial, laboratory, automotive, and manufacturing testing applications.
Explore EnvMart's range of professional measuring instruments and Oscilloscopes to meet rigorous industrial standards and enhance your technical diagnostics.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The oscilloscope features a bandwidth of 200 MHz, suitable for various electronic diagnostics and high-speed signal testing.
This model is equipped with 2 analog channels, allowing for simultaneous waveform capture and analysis.
It has a sampling rate of 1 GSa/s, enabling detailed and precise signal capture.
The oscilloscope features a memory depth of 1M points, which enhances data accuracy and capture capabilities.
The waveform refresh rate reaches up to 120,000 waveforms per second, providing real-time signal updates.
This oscilloscope supports multiple serial bus trigger and decoding protocols including I²C, SPI, UART, CAN, and LIN.
The rise time is 1.75 ns, making it suitable for high-speed signal testing scenarios.
The oscilloscope has compact dimensions of 208 mm in width, 127.3 mm in height, and 127.3 mm in depth.
It features an 8-inch colour TFT LCD display with a resolution of 800x480, providing clear visualization of waveforms.
The device complies with CE and EN 61340 safety standards, ensuring it meets essential safety requirements.
The package includes switchable passive probes (one per channel), a quick start guide, a user manual on CD, and a power cord.
It is suitable for applications in audio/video equipment testing, research and development, manufacturing testing, and in-circuit debugging.
