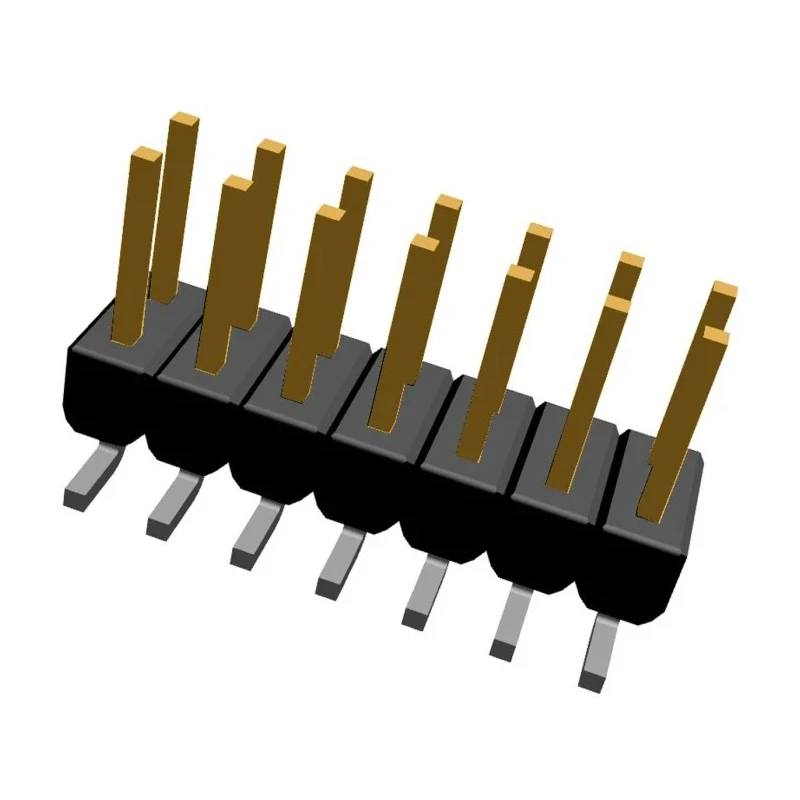

TE Connectivity AMPMODU MOD II Series Straight Surface Pin Header 14 Contacts 2.54 mm Pitch 2 Row Unshrouded 1241050-7
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Surface |
| Housing Material | Glass Filled Polycyclohexylenedimethylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | AMPMODU MOD II |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 14 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Mating Pin Length | 5.8mm |
Key Features
- The pins are unshrouded and have a straight orientation for versatile mounting.
- Constructed with glass filled polycyclohexylenedimethylene terephthalate housing for enhanced durability.
- Contact material is high-quality phosphor bronze plated with gold for superior conductivity.
- Rated for 3A current with operating temperature range from -65°C to 105°C.
- Termination type is solder with a mating pin length of 5.8mm for stable connections.
- Surface mount type ensures easy installation onto PCBs.
- The 2-row design with 2.54mm row pitch allows compact and efficient circuit layouts.
Product Description
TE Connectivity 1241050-7 AMPMODU MOD II Series Straight Surface Pin Header provides a high-quality, unshrouded double row pin header designed for efficient board-to-board and wire-to-board connections. Featuring 14 contacts with a standard 2.54 mm pitch and 2 rows, it delivers reliable signal transmission in various industrial and electronic applications.
The header utilizes a glass filled polycyclohexylenedimethylene terephthalate housing, which ensures mechanical strength and thermal stability. The contact pins are made from phosphor bronze with gold plating that offers excellent conductivity and resistance to corrosion, making it suitable for demanding environments.
Operating reliably across a temperature range from -65°C to 105°C, this pin header supports up to 3A current, making it suitable for power and signal applications. The solder termination and straight orientation simplify assembly and integration onto printed circuit boards.
The compact 2-row configuration with a row pitch of 2.54 mm saves PCB space and enables versatile design options. The 5.8 mm mating pin length ensures secure and consistent mating with corresponding connectors.
Applications include automotive controls, industrial equipment, telecommunications, computers, medical instruments, and storage devices. The AMPMODU MOD II interconnect system is recognized for its versatility, reliability, and economical design suited for automation and control systems.
The pins can be snapped to the required length to accommodate various board layouts. Surface mount design enables efficient soldering processes saving production time. Unshrouded pins allow ease of inspection and accessibility.
Robust construction supports long-term durability under mechanical stress. Compatible with a wide range of industrial and commercial electronic assemblies. Explore more in the PCB Pin Header category for additional TE Connectivity connectors and compatible PCB components to enhance your electronic assemblies.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It is rated for a current of 3A, making it suitable for power and signal applications.
The operating temperature range is from -65°C to 105°C, allowing it to function in various environmental conditions.
This model uses solder termination, which simplifies assembly and integration onto printed circuit boards.
It features 14 contacts, arranged in a 2-row configuration.
The row pitch is 2.54 mm, which allows for compact circuit layouts.
The housing is made from glass filled polycyclohexylenedimethylene terephthalate, and the contact pins are made from phosphor bronze plated with gold for enhanced conductivity.
The mating pin length is 5.8 mm, ensuring stable connections with corresponding connectors.
This model is unshrouded, allowing for ease of inspection and accessibility during assembly.
It is suitable for various applications including automotive controls, industrial equipment, telecommunications, computers, medical instruments, and storage devices.
The orientation of this pin header is straight, which facilitates versatile mounting options.
The country of origin for this pin header is India.
It supports board-to-board and wire-to-board connections, making it versatile for different electronic assemblies.
