Littelfuse Resettable Fuse 0.2 A, 30V dc Mini SMDC Series MINI SMDC020F-2 MINISMDC020F-2

Littelfuse MINISMDC020F-2 is a 0.2 A resettable fuse designed for low voltage circuit protection applications, rated at 30V dc and featuring a fast trip time of 0.02 seconds. Its miniSMDC series surface-mount packaging enables compact and efficient assembly in modern electronic circuits.

The device offers robust protection by switching rapidly from low to high resistance under overload or short circuit, with maintenance-free automatic reset capabilities that support thousands of cycles without need for replacement.

Constructed with matt tin terminals, it ensures excellent soldering performance and circuit reliability. The fuse holds a current rating of 10 A with a hold current of 0.2 A and power dissipation of 0.8 W, making it suitable for a wide range of electronic equipment including computers, automotive electronics, multimedia devices, and instrumentation.

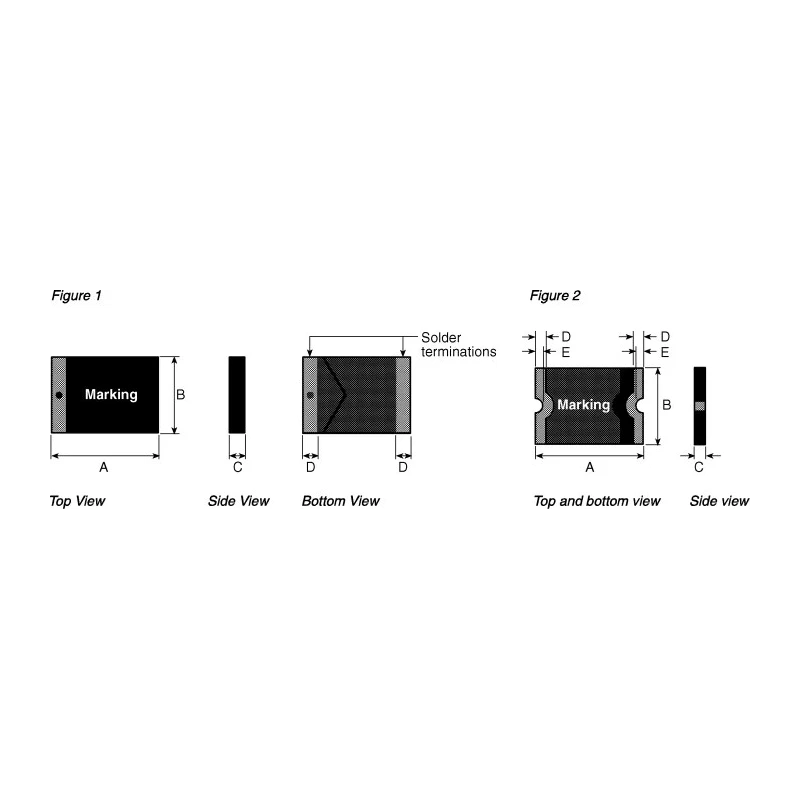

Littelfuse miniSMDC series complies with RoHS, UL, CSA, and TUV standards and is halogen-free, ensuring both regulatory compliance and environmental safety. Its compact size with dimensions 4.73 mm length, 3.41 mm width, and 0.89 mm height makes it ideal for use in high density circuit board layouts.

This resettable fuse is commonly used in applications such as security systems, power supplies, power switching devices, automotive and medical equipment, instrumentation and control systems, computers and peripherals, and telecommunications equipment.

Compact miniSMDC surface-mount design for space-efficient circuit protection. Trip current of 400mA ensures fast response to electrical overload. Rated for 10 A current carrying capacity and 0.8W power dissipation. Operates over a temperature range with maximum 85°C operating temperature.

Matt tin terminal material provides reliable solderability and connectivity. Halogen-free and RoHS compliant for environmental safety. Maintenance-free automatic reset for thousands of cycles without replacement. Suitable for computer, consumer, automotive, and multimedia electronics applications.

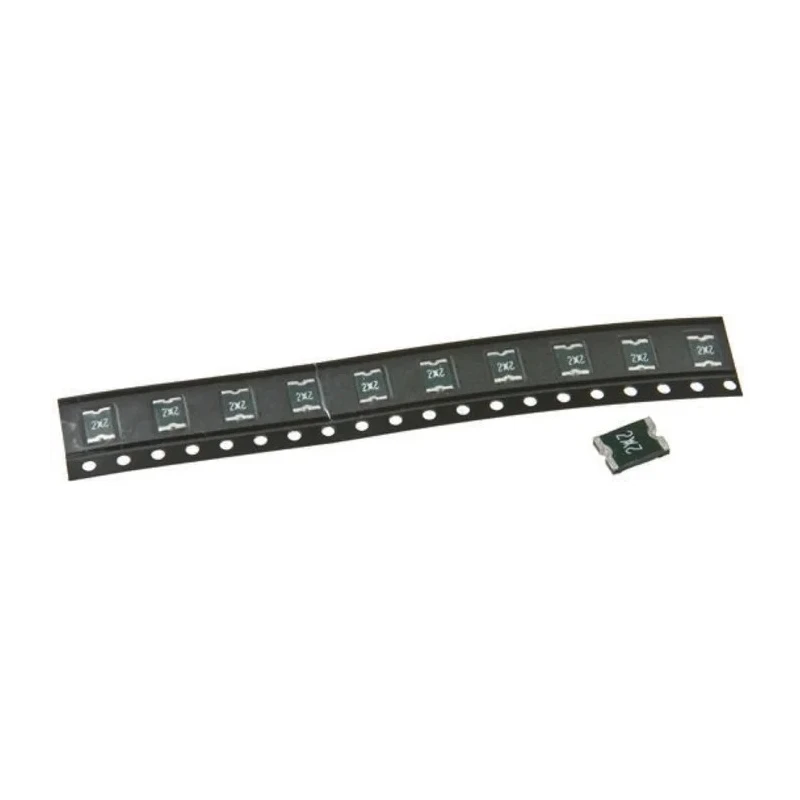

Packaged on a reel for efficient automated circuit assembly processes. Explore additional Littelfuse Resettable Fuses and advanced circuit protection devices on EnvMart for diverse industrial and commercial electronics applications.
