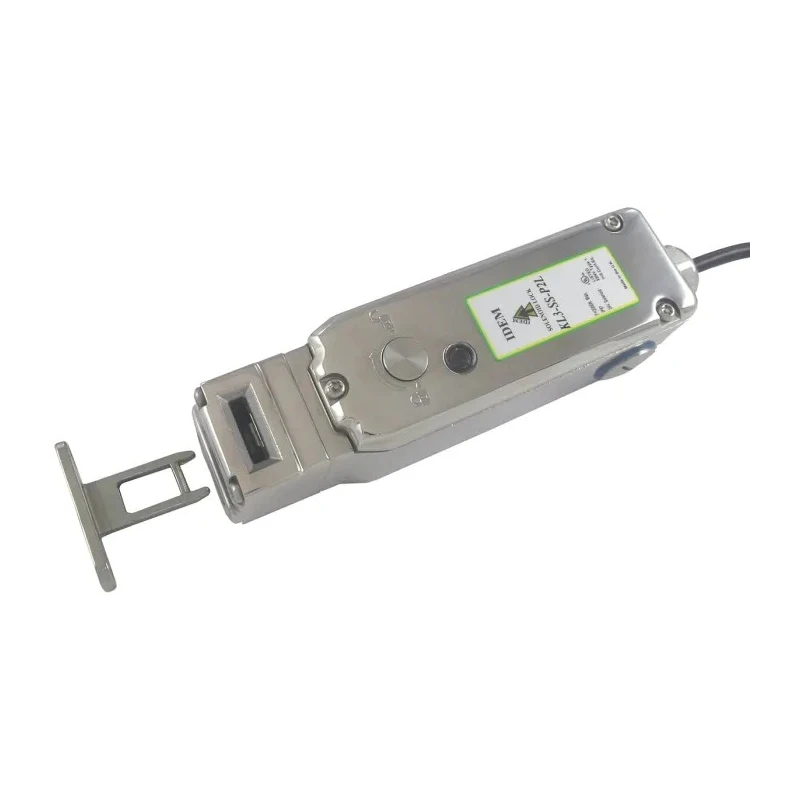

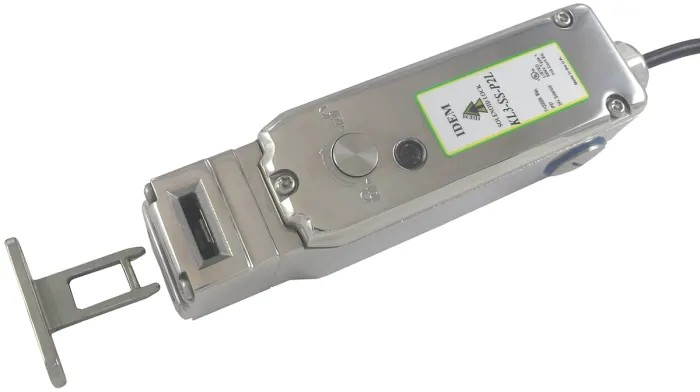

IDEM KL3-SS-P2L Series Stainless Steel Solenoid Interlock Switch Power to Lock 24V DC 1.2A KL3-SS-P2L

IDEM KL3-SS-P2L Series Solenoid Interlock Switch Power to Lock is a high-quality safety device engineered to secure sliding or hinged machine guards effectively until potential hazards are eliminated. This unit is constructed from stainless steel 316, providing exceptional durability and corrosion resistance in demanding industrial environments.

The switch features a tongue-operated mechanism with positively operated switching contacts. It is equipped with 1 normally open and 1 normally closed safety contact, supplemented by 2 auxiliary contacts, permitting sophisticated diagnostics and functional safety monitoring. Screw-type terminals and M20 conduit entry provide secure, straightforward electrical connections.

Operating at 24V DC with a contact current of 1.2A, the device supports power-to-lock functionality. Its rugged design includes IP67 and IP69K ingress protection ratings, rendering it suitable for use in washdown areas and harsh conditions commonly found in Food Processing, Pharmaceutical, Packaging, and Petrochemical sectors.

The solenoid interlock also offers a high holding force of 2000 N, maintaining guard closure until it is safe to open. The rotatable head allows eight actuator entry positions, improving installation flexibility. Not supplied with an actuator, the switch is compatible with standard, flat, heavy-duty flexible, and hygienic actuators available separately.

Stainless steel 316 body and head for corrosion resistance. 1 NO/1 NC safety contacts with 2 auxiliary contacts enhance safety diagnostics. Power to lock mechanism with 24V DC supply voltage and 1.2A contact current. Rated IP67 and IP69K for protection against dust and high-pressure water jets.

Rotatable head with eight actuator entry positions and 30 mm fixing centres. High holding force of 2000 N ensures secure guard locking. Complies with IEC 60947-5-1 and ISO 13849-1 for industrial safety standards. Applications include Food Processing, Pharmaceutical, Packaging, and Petrochemical industries.

Not supplied with actuator; compatible actuators sold separately.

This Solenoid Interlock Switch is widely used in industrial automation and safety applications to prevent access to hazardous areas unless safe conditions are confirmed. It can be integrated with safety timers to delay guard opening and with dual-channel safety relays to achieve up to Category 4 PLe safety performance or SIL3 rating.

Explore the extensive range of safety interlock switches and components on EnvMart for high functional safety and industrial protection solutions.
