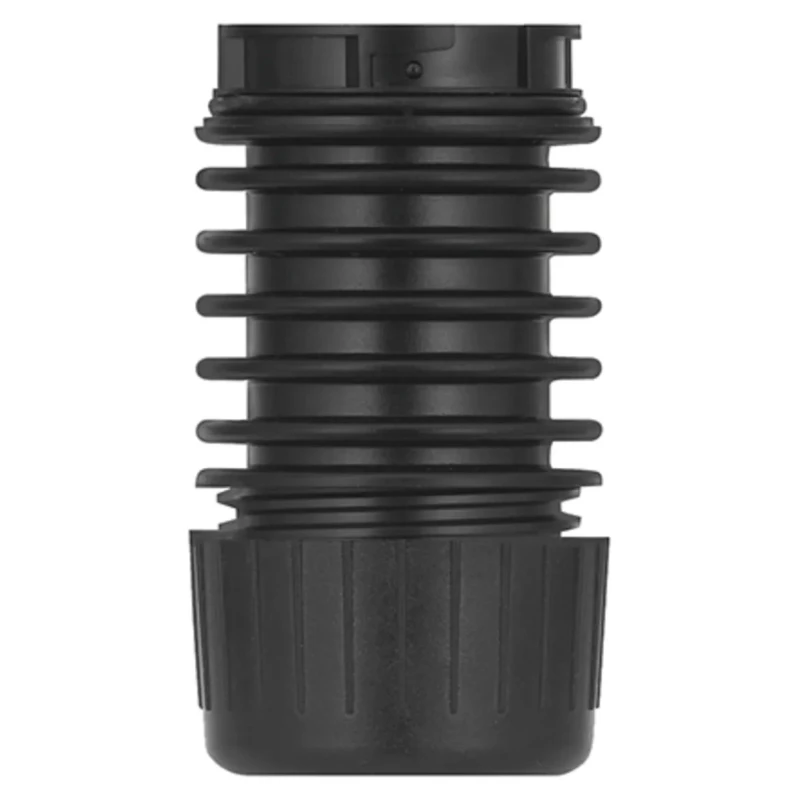

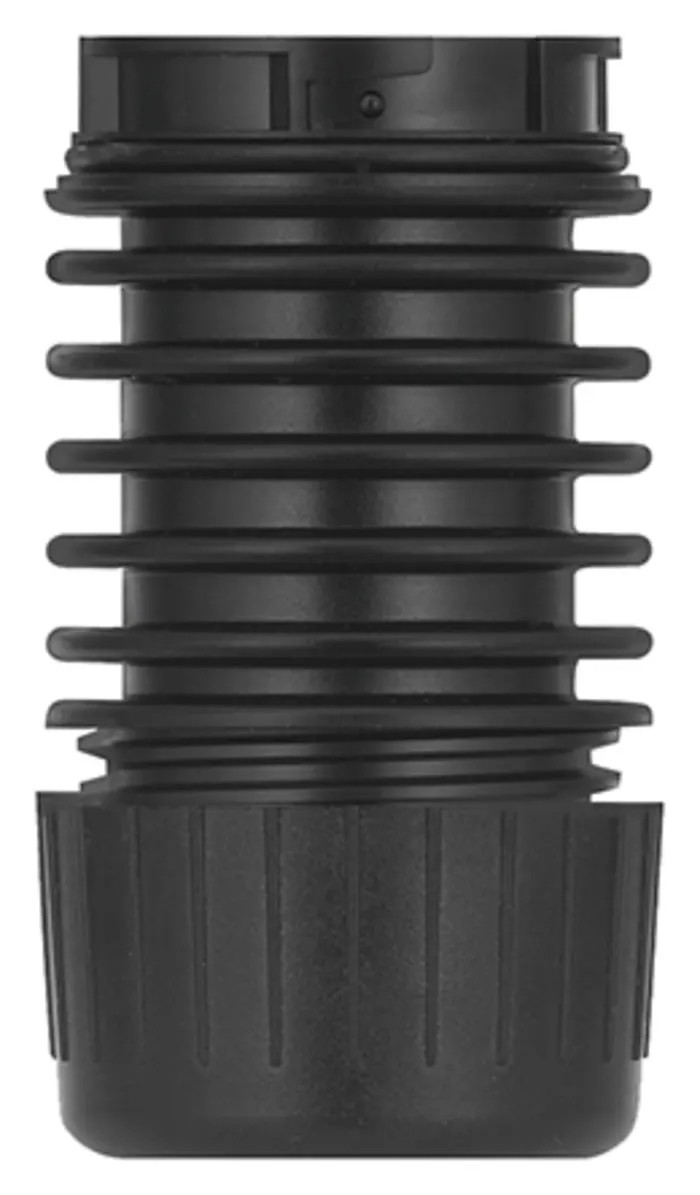

Werma KombiSIGN 40 Series Mounting Adapter 24V AC/DC, Electronic Sounder, IP69K IP Rating IP69K

Name: Werma KombiSIGN 40 Series Mounting Adapter 24V AC/DC, Electronic Sounder, IP69K IP Rating IP69K
Brand: WERMA
SKU: 192072



Category Signal Tower Components Brand WERMA Condition New

Specifications

Country of Origin	India
Brand	Werma
Height	80mm
Model	IP69K
IP Rating	IP69K
Mount Type	Base
Series	KombiSIGN 40
Maximum Operating Temperature	60°C
Current Type	AC/DC
Current consumption	80mA
Minimum Operating Temperature	-30°C
Base Diameter	40mm
Terminal type	Spring Terminal
Component Type	Tube Mount Adapter
Maximum Supply Voltage	24V
Housing Colour	Black
Minimum Sound Level	85dB
Sounder Type	Electronic
Maximum Sound Level	95dB

Key Features

Constructed from polycarbonate material for resistance to impact and abrasion.
Lightweight design weighing only 46 grams to minimize strain on signal towers.
Operates with a current consumption of 80mA supporting AC/DC currents up to 24V.
Features electronic sounder with a sound level range from 85dB to 95dB.
Wide operating temperature range from -30°C to +60°C suitable for harsh environments.
Rated with IP69K protection against dust and high-pressure water jets.
Mount type is base with spring terminal connections for secure installation.
Compatible with KombiSIGN 40 series tubes, especially 84mm tube extensions.

Product Description

Werma IP69K Mounting Adapter 24V AC/DC is a tube mount adapter from the KombiSIGN 40 Series engineered for reliable and robust industrial signalling solutions. With an 80mm height and compact base diameter of 40mm, this adapter provides a stable mounting interface for signal towers, allowing up to five modules to be attached for customized configuration.

Manufactured from impact and abrasion-resistant polycarbonate, this component is extremely durable while maintaining a lightweight form factor of 46 grams, greatly reducing mechanical load on towers. The adapter supports both AC and DC current types with a consumption of 80mA and is designed for maximum supply voltages up to 24V.

Its electronic sounder provides a minimum sound level of 85dB and can reach a maximum of 95dB, ensuring audible alerts in demanding environments. The operating temperature range from -30°C to 60°C allows use across varying industrial climates without performance degradation. The device carries an IP69K rating that guarantees protection against dust ingress and high-pressure water jets, making it suitable for washing and harsh process environments.

Installation is simplified by its base mount type and spring terminal design, allowing secure and easy attachment. It is especially compatible with the 84mm tubes within the KombiSIGN 40 series, facilitating flexible tower height extension.

Typical industrial applications include automotive manufacturing, loading bay operations, and automated assembly lines where reliable visual and audible signalling is critical for safety and process control.

Constructed from polycarbonate material for impact and abrasion resistance. Lightweight design minimizes strain at just 46 grams. Compatible with up to five KombiSIGN 40 modules for tailored signalling. Electronic sounder features sound levels between 85dB and 95dB.

Supports 24V AC/DC voltage with 80mA current consumption. Wide operating temperature range of -30°C to +60°C. IP69K rated for dust and high-pressure water protection. Base mount type with spring terminal for secure installation.

Housing colored black for industrial conformity. Suitable for automotive, loading bays, and automated assembly line applications. Explore more automation and control gear products from Werma and other leading brands at EnvMart, optimized for industrial automation and signalling solutions.
