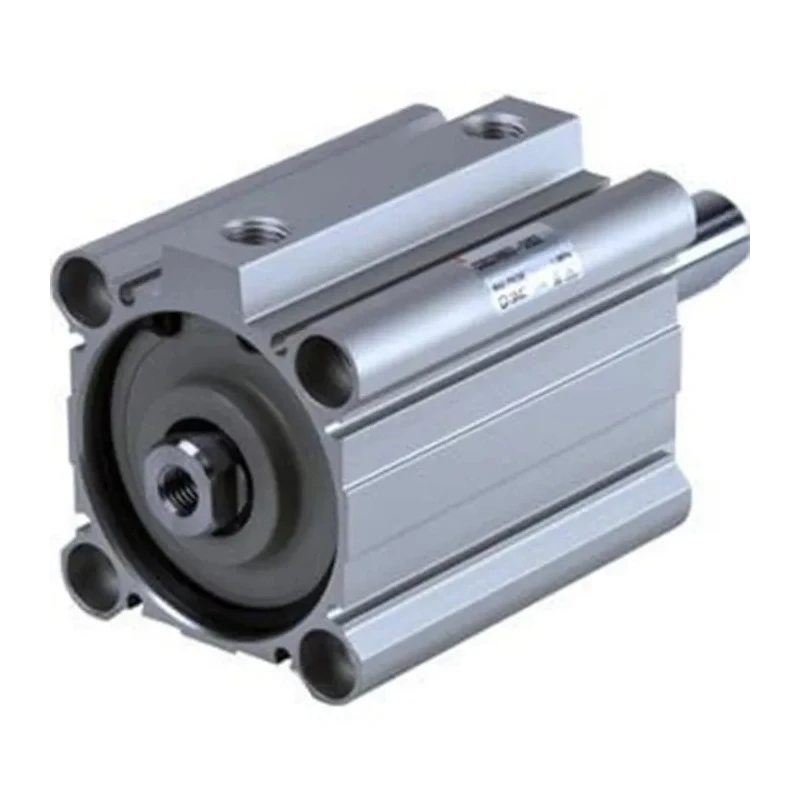

SMC 10 mm Double Acting Cylinder Aluminium Alloy Body Through Hole Mount CQ2 Series CQ2WB20-10DCM

Free Delivery in India | Lowest Global Shipping Charges

SMC 10 mm Double Acting Cylinder Aluminium Alloy Body Through Hole Mount CQ2 Series CQ2WB20-10DCM



Category Pneumatic Piston Rod Cylinders Brand SMC Condition New

Specifications

Country of Origin	India
Brand	SMC
Body Material	Aluminium Alloy
Model	CQ2WB20-10DCM
Mount Type	Through Hole
Series	CQ2
Maximum Operating Temperature	70°C
Stroke Length	10mm
Rod Type	Single
Action Type	Double Acting
Maximum Piston Speed	500 mm/s
Piston Rod Gender	Male
Piston Rod Thread Standard	Metric

Key Features

Compact double acting cylinder optimized for space saving in machines.
Body made from lightweight aluminium alloy to reduce overall weight.
Through hole mount type provides ease of installation and versatility.
Single rod with male piston rod gender and metric thread standard.
Maximum piston speed of 500 mm/s enhances operational efficiency.
Operates reliably up to maximum temperature of 70°C.
Designed for industrial pneumatic piston rod cylinder use including automation equipment.
Does not carry certifications but meets standard pneumatic cylinder design requirements.

Product Description

SMC CQ2WB20-10DCM Double Acting Cylinder from the CQ2 Series offers a compact, lightweight solution for pneumatic actuation with a 10 mm stroke length. The cylinder features an aluminium alloy body designed to minimize machine weight while maintaining durability, especially suitable for industrial automation and fluid power applications.

This pneumatic piston rod cylinder is built with a through hole mount type allowing flexible and straightforward installation options in machinery setups. The single rod is male with a metric threaded rod standard, ensuring compatibility with common industrial fixtures and extensions.

Its double acting action type allows precise control of motion in both extend and retract cycles, achieving a maximum piston speed of up to 500 mm per second. Operable at temperatures up to 70 degrees Celsius, this cylinder fits a wide range of manufacturing and processing environments.

SMC has optimized this CQ2 series cylinder for improved auto-switch mounting possibilities, facilitating easier integration with monitoring sensors, and overall supports productivity enhancement by reducing machine weight by approximately 5-13% depending on the model.

Compact double acting cylinder optimized for space saving in machines. Body made from lightweight aluminium alloy to reduce overall weight. Through hole mount type provides ease of installation and versatility. Single rod with male piston rod gender and metric thread standard.

Maximum piston speed of 500 mm/s enhances operational efficiency. Operates reliably up to maximum temperature of 70°C. Designed for industrial pneumatic piston rod cylinder use including automation equipment. Does not carry certifications but meets standard pneumatic cylinder design requirements.

This SMC CQ2WB20-10DCM pneumatic cylinder is ideal for various industrial sectors such as manufacturing automation, packaging, handling systems, and other pneumatic-driven machinery. It helps save space and machine weight while enhancing productivity and reliability.
