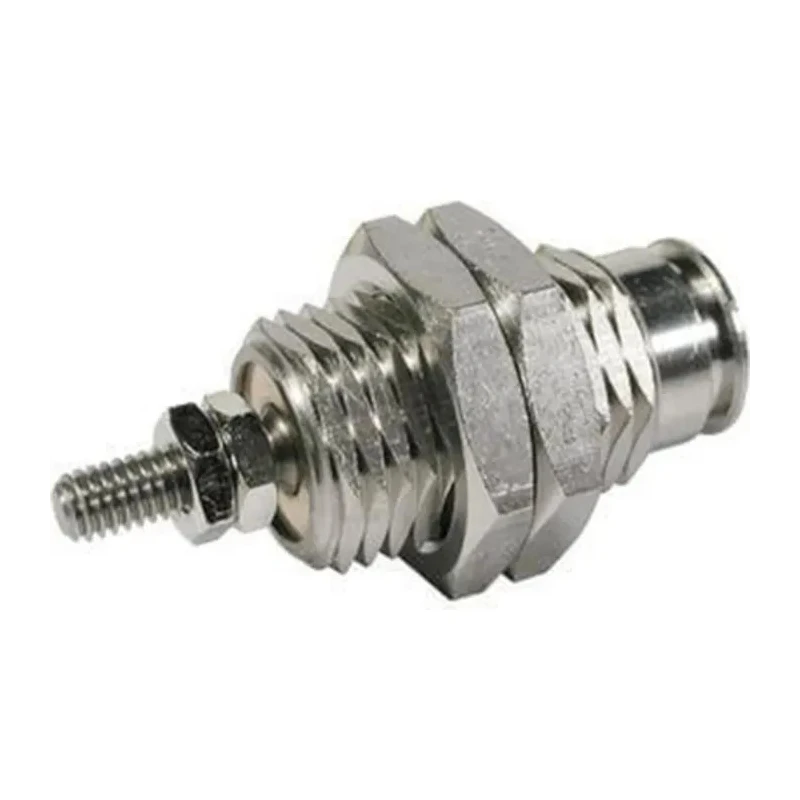

SMC Pneumatic Cylinder CJP Series Single Acting Panel Mount Brass Body 5mm Stroke Spring Return Rod CJPB15-5H4Z
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | SMC |
| Body Material | Brass |
| Model | CJPB15-5H4Z |
| Mount Type | Panel |
| Series | CJP |
| Maximum Operating Temperature | 70°C |
| Stroke Length | 5mm |
| Rod Type | Spring Return |
| Action Type | Single Acting |
| Piston Rod Thread Standard | Metric |
Key Features
- This pneumatic cylinder features a compact and lightweight design for use in precise positioning applications.
- The cylinder uses a panel mount for easy installation and stable mounting.
- The brass body ensures durability and corrosion resistance in industrial environments.
- Equipped with a spring return rod, it offers reliable single acting operation.
- Maximum operating temperature is 70 degrees Celsius, suitable for varied industrial settings.
- The piston rod thread standard is metric for compatibility with standard fittings.
- Internal rubber bumpers reduce operational noise and increase service life.
- Ideal for clamping, ejecting, and positioning small components in manufacturing and automation.
Product Description
SMC CJPB15-5H4Z is a single acting pneumatic cylinder from the CJP series designed for precision linear motion applications. It features a compact design with a brass body for enhanced durability and corrosion resistance. The panel mount type allows for straightforward installation in various industrial setups.
The cylinder provides a 5mm stroke length and uses a spring return rod, suitable for tasks requiring reliable return motion without external power. The piston rod uses metric threads to fit standard pneumatic fittings, ensuring easy integration.
Operating reliably up to 70°C, this pneumatic cylinder is suitable for HVAC, manufacturing automation, fluid power systems, and other engineering applications. Internal rubber bumpers impart quieter operation and reduce wear.
Manufactured in Japan, the product meets stringent quality checks although it has no listed specific certifications or standards approvals. Solid state auto-switches are mountable for position sensing if needed.
This pneumatic piston rod cylinder is ideal for industrial use cases including positioning, clamping, ejecting small parts, and any application requiring precision compact pneumatic actuation.
This pneumatic cylinder features a compact and lightweight design for use in precise positioning applications. The cylinder uses a panel mount for easy installation and stable mounting. The brass body ensures durability and corrosion resistance in industrial environments.
Equipped with a spring return rod, it offers reliable single acting operation. Maximum operating temperature is 70 degrees Celsius, suitable for varied industrial settings. The piston rod thread standard is metric for compatibility with standard fittings.
Internal rubber bumpers reduce operational noise and increase service life. Ideal for clamping, ejecting, and positioning small components in manufacturing and automation. Designed and manufactured in Japan ensuring high quality standards.
Explore the full range of pneumatic cylinders and actuators at EnvMart for your industrial pneumatic automation needs.
Explore more products in our Pneumatic Piston Rod Cylinders category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The stroke length of this pneumatic cylinder is 5mm.
This model features a panel mount type for easy installation and stable mounting.
The maximum operating temperature for the CJPB15-5H4Z is 70°C.
It provides single acting operation with a spring return rod.
The body of this pneumatic cylinder is made of brass, ensuring durability and corrosion resistance.
The piston rod uses a metric thread standard for compatibility with standard fittings.
This pneumatic cylinder is manufactured in Japan.
It is suitable for clamping, ejecting, and positioning small components in manufacturing and automation.
Yes, it is equipped with internal rubber bumpers that reduce operational noise and increase service life.
Yes, solid state auto-switches are mountable for position sensing if needed.
This model belongs to the CJP series of pneumatic cylinders.
The weight of this model is not specified in the provided data.
