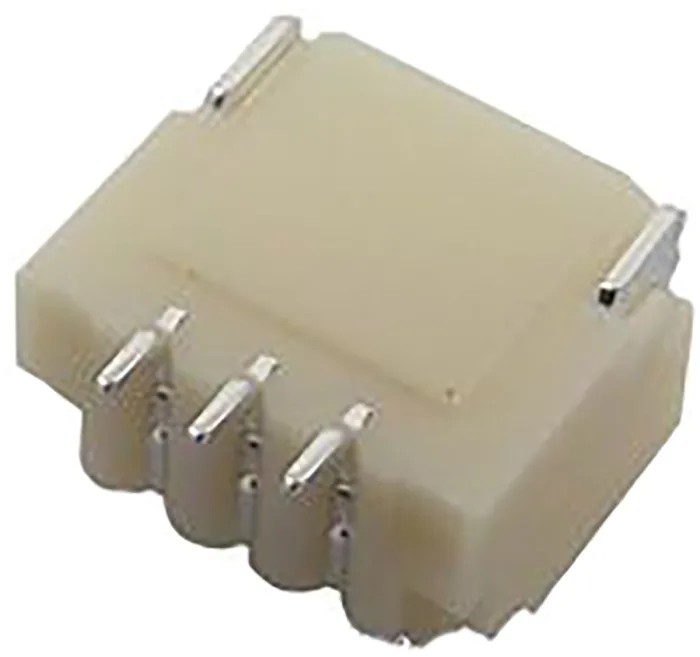

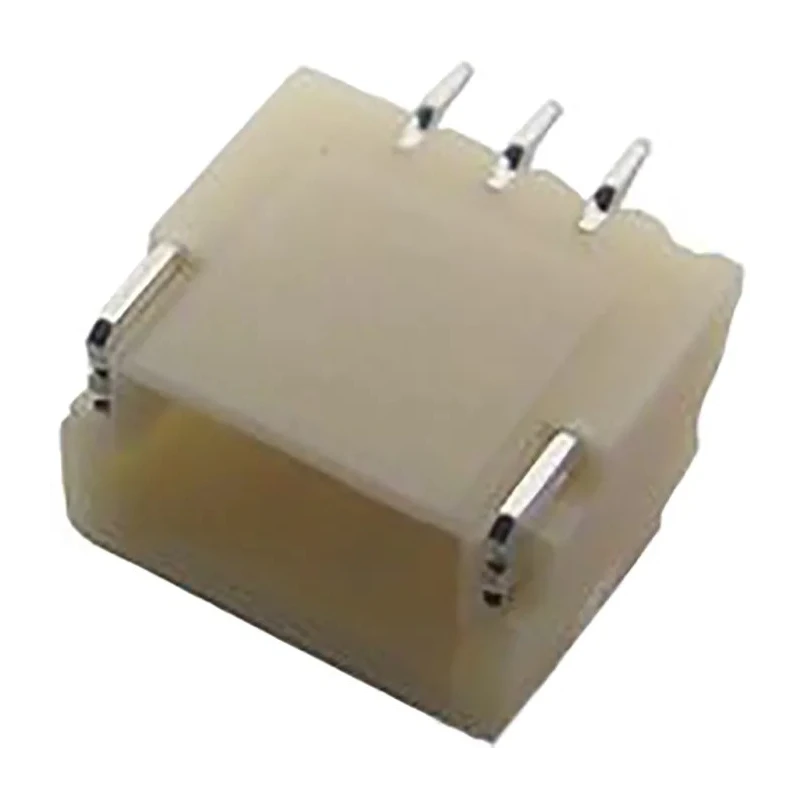

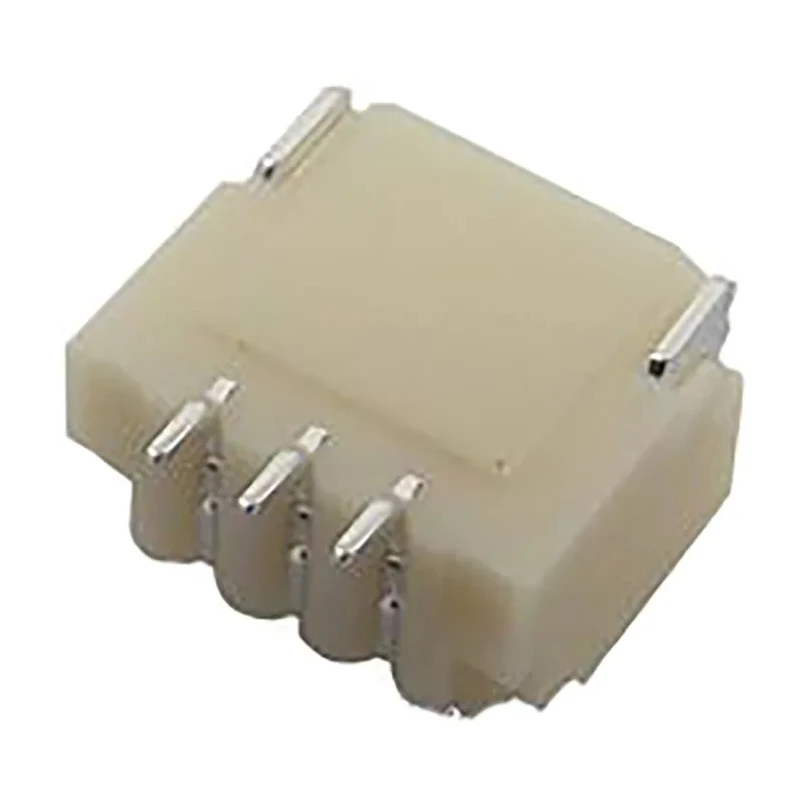

JST Right Angle Surface PCB Header, 3 Contacts, 1 mm Pitch, 1 Row, Shrouded SM03B-SRSS-TB(LFSN)

Free Delivery in India | Lowest Global Shipping Charges

JST Right Angle Surface PCB Header, 3 Contacts, 1 mm Pitch, 1 Row, Shrouded SM03B-SRSS-TB(LFSN)



Category PCB Headers Brand JST Condition New

Specifications

Country of Origin	China
Voltage	50V
Brand	JST
Orientation	Right Angle
Current	1A
Model	SM03B-SRSS-TB(LFSN)
Mount Type	Surface
Housing Material	Polyamide
Contact Material	Copper Alloy
Series	SH
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Number of Rows	1
Pitch	1mm
Contact Plating	Tin
Number of Contacts	3
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Connector,PCB,side entry,1mm pitch,3 wayBrand	JST

Key Features

Compact 1 mm pitch for high-density PCB applications.
Shrouded design provides secure, reliable mating with connectors.
Right angle orientation with surface mount technology.
Constructed with durable polyamide housing for mechanical strength.
Copper alloy contacts plated with tin for corrosion resistance.
Rated current of 1 Amp and voltage up to 50 Volts.
Designed for temperatures ranging from -25°C to 85°C.
Male contact gender with solder termination type for easy PCB assembly.

Product Description

JST SM03B-SRSS-TB(LFSN) is a right angle surface mount PCB header connector designed for electronic assemblies requiring compact wire-to-board interconnections. Featuring a 1 mm pitch and 3 male contacts arranged in a single shrouded row, it provides secure and reliable connection with low-profile design suitable for space-constrained layouts.

The polyamide housing offers robustness and stable mechanical support, while the copper alloy contact material with tin plating ensures excellent electrical performance and corrosion resistance. With a current rating of 1 Amp and voltage rating of 50 Volts, this connector operates efficiently within a temperature range of -25°C to 85°C.

This right angle SMT header includes solder termination and is specifically designed for side entry applications, providing reliable mounting and connection on PCBs. It mates with compatible crimp terminal housings, facilitating easy integration in various industrial, consumer electronics, and commercial equipment.

The connector is unshrouded to protect the contacts during insertion and removal cycles, enhancing connector longevity. Its compact dimensions and precise pitch make it suited for high-density electronics, robotics, automation systems, telecommunications, and instrumentation equipment.

Compact 1 mm pitch for effective utilization of PCB space. Shrouded housing to prevent misalignment and protect contacts. Right angle orientation suits wire routing and mechanical constraints. Polyamide housing material ensures durability and insulation.

Tinned copper alloy contacts deliver reliable conductivity. Operating temperature range appropriate for diverse industrial environments. 1 Amp current rating for moderate power applications. Solder termination allows easy assembly and soldering.

Wire-to-board connection type for versatile use cases.

This JST SH Series right angle surface PCB header is ideal for applications requiring compact, secure, and efficient connectors on printed circuit boards. Explore similar PCB Headers and electronic components on EnvMart for further integration options.
