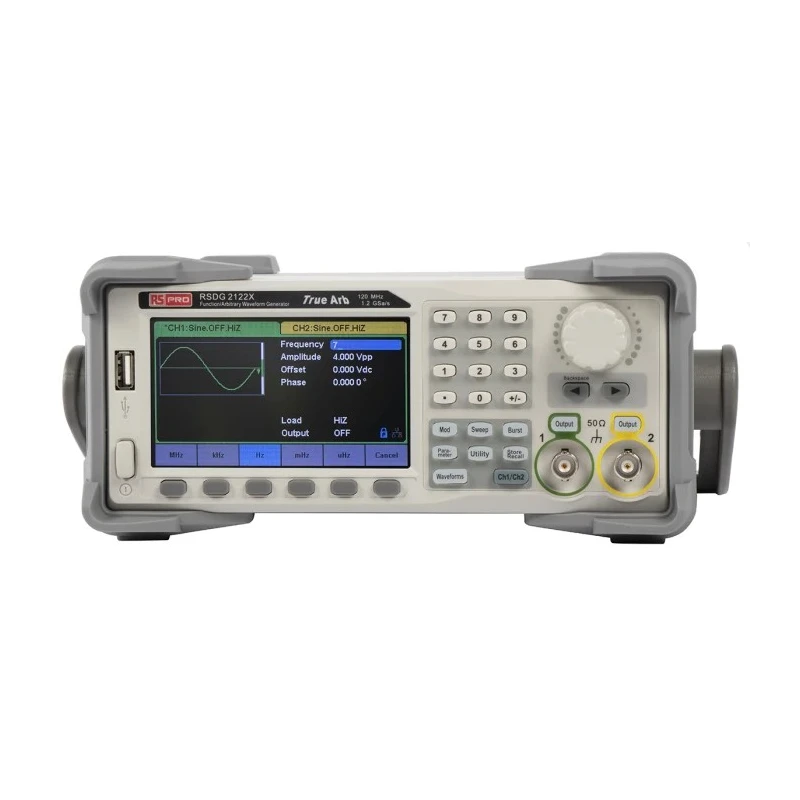

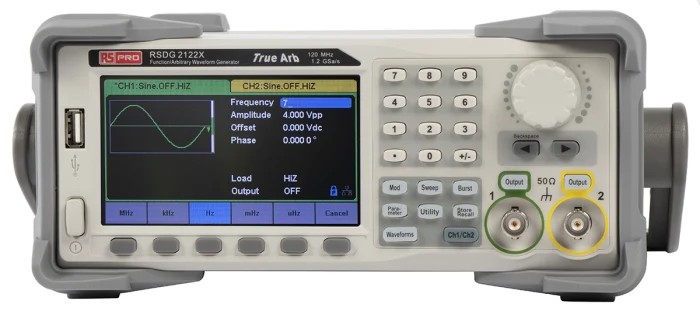

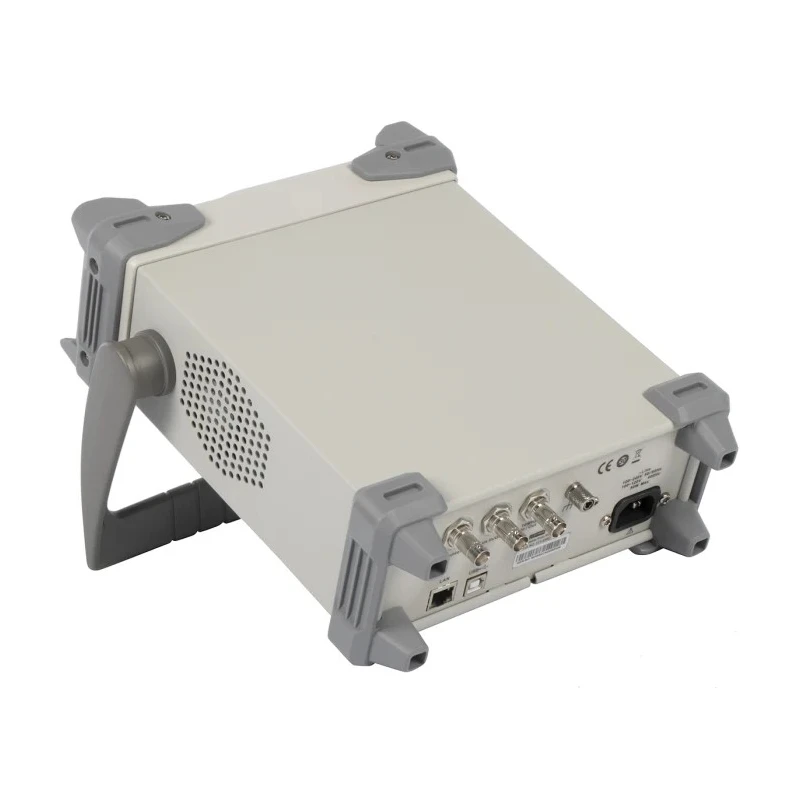

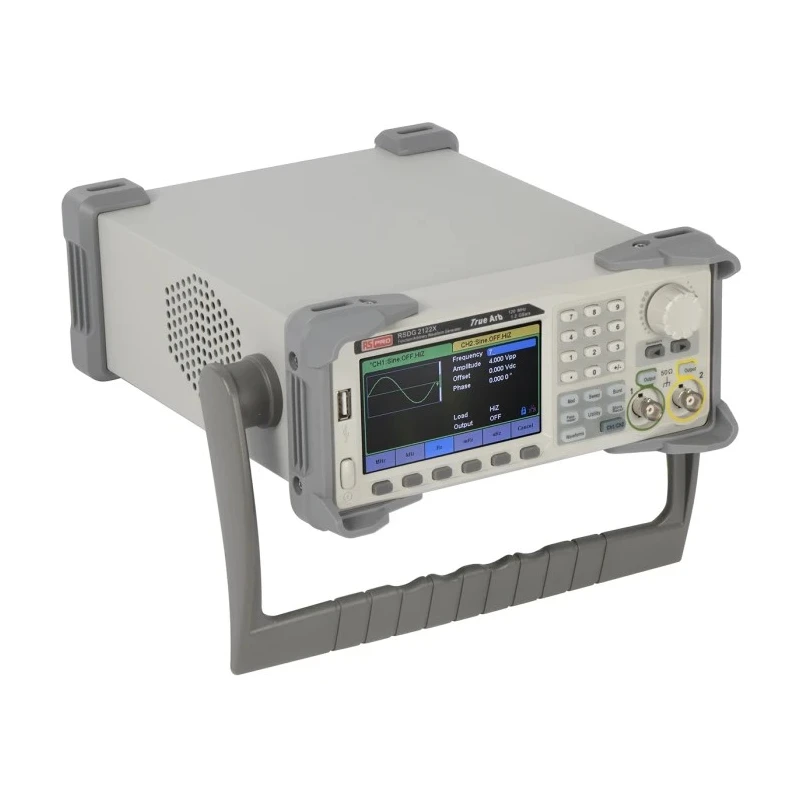

RS PRO Arbitrary Waveform Generator 120 MHz Max, 2-Channel, 1 Hz Min 123-6462
Specifications
| Country of Origin | China |
|---|---|
| Resolution | 1 μHz |
| Display Type | LCD |
| Display | 4.3 inch touch screen |
| Brand | RS PRO |
| Height | 107.2mm |
| Length | 260.3mm |
| Model | 123-6462 |
| Connector Type | BNC |
| Gross Weight | 3.4kg |
| Width | 295.7mm |
| Sampling rate | and 16-bit vertical resolution (no detail in waveforms will be lost) |
| Maximum Operating Temperature | 40°C |
| Inputs | Trigger |
| Minimum Operating Temperature | 0°C |
| Interfaces | USB Device, USB Host, LAN (VXI-11) |
| Number Of Channels | 2 |
| Sweep | Linear, Logarithmic |
| Interface Type | USB, USB Host, LAN |
| Maximum Output Amplitude | 20V Pk-Pk |
| Standards/Approvals | RoHS |
| Maximum Frequency | 120MHz |
| Minimum Frequency | 1Hz |
| Minimum Pulse Width | 100ns |
| Maximum Frequency Triangle Ramps | 1MHz |
| Rise - Fall Time | 22.4s |
| Teledyne LeCroy Waveform Generator 120 MHz Max, 2-Channel, 1 Hz MinBrand | Teledyne LeCroy |
Key Features
- Offers dual-channel arbitrary waveform generation with 120 MHz maximum frequency.
- Features a minimum frequency capability of 1 Hz, suitable for diverse applications.
- Includes a 4.3 inch LCD touch screen for intuitive user interaction and setup.
- Maximum output amplitude of 20 V peak-to-peak for high-fidelity signal output.
- Incorporates USB, USB Host, and LAN interfaces for versatile connectivity.
- Employs advanced TrueArb and EasyPulse technologies for low jitter and high precision signals.
- Supports multiple modulation types including AM, FM, PM, PSK, FSK, ASK, and PWM.
- Provides linear and logarithmic sweep functions along with burst and harmonics modes.
Product Description
RS PRO 123-6462 Arbitrary Waveform Generator 120 MHz Max, 2-Channel is a cutting-edge precision instrument designed for advanced electronic test and measurement applications. With a maximum frequency output of 120 MHz and a minimum frequency as low as 1 Hz, this generator provides extensive versatility for both laboratory and industrial environments.
Equipped with a dual-channel output, it enables simultaneous generation of two signals. The 4.3 inch touch screen LCD facilitates easy navigation and precise waveform control. Featuring a maximum output amplitude of 20 V peak-to-peak, it ensures high fidelity and dynamic range for accurate testing.
The instrument’s proprietary TrueArb technology uses point-by-point waveform architecture, allowing users to generate arbitrary waveforms ranging from 8 PTS to 8 MPTS with sampling rates between 1 μSa/s and 75 MSa/s. In addition, the EasyPulse technology enables the generation of low jitter square and pulse waveforms, providing precise control over pulse widths and rise/fall times.
This model supports a wide array of analog and digital modulation types, including amplitude modulation (AM), double sideband AM (DSB-AM), frequency modulation (FM), phase modulation (PM), phase shift keying (PSK), frequency shift keying (FSK), amplitude shift keying (ASK), and pulse width modulation (PWM). Its sweep functionality supports both linear and logarithmic modes, augmented with burst operations and harmonics analysis.

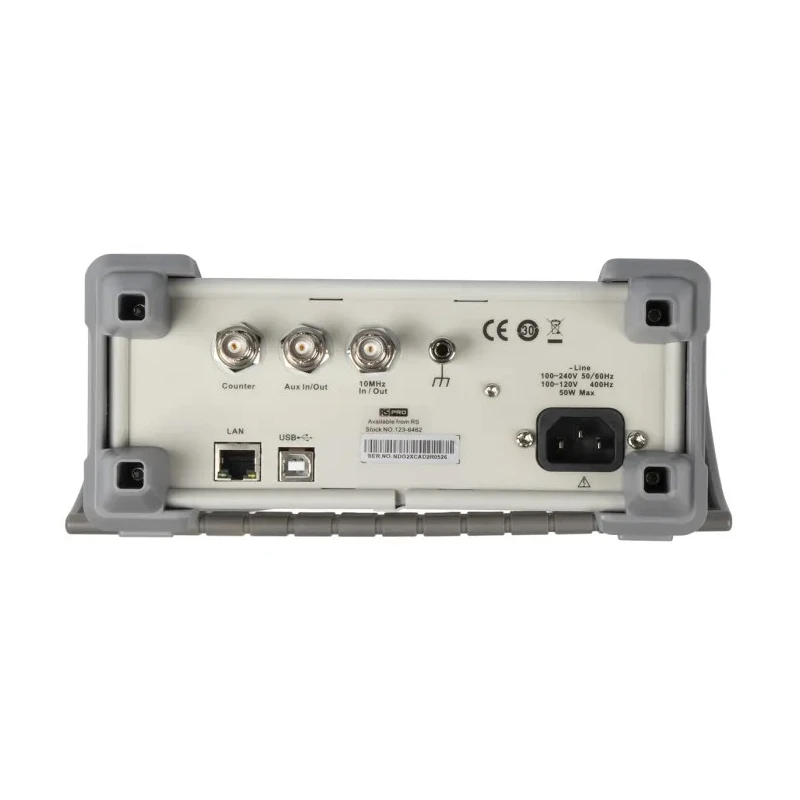

Connectivity is versatile through USB device, USB host, and LAN interfaces (including VXI-11 protocol), supporting advanced remote operation and integration. The unit is constructed per RoHS standards and operates reliably within 0°C to 40°C ambient conditions.
With compact dimensions of 260.3 x 107.2 x 295.7 mm and weighing approximately 3.4 kg, this waveform generator is suitable for benchtop laboratory setups and industrial testing stations alike.

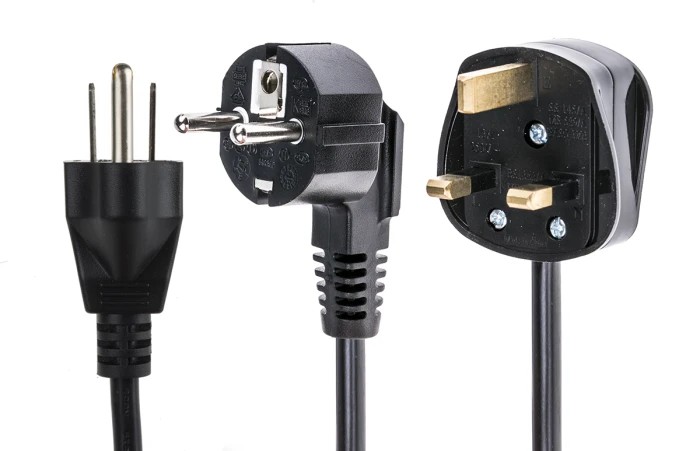

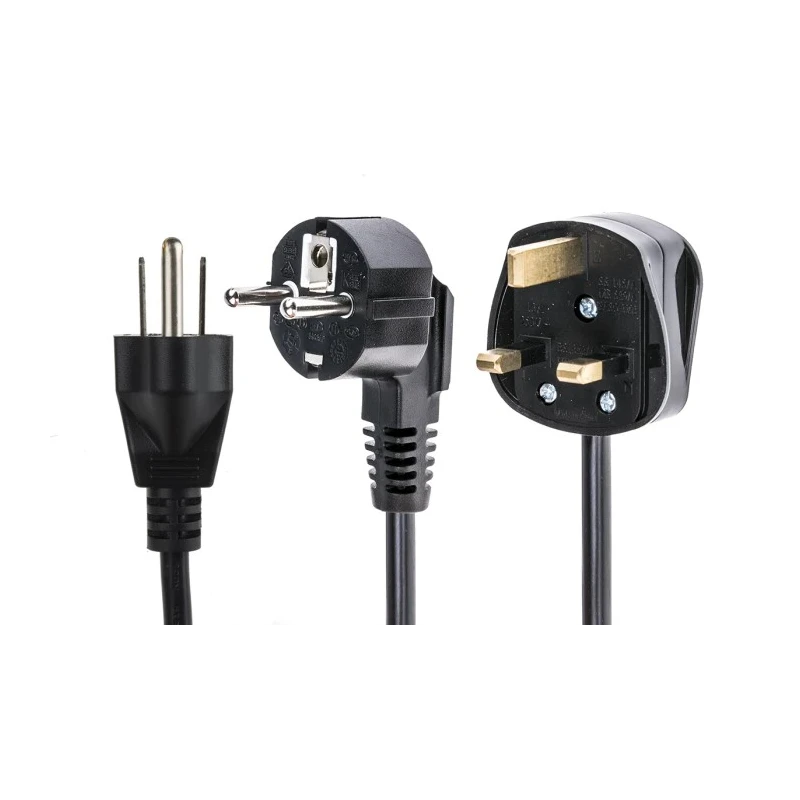

Package includes quick start guide, product certification, power cord, calibration certificate, BNC coaxial cable, and software with datasheets for seamless installation and use.
This high-performance arbitrary waveform generator is ideal for industries such as electronics manufacturing, telecommunications, research and development laboratories, educational institutions, and quality assurance testing centers. Purchase with confidence from EnvMart’s selection of precision test instruments.
Explore more products in our Function Generator category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum frequency output of this model is 120 MHz.
This unit has a minimum frequency capability of 1 Hz.
It supports dual-channel output, allowing simultaneous generation of two signals.
The maximum output amplitude is 20 V peak-to-peak.
It supports multiple modulation types including AM, FM, PM, PSK, FSK, ASK, and PWM.
It features a 4.3 inch LCD touch screen for user interaction and setup.
The dimensions are 260.3 x 107.2 x 295.7 mm and it weighs approximately 3.4 kg.
It includes USB device, USB host, and LAN interfaces for versatile connectivity.
The operating temperature range is from 0°C to 40°C.
The minimum pulse width is 100 ns.
It supports both linear and logarithmic sweep functions.
This model is constructed per RoHS standards.
