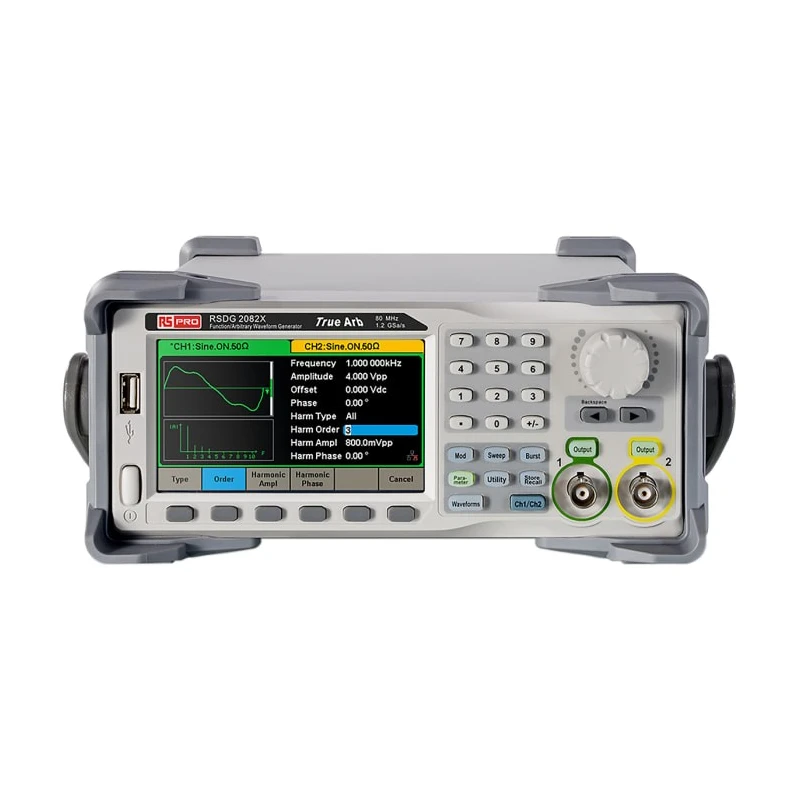

RS PRO Arbitrary Waveform Generator 80 MHz Max, 2-Channel, 1 Hz Min 123-6461

RS PRO 123-6461 Arbitrary Waveform Generator is a high-performance, dual-channel function and arbitrary waveform generator designed for industrial, laboratory, and engineering applications. Featuring an 80 MHz maximum frequency with the capability of generating signals as low as 1 Hz, this model offers versatility ideal for complex testing and signal generation tasks.

This device integrates innovative TrueArb technology to support arbitrary waveforms ranging from 8 points to 8 million points, allowing precise waveform shaping with sample rates between 1 µSa/s and 75 MSa/s. The EasyPulse technology enhances pulse generation by minimizing jitter, providing high precision in pulse width and rise/fall time adjustments.

The RS PRO 123-6461 generator supports various modulation types including AM, DSB-AM, FM, PM, PSK, FSK, ASK, and PWM, making it suitable for diverse signal analysis and synthesis requirements in research, development, and manufacturing settings.

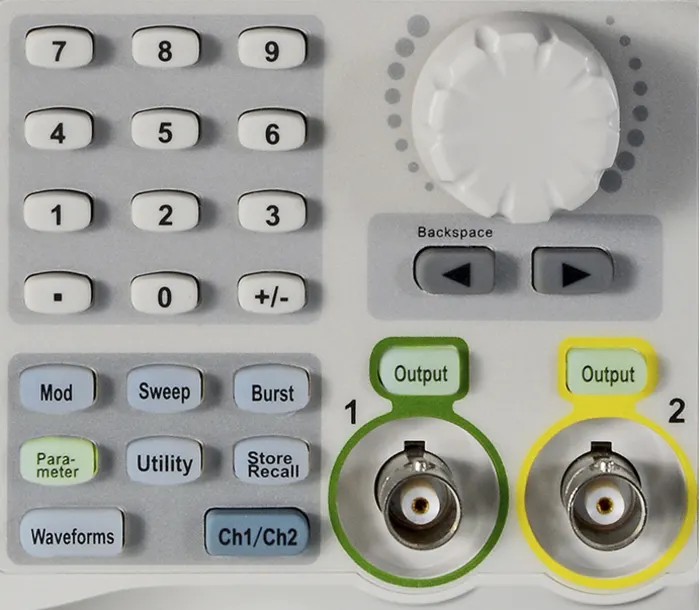

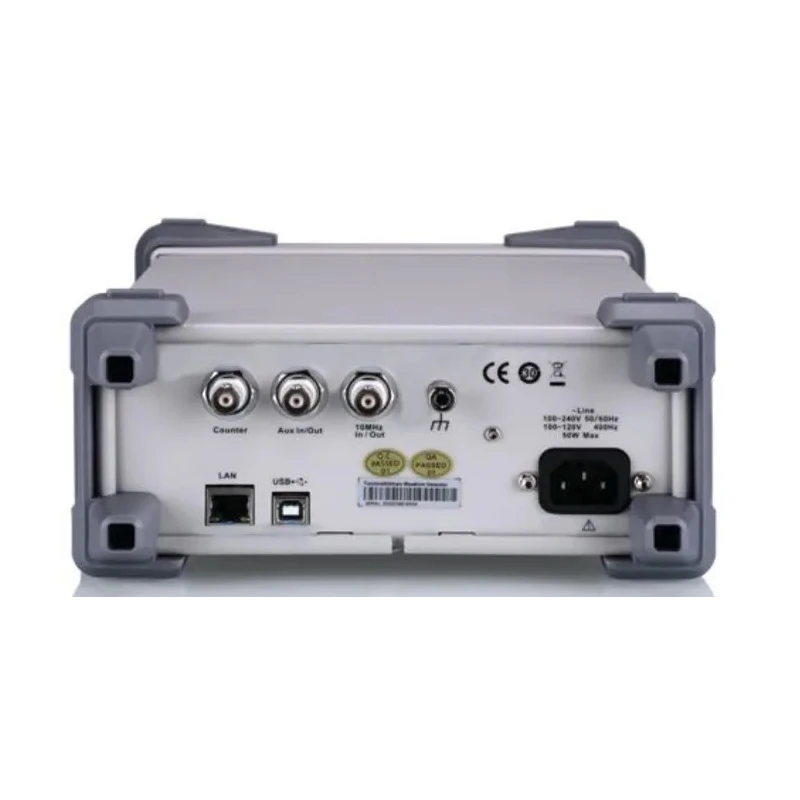

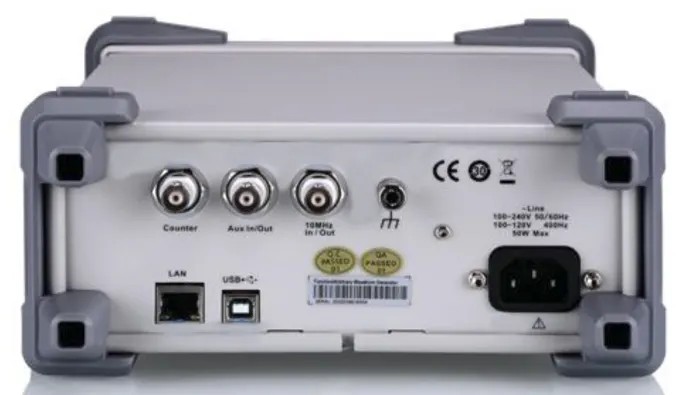

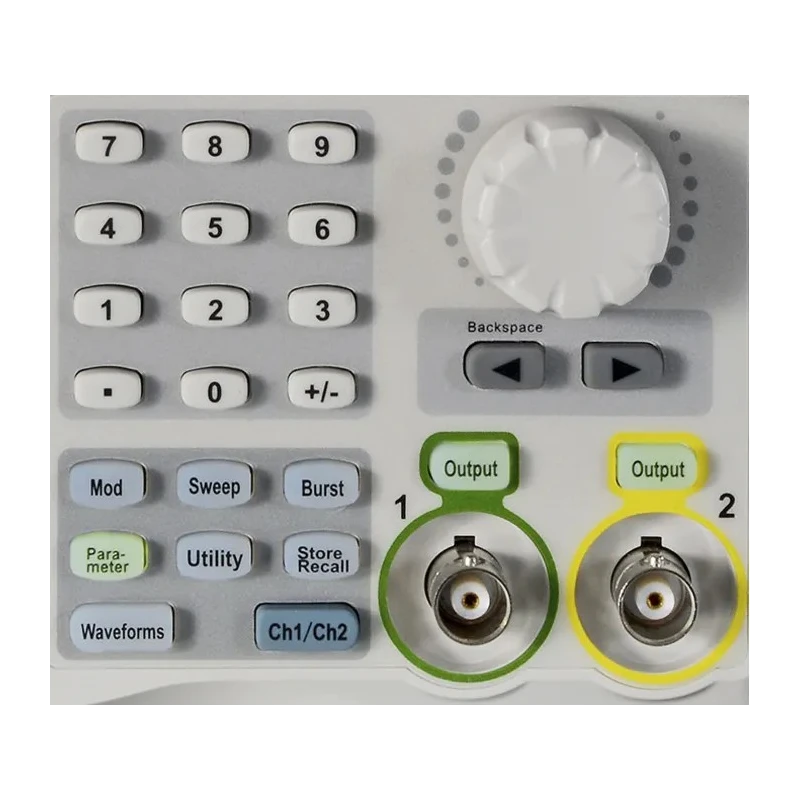

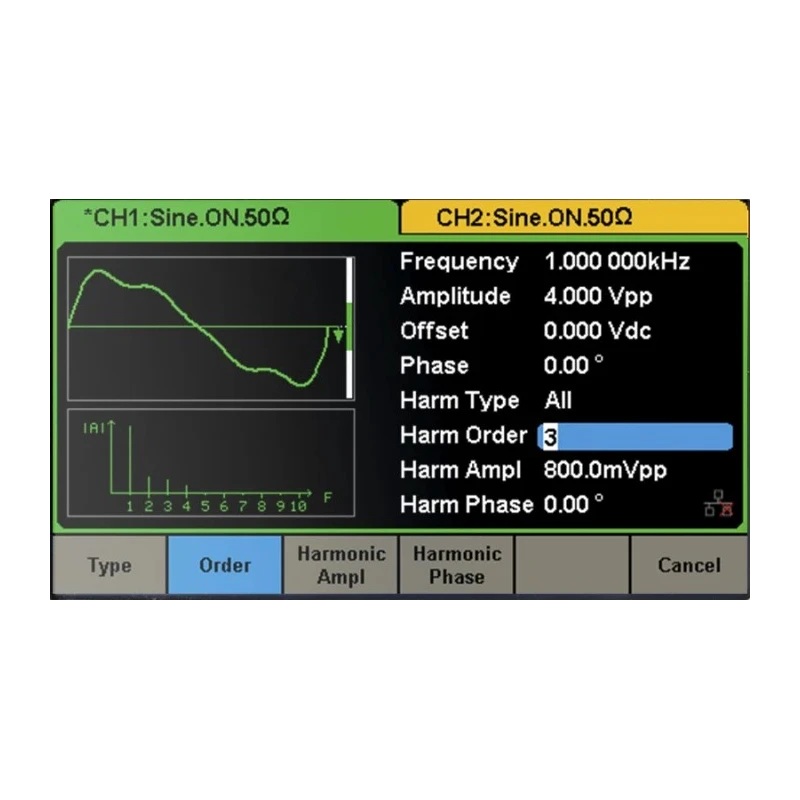

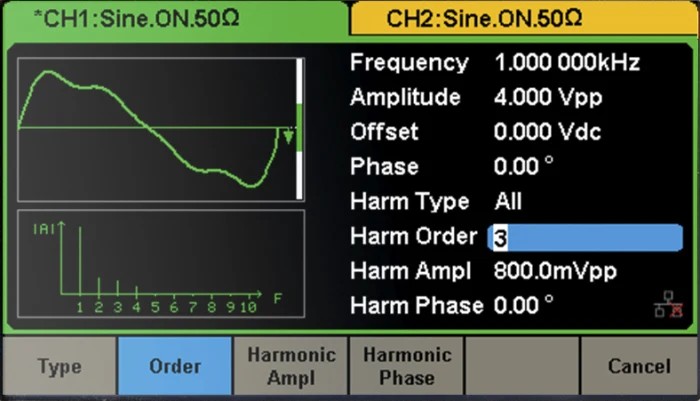

Connectivity options include USB Host, USB Device, and LAN (VXI-11) interfaces, facilitating integration with laboratory networks and computer control systems. The 4.3 inch LCD touch screen offers intuitive user interaction with clear waveform visualization.

Measuring 260.3 mm in length, 107.2 mm in height, and 295.7 mm in width, and weighing 3.4 kg, the compact design is optimized for bench use without occupying excessive space. The unit complies with RoHS standards and includes BNC type connectors for reliable signal output.

Equipped with TrueArb point-by-point architecture for precise arbitrary waveform generation. EasyPulse technology ensures low jitter pulse and square wave signals. Supports linear and logarithmic sweep functions for advanced testing.

High sampling rate of 1.2 GSa/s and 16-bit vertical resolution preserves waveform detail. Maximum output amplitude up to 20 V peak-to-peak for strong signal output. Dual channels enable simultaneous signal generation for complex applications.

USB Host, LAN, and USB Device interfaces for robust connectivity options. Compact size and lightweight construction enhance portability and workspace efficiency.

This arbitrary waveform generator is ideally suited for industrial testing, electronics development, manufacturing quality control, and educational laboratory environments. It delivers high accuracy and versatility demanded by engineers and technicians for signal generation and analysis.
