RS PRO 150 MHz Dual Channel Bench Digital Storage Oscilloscope with 2Mpts Memory Depth RSDS1000CML+ Series 123-6438

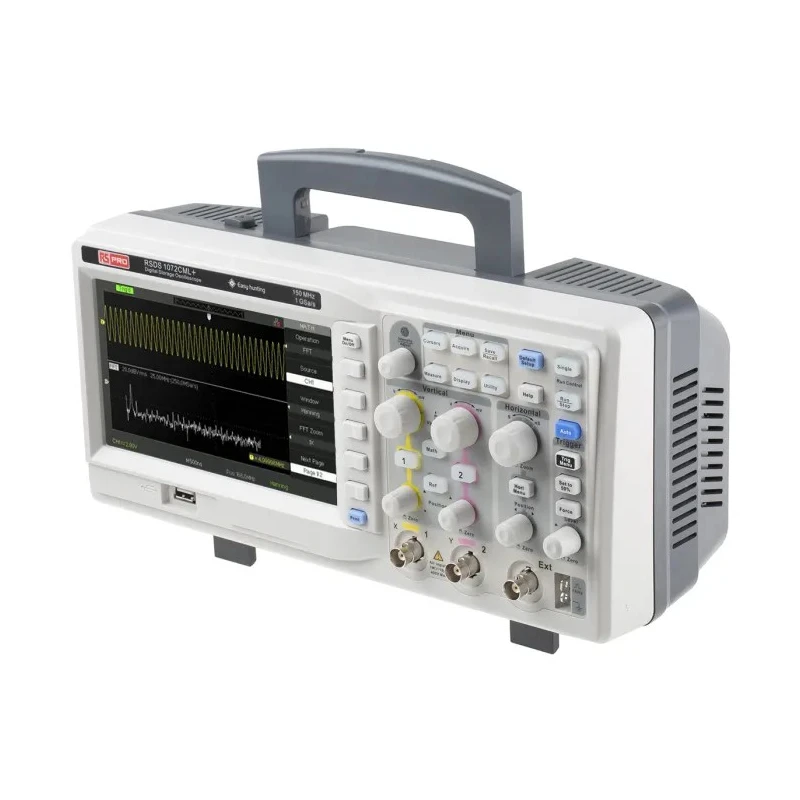

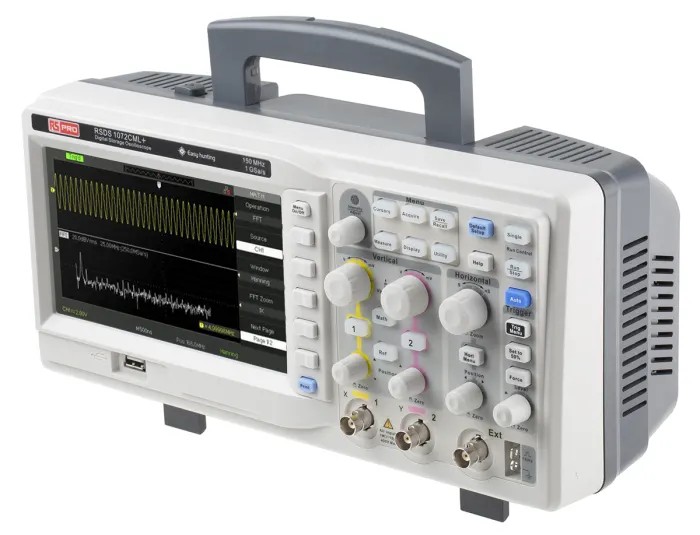

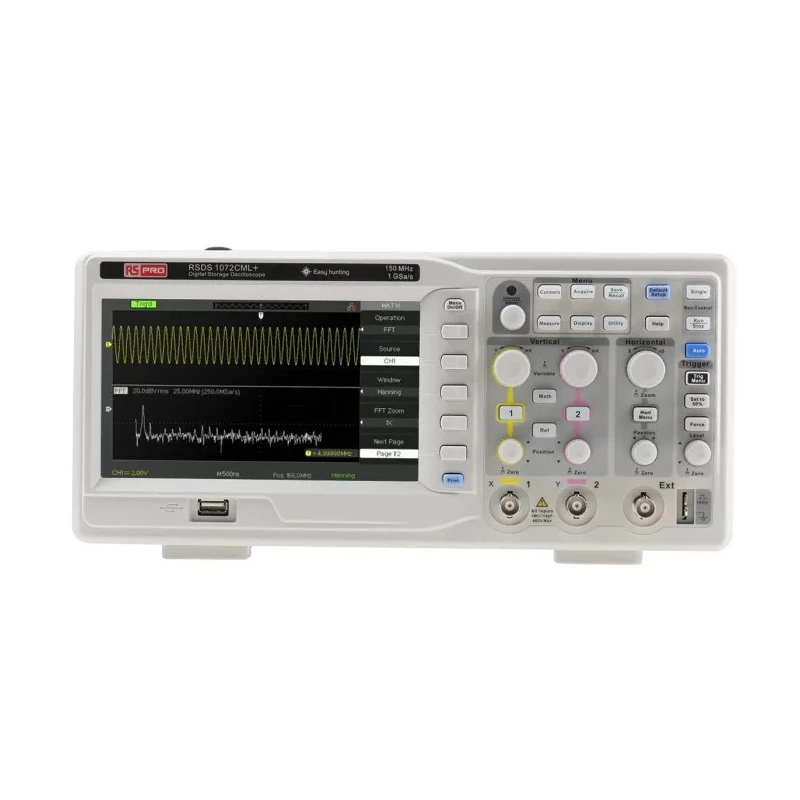

RS PRO 123-6438 is a robust 150 MHz dual-channel bench digital storage oscilloscope designed to capture, process, and analyze electronic signals with high accuracy. It features a 7 inch TFT LCD screen providing 800 x 480 resolution for detailed waveform examination. This oscilloscope offers a memory depth of 2 Mpts enabling longer signal capture and clear waveform resolution.

The RSDS1000CML+ series supports a maximum real-time sampling rate of 1 GSa/s and equivalent-time sampling up to 50 GSa/s, ensuring precise signal acquisition. Its diverse triggering capabilities include edge, pulse, video, slope, and alternate triggering modes to handle a wide range of signal types efficiently.

Equipped with a 6-digit frequency counter and 32 mathematical waveform functions like addition, subtraction, multiplication, division, and FFT, it expedites complex signal analysis and measurement tasks. The device also integrates multi-language support and embedded online help, enhancing user accessibility.

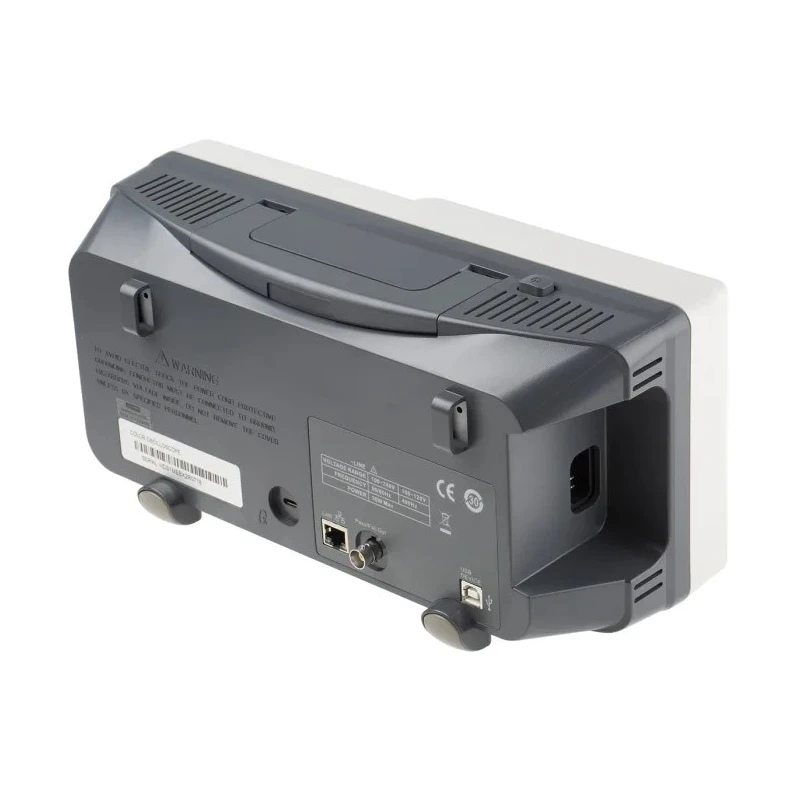

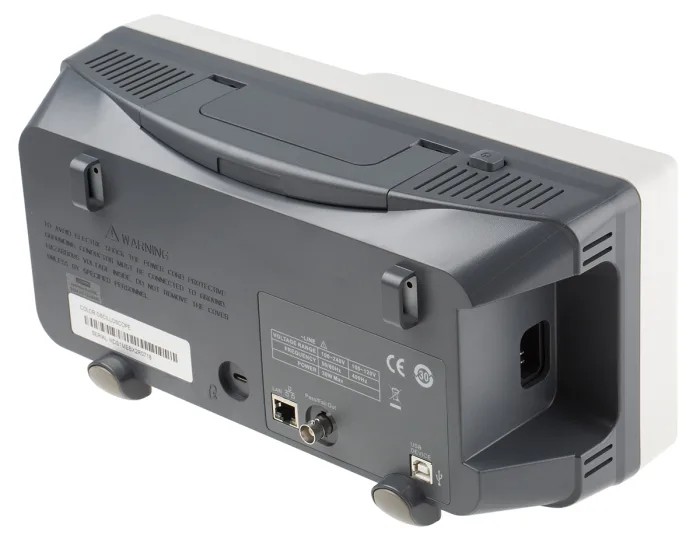

Connectivity options include USB Host, USB Device (USBTMC), RS232, and LAN (VXI-11), enabling seamless integration with other instruments and computer systems for data logging and remote control. The oscilloscope’s compact dimensions measure 323.1 mm in depth, 135.6 mm in width, and 157 mm in height, weighing 2.5 kg, making it portable for various laboratory and field applications.

Typical industrial uses encompass electronics troubleshooting, educational laboratories, embedded electronics, automotive electronics design, mixed-signal and video signal analysis, making it an indispensable tool for professionals and engineers.

The RS PRO brand ensures professional quality with every unit rigorously tested against stringent standards. This oscilloscope model 123-6438 from the RSDS1000CML+ series represents dependable measurement performance built for diverse electrical and electronic testing environments.

Features a 7 inch TFT LCD display with 800 x 480 resolution for clear waveform visualization. Supports a memory depth of 2 Mpts for accurate waveform resolution. Provides a real-time sampling rate up to 1 GSa/s and equivalent-time sampling up to 50 GSa/s.

Includes multiple trigger modes such as edge, pulse, and video for versatile signal capture. Equipped with 32 mathematical waveform functions for complex analysis. Multi-language display support and embedded online help enhance usability.

Connectivity via USB Host, USB Device, RS232, and LAN for flexible interfacing. Compact size and 2.5 kg weight enable portability in laboratories and fieldwork. Explore more high-quality measurement instruments and Oscilloscopes from RS PRO at EnvMart for reliable industrial and laboratory applications.
