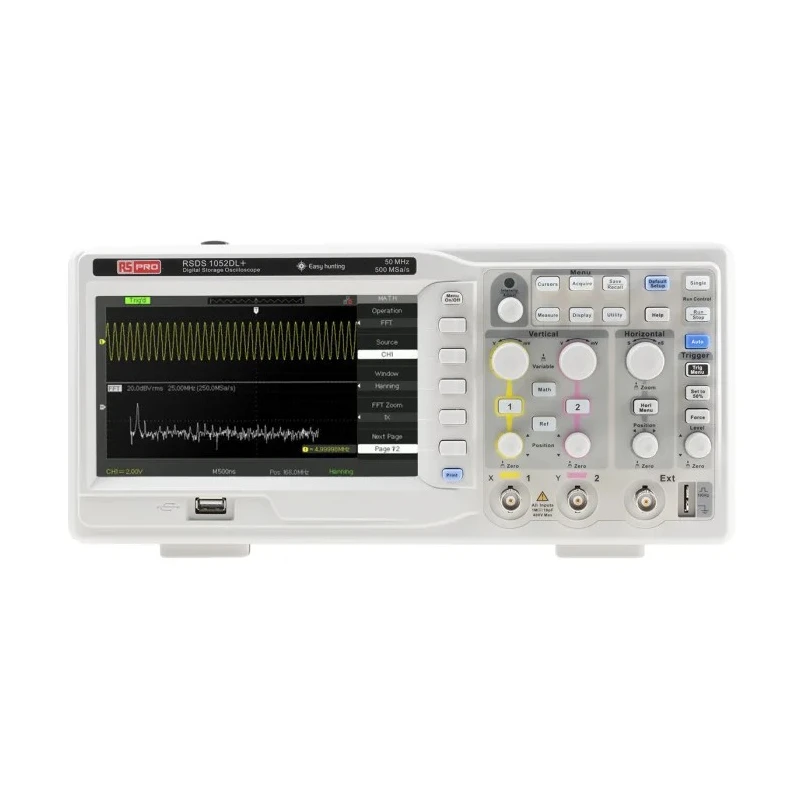

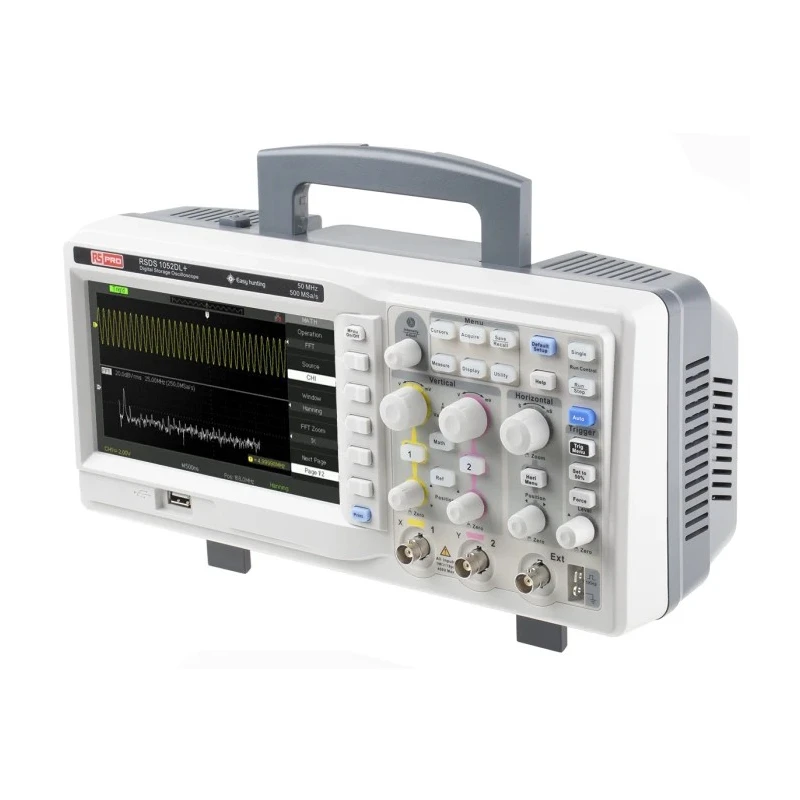

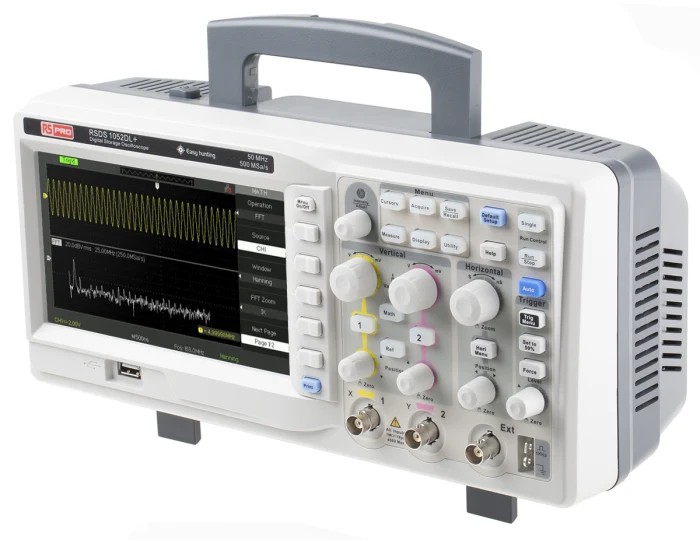

RS PRO 50 MHz Bench Digital Storage Oscilloscope 2 Channels RS-123-6435

RS PRO 123-6435 50 MHz Bench Digital Storage Oscilloscope with 2 Channels provides high fidelity signal analysis for industrial and laboratory settings. This digital oscilloscope offers a bandwidth of 50 MHz and supports real-time waveform sampling at rates up to 1 GSa/s, enabling precise capture of fast transient signals.

The 7 inch TFT LCD screen with 800 x 480 resolution delivers detailed waveform presentations, allowing analysts to conduct thorough investigations of electronic circuits. With a memory depth of 32kpts, it provides sufficient storage to handle extended waveform recordings for comprehensive analysis.

Equipped with flexible interfaces including USB and RS232, the device facilitates easy connectivity and data transfer to external devices. The multiple trigger functions such as Edge, Pulse, Video, and Slope enable reliable triggering for specialized measurement scenarios.

Its compact size of 323.1 mm depth, 135.6 mm width, and 157 mm height, paired with a manageable weight of 2.5 kg, makes it suitable for bench-top use and easy movement between workstations. The digital storage capability and an 8-bit vertical resolution ensure quality signal quantification with a vertical sensitivity range from 2 mV/div to 10 V/div.

This oscilloscope serves diverse industrial sectors including electronics troubleshooting, embedded electronic design, mixed-signal and video test environments, educational laboratories, and automotive electronics diagnostics.

Offers 50 MHz bandwidth with versatile channel inputs. Memory depth and sampling rate support accurate signal capture. Multiple interface options promote integration with laboratory networks. Elegant TFT LCD display enhances user experience during waveform analysis.

Lightweight and compact ergonomic design optimized for lab and field use. Supports several trigger modes for flexible measurement control.

This RS PRO oscilloscope is part of a reliable series tailored for professional testing and measurement needs, ensuring quality and accuracy for your electronic diagnostics. Explore more Oscilloscopes and measurement instruments at EnvMart to suit specialized industrial applications.
