RS PRO 70 MHz Bench Digital Storage Oscilloscope, 2 Channels, USB, TFT LCD RSDS1000CML+ Series 123-6436

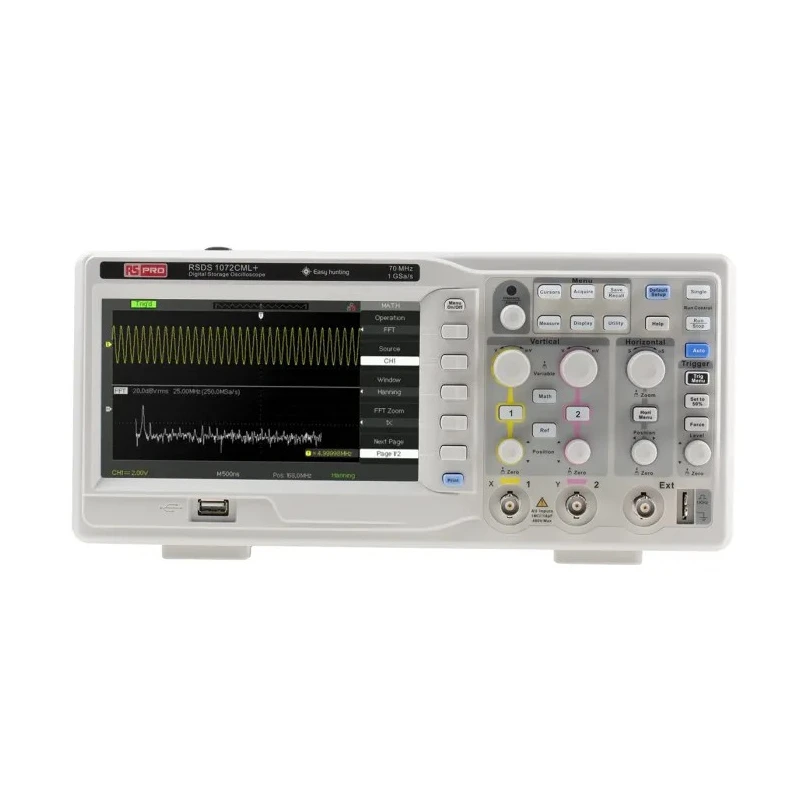

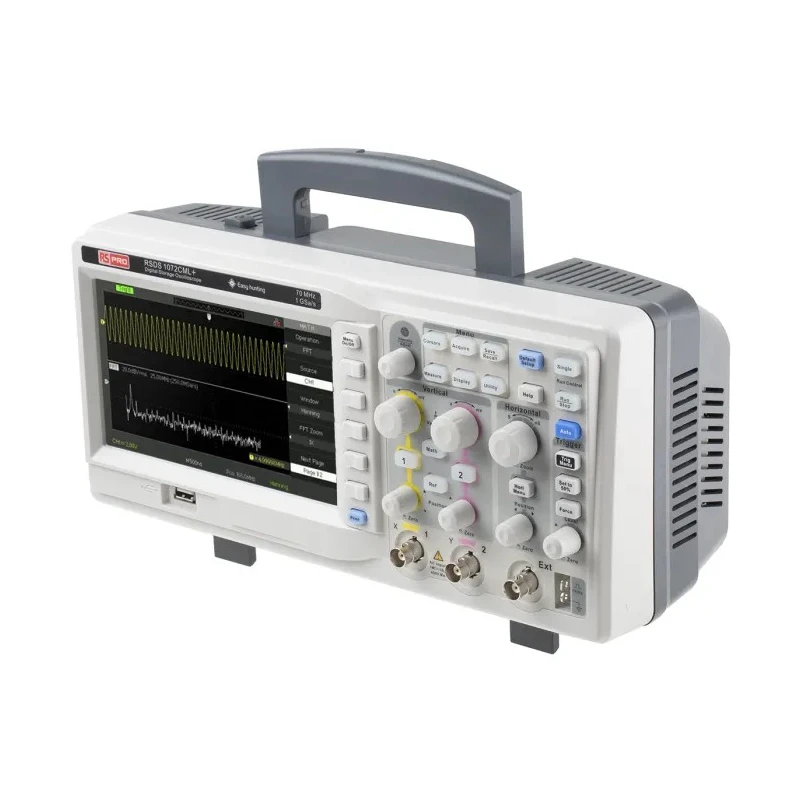

The RS PRO 123-6436 70 MHz Bench Digital Storage Oscilloscope is a high-performance instrument designed for industrial and laboratory use, enabling engineers and technicians to visualize and analyze electronic signal waveforms with precision. Featuring a 70 MHz bandwidth and two channels, this scope conveniently displays complex waveforms on a bright 7 inch TFT LCD screen with 800 x 480 resolution.

Equipped with 2 Mpts memory depth and a 1 GSa/s sampling rate, it captures long and detailed signal data, supporting multiple trigger modes such as Edge, Pulse, Video, Slope, and Alternate. These features facilitate accurate and flexible signal measurement across applications.

Interfaces include USB Host, USB Device (USBTMC), and RS232, enabling seamless connectivity for data export and remote operation. The oscilloscope’s compact bench form factor, with dimensions of 323.1 x 135.6 x 157 mm and a weight of 2.5 kg, makes it suitable for placement in electronics labs, manufacturing test stations, automotive diagnostics, and educational environments.

Additional functionality includes waveform math operations (+, -, *, /, FFT), a 6-digit frequency counter, and support for multi-language displays and embedded online help. Safety is ensured through CAT I and CAT II safety category levels, suitable for testing low voltage electronic circuits.

Typical applications for this oscilloscope encompass digital signal diagnostics, embedded electronics troubleshooting, mixed-signal and video design validation, and automotive electronics testing. Its robust feature set makes it a versatile tool for multiple technical and engineering fields.

70 MHz bandwidth allows detailed signal inspection. Dual-channel inputs enable simultaneous measurement of two signals. 7 inch TFT LCD screen with 800 x 480 resolution for clear waveform display. 2 Mpts memory depth captures long signal sequences accurately.

Sampling rate up to 1 GSa/s with equivalent-time sampling up to 50 GSa/s. Multiple trigger types including Edge, Pulse, Video, Slope, and Alternate for versatile measurement control. USB and RS232 interfaces support connectivity and data transfer.

Compact bench form factor sized 323.1 x 135.6 x 157 mm fitting most lab environments. 8-bit vertical resolution ensures precise amplitude readings. Operates from mains power and offers CAT I and CAT II safety level.

This RS PRO oscilloscope is part of the RSDS1000CML+ series that offers a range of bandwidth options for tailored testing requirements. Explore the EnvMart catalogue for RS PRO Oscilloscopes and test instruments to find complementary laboratory and industrial tools.
