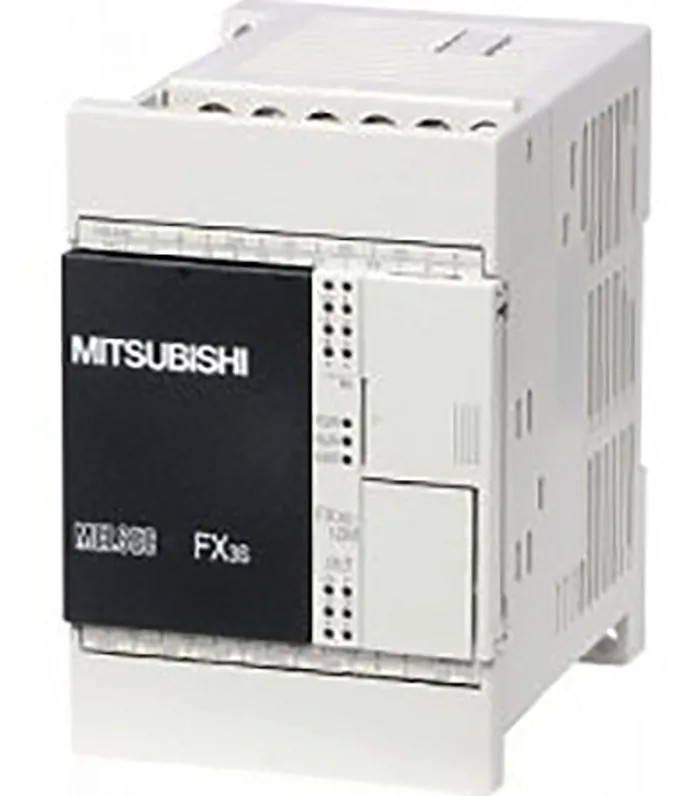

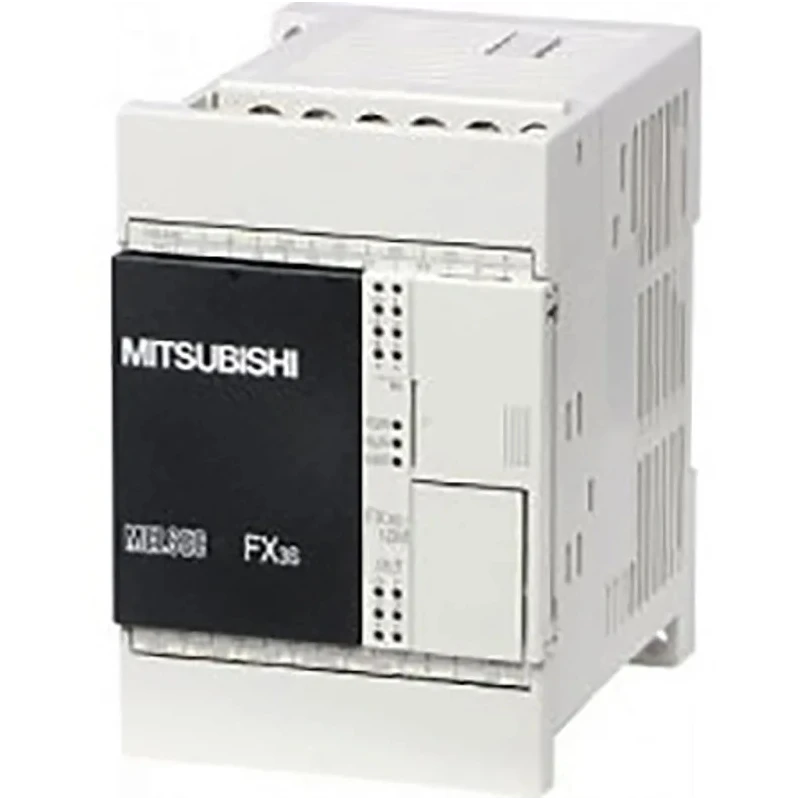

Mitsubishi Electric FX3S Series PLC CPU, 6 Inputs, Sink Input, 4 Relay Outputs, DIN Rail Mount
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Mitsubishi Electric |
| Length | 60mm |
| Model | FX3S |
| Depth | 49mm |
| Width | 90mm |
| Mount Type | DIN Rail |
| Number of inputs | 6 |
| Output type | Relay |
| Series | FX3S |
| Output Current | 2A |
| Input Type | Sink |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | 0°C |
| Interfaces | USB port for the programming communication function to enable high-speed communication at 12Mbps |
| Number of outputs | 4 |
| Program Capacity | 4000Steps |
| Standards/Approvals | cUL, EC Directive, EMC Directive, UL |
| Number of Communication Ports | 2 |
| Communication Port Type | RS422, USB |
| Programming Language Used | Step Ladder |
| RS PRO Logic Controller, 8-Input, DC Input, 6 Outputs, Relay OutputRS Stock No. | 266-5070Brand: RS PRO |
Key Features
- Compact PLC CPU from the FX3S series with high performance in minimal size.
- Includes 6 digital inputs and 4 relay outputs suitable for straightforward process control.
- Integrated power supply with 24V DC power and DIN rail mounting for easy installation.
- Supports programming communication via built-in USB and RS422 ports.
- Maintains operation in ambient temperatures ranging from 0°C to 55°C.
- Offers maintenance-free EEPROM memory ensuring durability and reliability.
- Program capacity of 4000 steps with built-in real-time clock and positioning control functions.
- Battery backup included for program retention during power interruptions.
Product Description
Mitsubishi Electric FX3S-10MR/DS is a compact and reliable PLC CPU from the FX3S series designed for industrial automation systems requiring efficient control of inputs and outputs.
This model features 6 digital sink-type inputs and 4 relay outputs, delivering precise control capabilities for a variety of machinery and processes.
Equipped with a built-in 24V DC power supply and DIN rail mount, installation is streamlined for space and cost-constrained environments. The PLC withstands operating temperatures from 0°C up to 55°C, ensuring stable performance in diverse industrial scenarios.
Communication and programming are facilitated through onboard USB and RS422 ports with a programming communication speed of up to 12 Mbps, enabling quick setup and maintenance using Mitsubishi's GX Works2 software.
The controller offers a program capacity of 4000 steps and includes a real-time clock for time-based operations. It supports Step Ladder programming language, favored for its simplicity and versatility in automation.
The FX3S-10MR/DS includes a battery backup for program retention, eliminating concerns about data loss during power interruptions. Industries such as manufacturing, robotics, and automotive automation benefit from this compact and maintenance-free PLC solution.
Compact PLC CPU from the FX3S series with high performance in minimal size. Includes 6 digital inputs and 4 relay outputs suitable for straightforward process control. Integrated power supply with 24V DC power and DIN rail mounting for easy installation.
Supports programming communication via built-in USB and RS422 ports. Maintains operation in ambient temperatures ranging from 0°C to 55°C. Offers maintenance-free EEPROM memory ensuring durability and reliability. Program capacity of 4000 steps with built-in real-time clock and positioning control functions.
Battery backup included for program retention during power interruptions. Supports Step Ladder programming language for flexible automation solutions. Complies with standards including cUL, EC Directive, EMC Directive, and UL.
This PLC CPU is ideal for use in industrial automation, robotics, and manufacturing where reliable, compact, and cost-effective programmable logic control is required. Explore more Mitsubishi Electric PLCs and automation products at EnvMart.
