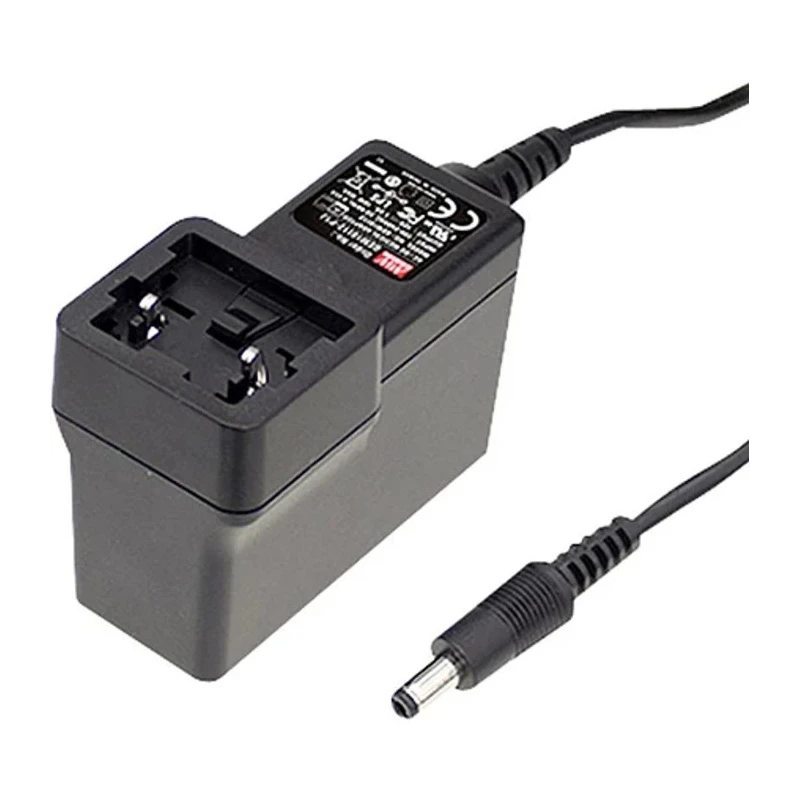

MEAN WELL AC/DC Adapter 264V AC Input 24V DC Output 1.66A Medical Grade GEM40I24-P1J

MEAN WELL GEM40I24-P1J is a highly reliable and compact AC/DC adapter designed for medical and electronic applications. It accepts a wide universal AC input voltage range from 100 V to 264 V, catering to global power requirements. The adapter outputs a stable 24 V DC voltage at a maximum current of 1.66 A, ideal for powering portable medical devices such as blood glucose meters, blood pressure monitors, inhalers, nebulisers, and sleep apnea devices.

Designed with a flame retardant 94V-0 plastic case, the adapter ensures electrical safety and user protection. The product features interchangeable global AC plug types including Australian, European, UK, and US standards, making it suitable for international use. Its small form factor measuring 75.5 x 56.2 x 39.1 mm allows for easy handling and transportation.

The GEM series power supplies are highly efficient, reaching up to 90.5% efficiency, and consume less than 0.1 W under no-load conditions, contributing to energy savings and reduced environmental impact. The adapter meets stringent medical safety requirements with 2 x MOPP certifications and low leakage current below 100 μA, suitable for sensitive medical environments.

Robust electrical protections are built-in, including short circuit, overload, and over voltage safeguards, ensuring operational durability and device protection. The adapter is Class II rated and does not require an earth pin, simplifying installation.

Certified for safety and EMC compliance with IEC 60950-1, CE, UL 60950-1 along with ANSI/AAMI ES60601-1 and TUV EN60601-1 medical approvals, the product is engineered to meet international standards for medical and industrial quality applications.

Compatible with Australia, EU, UK, and US plug types for universal use. Maximum output current of 1.66 A with 24 V DC output voltage. Compact dimensions of 75.5 x 56.2 x 39.1 mm. Flame retardant plastic housing with Class II insulation.

2 x MOPP medical safety rating with low leakage current. High efficiency up to 90.5% and low standby power consumption. Input voltage range from 100 to 264 V AC at 50/60 Hz. Industry-standard electrical protections included.

Complies with IEC 60950-1, CE, UL 60950-1, ANSI/AAMI ES60601-1, TUV EN60601-1 standards.

This MEAN WELL AC/DC adapter is well-suited for use in medical, industrial, laboratory, and commercial electronic device applications requiring reliable and safe power supply solutions. Explore the broad catalog of power supplies on EnvMart for compatible accessories and related products.
