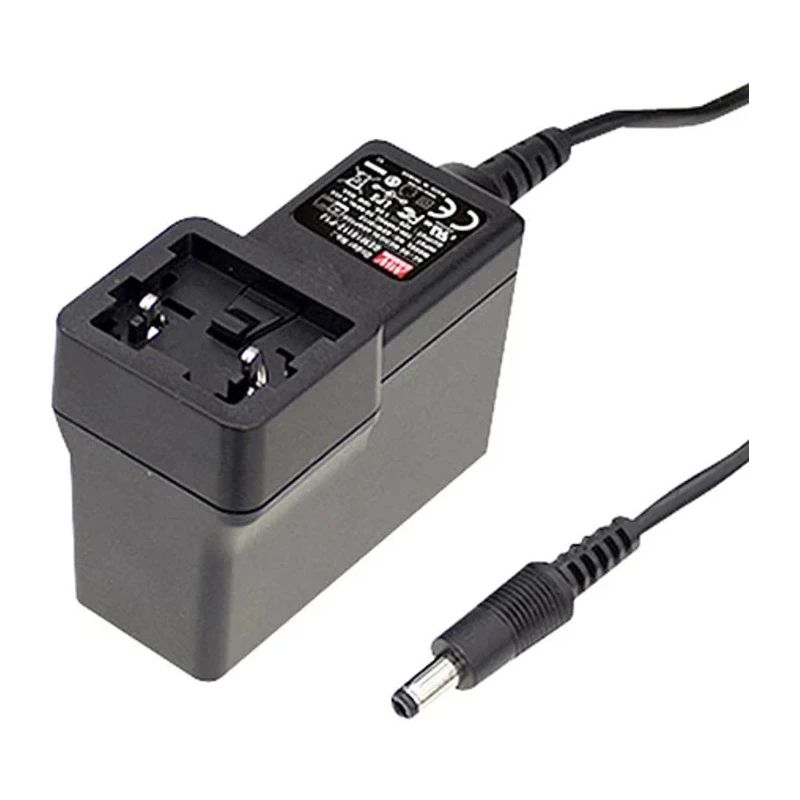

MEAN WELL AC/DC Adapter Universal Plug, 12 V dc Output 3.33 A, 264V ac Input GEM40I12-P1J

Free Delivery in India | Lowest Global Shipping Charges

MEAN WELL AC/DC Adapter Universal Plug, 12 V dc Output 3.33 A, 264V ac Input GEM40I12-P1J

Name: MEAN WELL AC/DC Adapter Universal Plug, 12 V dc Output 3.33 A, 264V ac Input GEM40I12-P1J
Brand: MEAN WELL
SKU: 192534



Category AC/DC Adapter Brand MEAN WELL Condition New

Specifications

Country of Origin	China
Brand	MEAN WELL
Model	GEM40I12-P1J
Cable Length	1m
Overall Length	39.1mm
EMC Immunity	Compliance to EN61000-4,-2,3,4,5,6,8,11, light industry level, criteria A
Series	GEM40I
Overall Width	75.5mm
Maximum Operating Temperature	70°C
Plug Type	Australia, EU, UK, US
Maximum Input Voltage	264V ac
Maximum Output Current	3.33A
Standards/Approvals	UL 60950-1, CE, IEC 60950-1
Minimum Input Voltage	100V ac
Overall Depth	56.2mm
Minimum Output Voltage	12V dc
Input Connector Type	Universal Plug
EMC Emission	Compliance to EN55011 class B, EN61000-3-2,3, FCC PART 15 / CISPR22 class B

Key Features

Compact and reliable wall-mounted power supply unit.
Compatible with Australia, EU, UK, and US plug types.
Built with flame retardant 94V-0 plastic case for user safety.
High efficiency up to 90.5% and low no-load power consumption below 0.1 W.
Wide input voltage range from 100 V ac to 264 V ac.
Medical safety approvals for 2 x MOPP protection and low leakage current.
Features short circuit, overload, and over voltage protections.
Lightweight and compact design for easy transportation.

Product Description

MEAN WELL GEM40I12-P1J is a highly reliable AC/DC adapter with a universal plug supporting Australian, EU, UK, and US configurations. It delivers a stable 12 V dc output with a maximum current of 3.33 A, and accepts an input voltage range from 100 V ac to 264 V ac. The adapter comes in a compact, flame retardant 94V-0 plastic casing that ensures protection against electrical hazards, making it especially suitable for medical and portable devices.

This power supply achieves high efficiency ratings up to 90.5% and consumes less than 0.1 W in no-load standby mode, reflecting compliance with energy-saving initiatives such as EISA 2007/DoE and EU ErP regulations. The device includes industry-standard protections against short circuits, overload, and over voltage events, providing reliable and safe power delivery.

The GEM series is designed with convenience in mind, supporting four interchangeable AC plug types to cater to global use. The adapter holds medical safety approvals including ANSI/AAMI ES60601-1 and TUV EN60601-1 standards, featuring 2 x MOPP protection and leakage current under 100 μA to meet strict medical device safety requirements.

Key applications for this adapter include use with blood glucose monitors, blood pressure meters, inhalers, nebulizers, sleep apnea treatment devices, and other portable medical instruments requiring stable and safe power sources.

Compact and reliable wall-mounted power supply unit. Compatible with Australia, EU, UK, and US plug types. Built with flame retardant 94V-0 plastic case for electrical protection. High efficiency up to 90.5% and low standby power consumption below 0.1 W.

Wide input voltage range of 100 V ac to 264 V ac for global compatibility. 2 x MOPP medical safety rated with leakage current less than 100 μA. Includes short circuit, overload, and over voltage protection features. Meets ANSI/AAMI ES60601-1 / 60601-1-11 and TUV EN60601-1 / 60601-1-11 approvals.

Suitable for medical and portable device power requirements.

Choose the MEAN WELL GEM40I12-P1J AC/DC Adapter for high safety standards, energy efficiency, and versatile plug compatibility in industrial, laboratory, and medical applications. Explore more adapters and power supplies in the Electronics & Electricals category at EnvMart.
