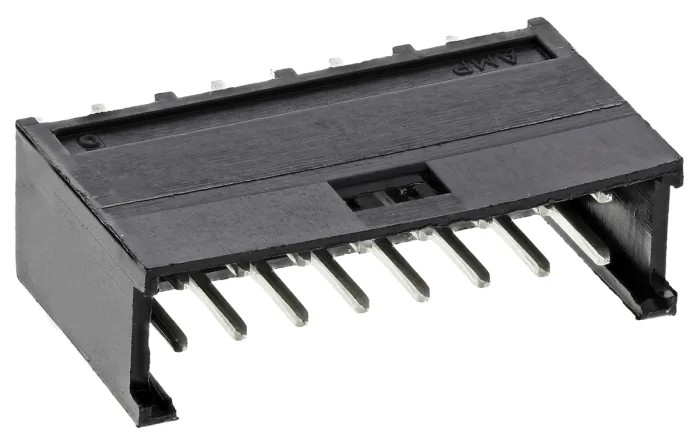

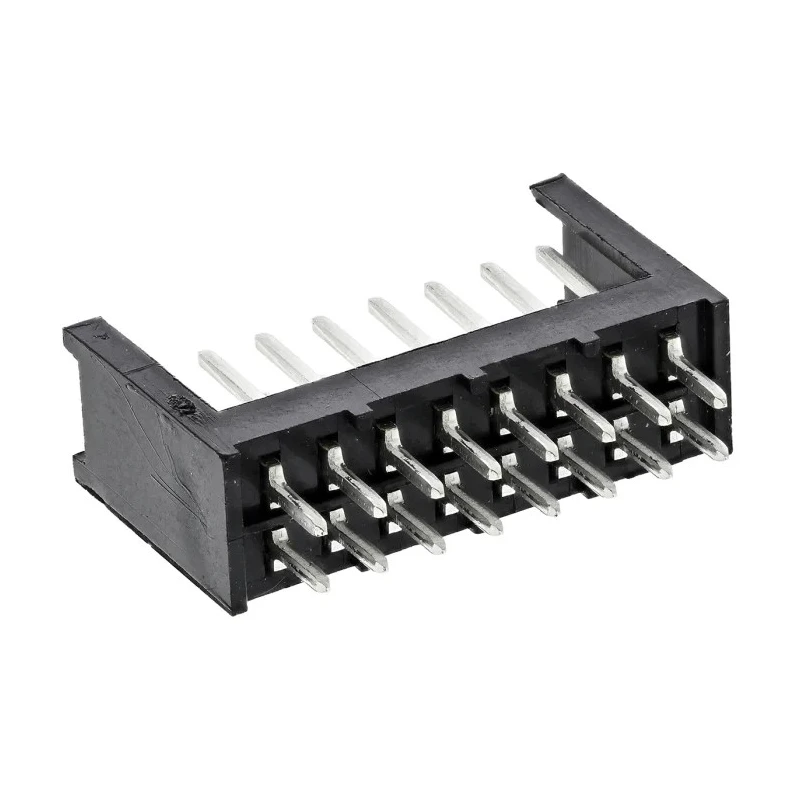

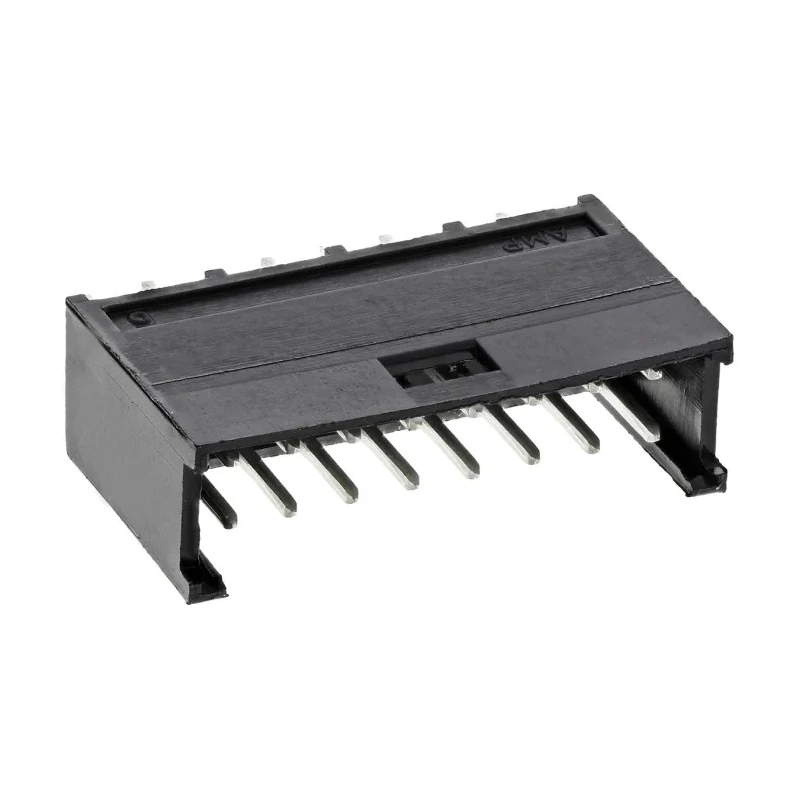

TE Connectivity AMPMODU MOD II Series Straight Through Hole Shrouded PCB Header 16 Contacts 2.54 mm Pitch 2 Row 280385-1
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 750V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 3A |
| Model | 280385-1 |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Phosphor Bronze |
| Series | AMPMODU MOD II |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 16 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 3.5mm |
Key Features
- Shrouded design protects pins and prevents mismating.
- Polarized housing ensures correct orientation during assembly.
- Detent positive locking mechanism provides secure connections.
- Suitable for board-to-board and wire-to-board connector systems.
- Thermoplastic housing enhances durability and withstands temperatures from -65°C to 105°C.
- Phosphor bronze contacts with tin plating offer reliable conductivity and corrosion resistance.
- Standard 2.54 mm row pitch accommodates common PCB layouts.
- Current rating of 3A and maximum voltage of 750V for robust electrical performance.
Product Description
TE Connectivity 280385-1 AMPMODU MOD II Series shrouded PCB header features a 2.54 mm pitch, 16 male contacts arranged in 2 rows with a straight through-hole mounting style. The shrouded housing provides pin protection and polarization to prevent mismating, with a detent window ensuring a positive locking connection with the mating receptacle.
The connector system supports both board-to-board and wire-to-board applications, making it versatile for various electronic assemblies. Constructed with durable thermoplastic housing, this header operates reliably within a temperature range of -65°C to 105°C.
Contacts are made of phosphor bronze with tin plating, ensuring excellent electrical conductivity and corrosion resistance. The component supports a current rating up to 3A and withstands voltages up to 750V, suitable for demanding electronic circuits.
Mounting is through-hole with a tail pin length of 3.5 mm for secure solder connections, ideal for industrial, automotive, telecommunications, medical instruments, storage equipment, and computer systems.
Shrouded design for enhanced pin protection and electrical safety. Polarized housing prevents incorrect assembly and mating. Detent positive lock mechanism enhances mechanical stability. Supports board-to-board and wire-to-board connector applications.
Thermoplastic housing ensures durability in harsh environments. Phosphor bronze contacts with tin plating provide reliable conductivity. Operating temperature from -65°C to 105°C suits industrial use cases. Rated for 3A current and 750V maximum voltage handling.
3.5 mm tail pin length suitable for solder mounting.
This TE Connectivity AMPMODU MOD II PCB header is ideal for industrial, laboratory, telecommunications, automotive, medical, and storage equipment applications. Browse more PCB Headers and connectors in the Electronics Components category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The current rating of this PCB header is 3A.
It can handle a maximum voltage of 750V.
The pitch of the contacts is 2.54 mm.
This header has 16 male contacts arranged in 2 rows.
The contacts are made of phosphor bronze with tin plating, and the housing is constructed from thermoplastic material.
It uses a through-hole mounting style for secure installation.
The tail pin length is 3.5 mm, suitable for solder mounting.
The operating temperature range is from -65°C to 105°C.
It supports both board-to-board and wire-to-board connector systems.
Yes, it features a detent positive locking mechanism to ensure secure connections.
Yes, the shrouded design of the housing protects the pins and prevents mismating.
The country of origin for this PCB header is India.
