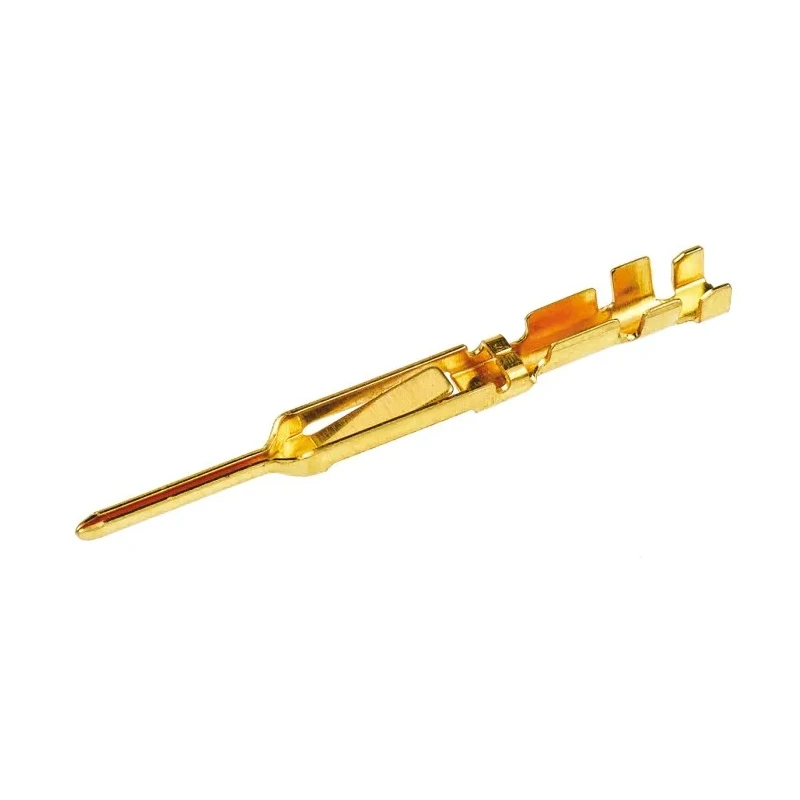

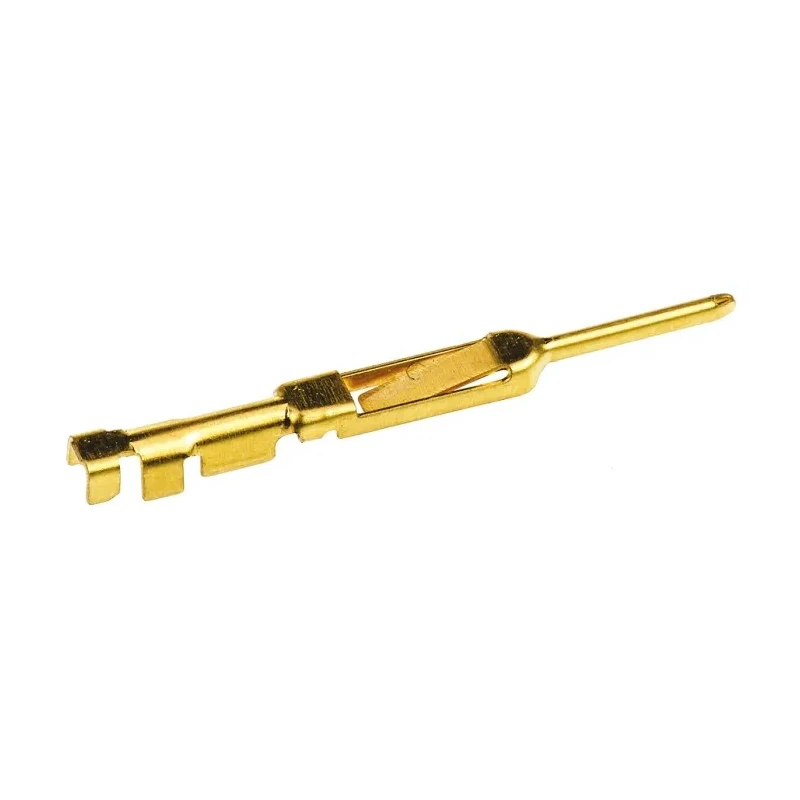

TE Connectivity FFC Series Male Crimp Terminal 2A Current 26 AWG Min Crimp 22 AWG Max 86561-6
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 2A |
| Length | 21.1mm |
| Model | 86561-6 |
| Gender | Male |
| Contact Material | Phosphor Bronze |
| Series | FFC |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| For Use With | FFC Connector Housing |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.1mm² |
| Maximum Wire Size mm² | 0.4mm² |
| Minimum Wire Size AWG | 26AWG |
| Maximum Wire Size AWG | 22AWG |
| Maximum Contact Resistance | 25mΩ |
| 509-2183 | 0.4μm Gold plated on contact area, Gold Flash on remainder, loose |
| 668-9416 | 0.4μm Gold plated on contact area, Gold Flash on remainder, strip |
| 668-9410 | Tin plated all over, strip |
| 668-9429 | Tin plated all over, loose |
Key Features
- Designed for FFC connector housing use to ensure reliable electrical connectivity.
- Constructed with phosphor bronze contact material for enhanced durability.
- Features gold plating with 0.4μm gold on contact area for excellent conductivity.
- Capable of operating within temperature range of -55°C to 105°C for versatile applications.
- Termination type is crimp for secure wire attachment and efficient assembly.
- The length of the contact is 21.1 mm for precise fitting in connectors.
- Minimum contact resistance of 25 mΩ supports efficient signal transmission.
- Compatible with AMPMODU Mod II male pin crimp housing on a 2.54 mm pitch.
Product Description
TE Connectivity 86561-6 is a high-quality FFC Series Male Crimp Terminal designed for wire-to-board and wire-to-wire interconnection applications. It supports a current rating of 2 amperes and fits wire sizes from 26 AWG minimum to 22 AWG maximum. The contact is made from phosphor bronze, providing mechanical strength and resistance to wear and corrosion.
Its contact area is plated with 0.4 microns of gold, offering low contact resistance and reliable signal transfer. The crimp terminal supports operating temperatures from -55°C up to 105°C, making it suitable for demanding environments.
Designed with a 21.1 mm length, this male crimp terminal fits standard FFC connector housings to ensure secure and efficient connections in electronic assemblies. It is compatible with the AMPMODU Mod II system on a 2.54 mm centreline pitch, allowing intermateability with other modular connectors.
The crimp termination securely fastens wires, minimizing signal loss and mechanical failure risks. Its construction is ideal for industrial, electronic, telecommunications, and PCB manufacturing sectors requiring dependable and precise connection solutions.
Supports 26 AWG minimum and 22 AWG maximum wire sizes. Phosphor bronze contact material with gold plating ensuring durability and conductivity. Crimp termination for reliable wire attachment. Wide operating temperature range from -55°C to 105°C.
Length of 21.1 mm for precise connector fitting.
This product is stocked under RS Stock No.: 509-2183 and does not carry additional approvals or certifications. It is supplied new and manufactured under TE Connectivity’s quality standards.
Explore the comprehensive range of Crimp Contacts and related connectors at EnvMart for electronics assembly and wiring solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has a current rating of 2 amperes.
This model supports a minimum wire size of 26 AWG and a maximum wire size of 22 AWG.
The length of the contact is 21.1 mm, designed for precise fitting in connectors.
It uses a crimp termination type for secure wire attachment and efficient assembly.
The contact is made from phosphor bronze and features gold plating with 0.4 microns on the contact area for enhanced conductivity.
It can operate within a temperature range of -55°C to 105°C, making it suitable for various applications.
It is designed for use with FFC connector housings, ensuring reliable electrical connectivity.
The maximum contact resistance is 25 mΩ, supporting efficient signal transmission.
Yes, it is compatible with the AMPMODU Mod II male pin crimp housing on a 2.54 mm pitch.
The country of origin for this crimp terminal is India.
The gold plating enhances conductivity and ensures low contact resistance for reliable signal transfer.
This product does not carry additional approvals or certifications.
