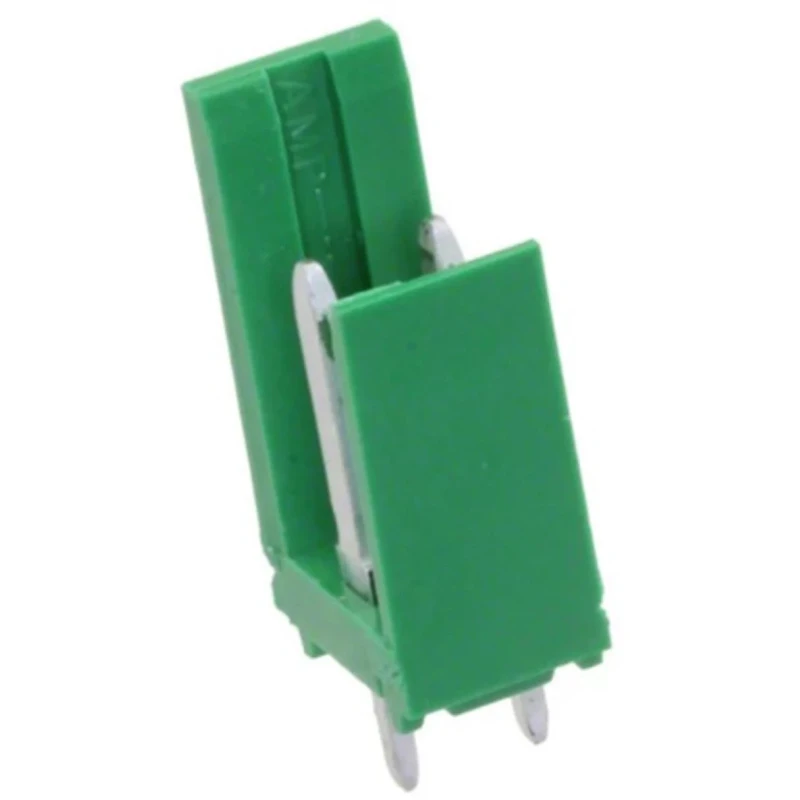

TE Connectivity AMPMODU MOD I Series Straight Through Hole PCB Header, 2 Contact(s), 3.96 mm Pitch, 1 Row, Shrouded 280609-1
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 750V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 3A |
| Model | 280609-1 |
| Mount Type | Through Hole |
| Housing Material | Glass Filled Polycarbonate |
| Contact Material | Phosphor Bronze |
| Series | AMPMODU MOD I |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 1 |
| Pitch | 3.96mm |
| Contact Plating | Tin |
| Number of Contacts | 2 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 3.3mm |
Key Features
- This PCB header has 2 contacts designed for electrical signal or power transmission.
- The pitch between contacts is 3.96 mm, suitable for AMPMODU MOD I series applications.
- Shrouding on two sides provides pin protection and polarization to prevent mismating.
- Constructed with glass filled polycarbonate housing rated UL 94V-1 for flame retardance.
- Contacts are made of phosphor bronze with tin plating for reliable solder termination.
- Mount type is through hole with vertical straight orientation.
- Operating temperature ranges from -65°C to 105°C for extended environmental use.
- Electrical rating is 3 A at 750 V, suitable for various industrial and power supply applications.
Product Description
TE Connectivity 280609-1 AMPMODU MOD I Series PCB Header is a shrouded, straight through hole connector designed for robust and reliable interconnection solutions. Featuring 2 male contacts spaced at 3.96 mm pitch on a single row, this PCB header is manufactured with a flame-retardant glass filled polycarbonate housing rated UL 94V-1 for safety and durability.
Its shrouded design provides protection for the pins and incorporates polarization to prevent mismating, ensuring reliable assembly and service life. The contacts are made of phosphor bronze with tin plating, providing excellent conductivity and solderability for through-hole mounting.
This PCB header supports current up to 3 A and voltage ratings up to 750 V, making it suitable for power supply units, industrial control systems, and switchgear applications requiring sturdy board-to-board or wire-to-board connections.
With an operating temperature range from -65°C to +105°C, it is capable of performing reliably under harsh thermal environments. The tail pin length of 3.3 mm ensures secure solder joints on PCBs.
The compact 3.96 mm pitch and single row configuration allow for efficient PCB layout and assembly in electronic components where space and reliability are critical. This connector is designed to withstand industrial and power electronics environments.
Shrouding and polarization improve mating robustness and protect contact pins. Flame retardant housing ensures compliance with safety standards. Ideal for use in industrial controls, power supplies, and various electronic assemblies requiring dependable connector solutions.
Explore more high-quality PCB connectors and headers in EnvMart's electronics components categories to meet diverse industrial and commercial needs.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The electrical rating of this PCB header is 3 A at 750 V, making it suitable for various industrial and power supply applications.
The pitch between the contacts is 3.96 mm, which is suitable for AMPMODU MOD I series applications.
The housing is made of glass filled polycarbonate rated UL 94V-1 for flame retardance, while the contacts are made of phosphor bronze with tin plating for reliable solder termination.
It operates within a temperature range of -65°C to 105°C, allowing for use in extended environmental conditions.
This PCB header features 2 male contacts arranged in a single row.
The termination type for this connector is solder, designed for through-hole mounting.
The tail pin length is 3.3 mm, ensuring secure solder joints on PCBs.
The orientation of this model is straight, which is typical for through-hole connectors.
This connector is shrouded, providing pin protection and polarization to prevent mismating.
It supports board-to-board and wire-to-board connections, making it versatile for various applications.
The country of origin for this PCB header is India.
This connector is suitable for use in industrial controls, power supplies, and various electronic assemblies requiring dependable connections.
