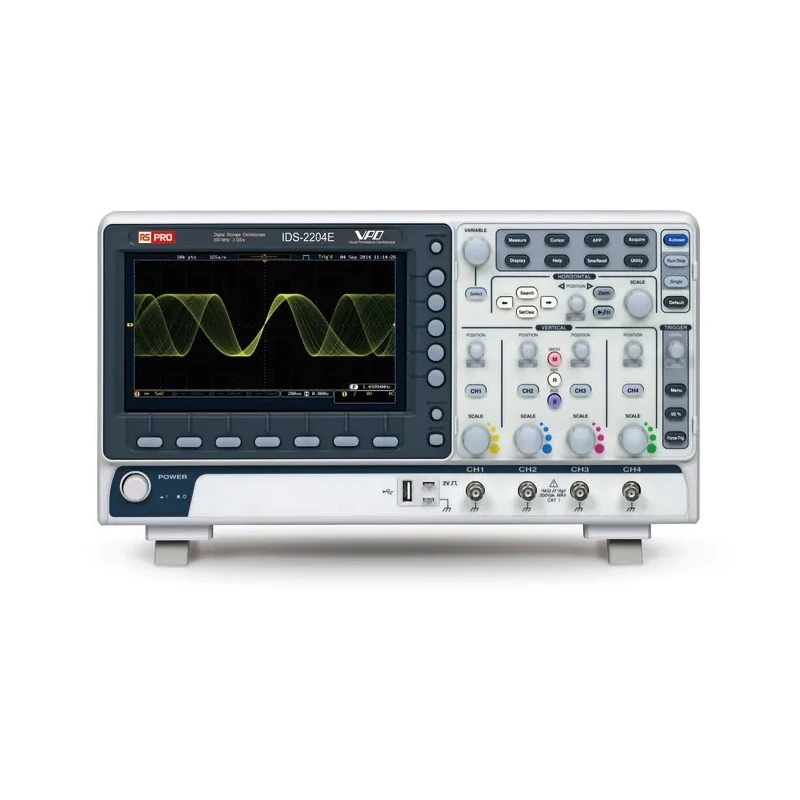

RS PRO 200 MHz Bench Oscilloscope, 4 Channels, Digital Storage, 8 inch LCD IDS-2000E Series 123-3553

RS PRO 123-3553 is a 200 MHz Bench Oscilloscope with 4 channels and digital storage capabilities, designed for professional electronic signal testing and analysis.

This IDS-2000E Series model integrates Visual Persistence Oscilloscope (VPO) technology, delivering fast and clear waveform rendering via a high-density IC that accelerates data processing. The 8 inch 800 x 480 TFT LCD display provides excellent clarity for viewing complex and transient signal waveforms, with a maximum vertical sensitivity range from 1 mV/div up to 10 V/div.

With a memory depth of 1 Mpts and waveform update rate of 120,000 per second, this oscilloscope efficiently captures transient signals and detailed waveform information. Multiple serial bus interfaces including CAN, IIC, LIN, RS232, RS422, RS485, SPI, UART, and USB enable versatile communication and integration options for diverse test setups.

Other features include digital filtering for signal noise reduction, segmental waveform and search functions for efficient waveform analysis, and datalogging to record long-period waveform events. Network storage capabilities facilitate remote data management.

Compliant with CE and EN 61340 standards, this model is built with safety category ratings CAT I and CAT II for operation up to 300 V, ensuring safe use in various electrical environments.

The compact bench form factor measures 384 mm width, 208 mm height, and 127.3 mm depth, weighing 2.8 kg, making it suited for laboratory, educational, product development, quality assurance, and service operation applications.

Equipped with a bandwidth of 200 MHz to capture fast signal dynamics. Features 4 input channels for simultaneous multi-signal measurement. Incorporates an 8 inch 800 x 480 TFT LCD display for clear waveform visualization.

Provides a memory depth of 1 Mpts supporting extended waveform storage. Includes multiple interface protocols such as CAN, IIC, LIN, RS232, RS422, RS485, SPI, UART, and USB. Offers fast waveform refresh rate up to 120,000 waveforms per second.

Supports high vertical sensitivity range from 1 mV/div to 10 V/div. Offers waveform update and digital filtering capabilities for enhanced signal clarity. Designed with safety categories CAT I and CAT II rated for up to 300 V.

Compact dimensions of 384 x 208 x 127.3 mm with a weight of 2.8 kg.

This RS PRO bench oscilloscope series is ideal for professional electronic testing and troubleshooting in industrial laboratories, educational institutes, product development, and service operations. Its advanced features and robust design make it a dependable instrument for detailed waveform analysis and signal diagnostics.
