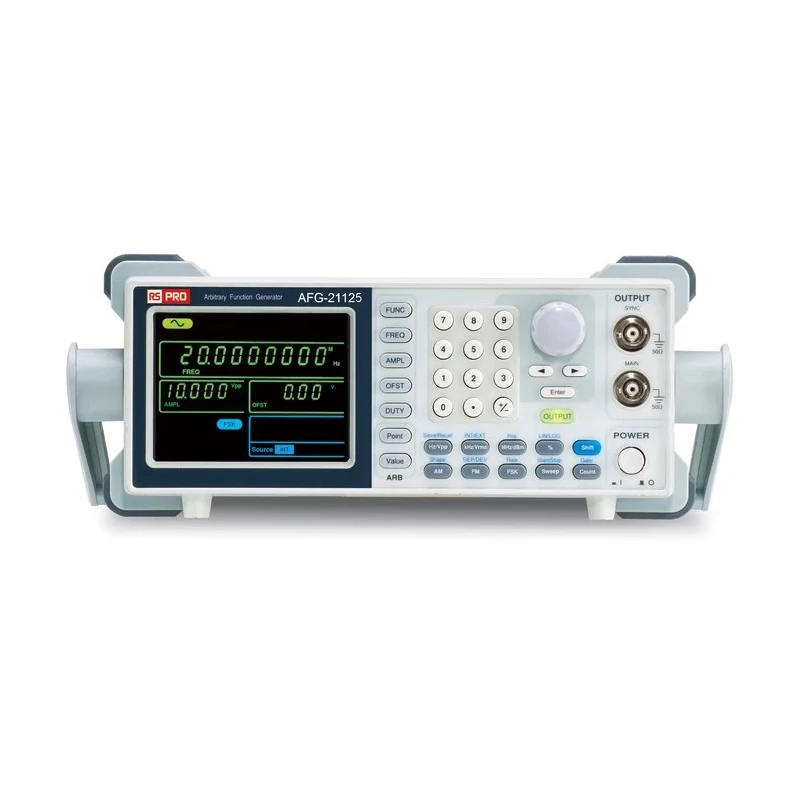

RS PRO Function Generator & Counter 0.1 Hz to 25 MHz Frequency Range with FM Modulation AFG21125

RS PRO AFG21125 is a high-quality function generator and frequency counter covering a broad frequency range from 0.1 Hz to 25 MHz, suitable for industrial, laboratory, test and measurement applications. It supports multiple waveform outputs such as sine, square, ramp, noise, and arbitrary waveforms, making it versatile for signal generation needs.

The unit features a large 3.5-inch LCD screen facilitating easy monitoring of waveform parameters including amplitude and DC offset simultaneously. This professional-grade instrument offers a 20MSa/s sampling rate, 10-bit vertical resolution, and a 4k point memory for arbitrary waveform generation. Adjustable duty cycle ranges from 1% to 99% for square waveforms provide enhanced control in waveform output.

The generator includes FM modulation and variable sweep functionality combined with AM/FM/FSK modulation, sweep, and frequency counter capabilities, designed specifically for models like AFG21125. USB device interface allows remote control and waveform editing functions, enhancing operational flexibility. The device is built for stability and durability with a weight of 2.5 kg and compact dimensions (293 mm width x 266 mm length x 107 mm height).

Designed for reliability, it operates efficiently within a temperature range of 0°C to 40°C and meets CE standards. The output impedance is 300Ω and input impedance 1kΩ, offering compatibility with various test systems. Coupled with digital amplitude, offset features, and built-in trigger selection, it enables precise waveform control. The AFG-21100 range package includes a power cord, multiple test leads, and an instruction manual for user convenience.

This function generator supports multiple waveform outputs including sine, square, ramp, noise, and arbitrary signals. Its large LCD screen delivers clear, simultaneous parameter display for amplitude, DC offset, and other key settings.

Adjustable square waveform duty cycle from 1% to 99% offers superior modulation control. USB interface enables remote operation and waveform editing on connected devices. Equipped with AM/FM/FSK modulation, sweep, and frequency counter functions for advanced applications.

Compact and portable design with dimensions 293 mm x 266 mm x 107 mm and weight of 2.5 kg. Operates reliably within 0°C to 40°C temperature environment, compliant with CE standards. Includes accessories such as power cord, test leads, and instruction manual for immediate setup.

This professional RS PRO Function Generator and counter is ideal for industrial, laboratory, educational, and electronics testing applications requiring precise, versatile waveform generation and frequency counting. Explore more in the industrial measuring instruments category for comprehensive signal generator options on EnvMart.
