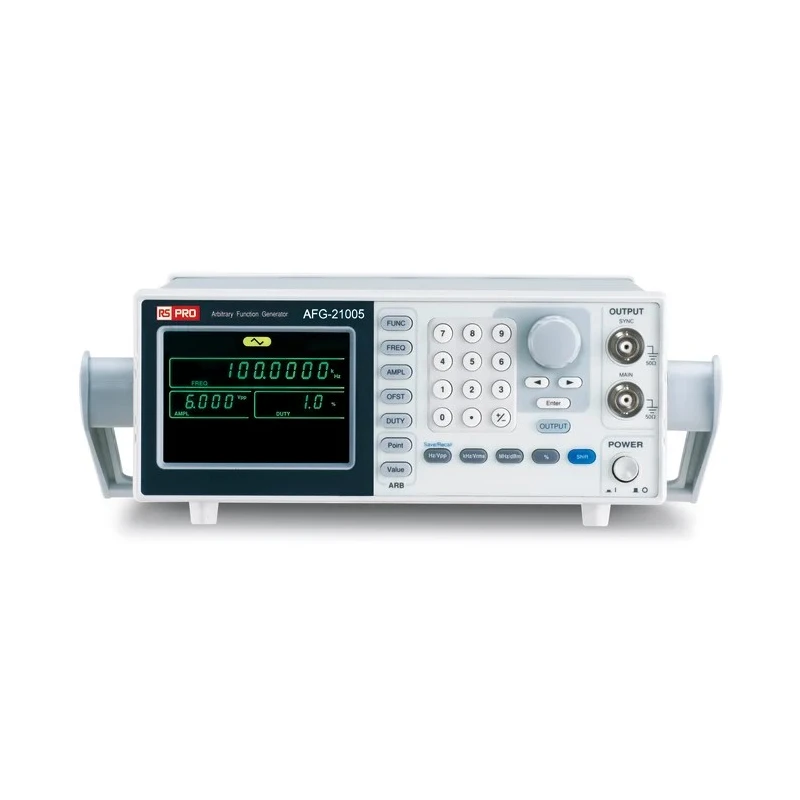

RS PRO 2 Channel Function Generator, 0.1 Hz to 5 MHz Frequency Range, USB Interface, CE Certified AFG21005

The RS PRO AFG21005 is a sophisticated 2 channel function generator offering a frequency range from 0.1 Hz up to 5 MHz, suitable for industrial, laboratory, and electrical test environments. This function generator features Direct Digital Synthesis (DDS) technology, enabling the generation of various waveforms including sine, square, ramp, noise, and arbitrary signals with high fidelity and resolution.

The unit is equipped with a clear 3.5-inch LCD that concurrently displays waveform parameters such as amplitude and DC offset, enhancing ease of operation. The device supports a high sampling rate of 20MSa/s and provides 10-bit vertical resolution along with 4k point memory for complex arbitrary waveform generation, making it ideal for precise signal simulation.

Designed for versatility, it supports frequency bands with 0.11 Hz resolution and includes an adjustable duty cycle ranging from 1% to 99% for the square waveform output, allowing refined control over pulse signals. User inputs are simplified through a numeric keypad and built-in trigger options, while the USB device interface allows remote control and waveform editing, facilitating integration into automated test systems.

The compact instrument conforms to CE standards and operates reliably within an ambient temperature range of 0°C to 40°C with a time base accuracy of ±20 ppm. With input and output impedance values optimized for test setups, this function generator is engineered to meet rigorous testing demands in research, development, manufacturing, and quality assurance sectors.

Generates multiple waveform types including sine, square, ramp, noise, and arbitrary waveforms. High resolution 3.5-inch LCD with digital amplitude and offset display. 20MSa/s sampling rate with 10-bit resolution and 4k memory points.

Adjustable duty cycle from 1% to 99% suitable for diverse pulse applications. Remote control enabled via USB interface for integration with automated systems. CE certification ensures compliance with safety and performance standards.

Compact form factor with precise frequency control and stable output. Applicable in industrial, laboratory, and commercial test and measurement environments. Supplied with power cord, test lead, and comprehensive instruction manual for ease of use and setup.
