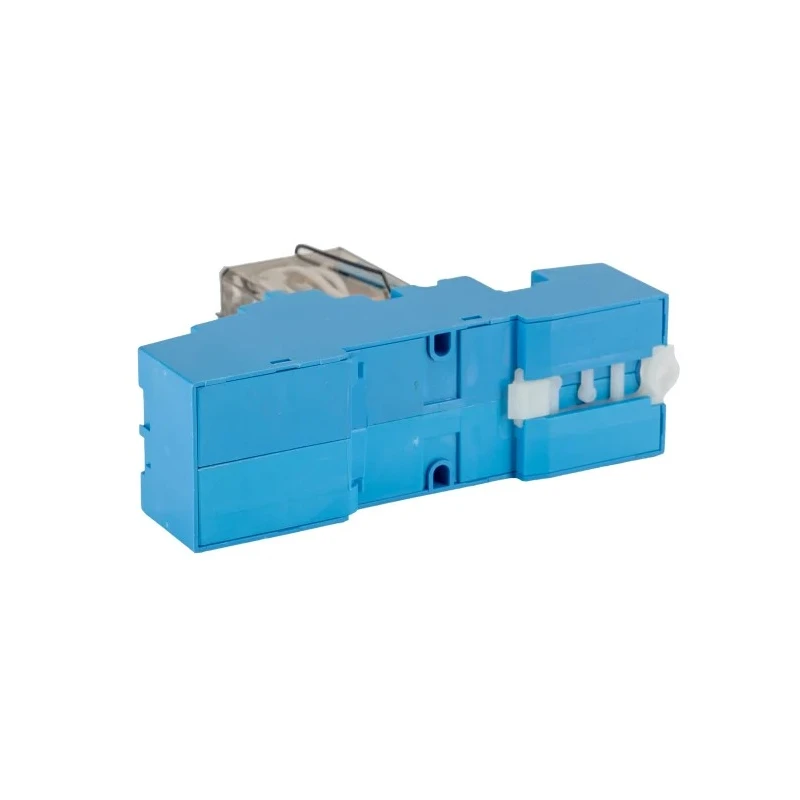

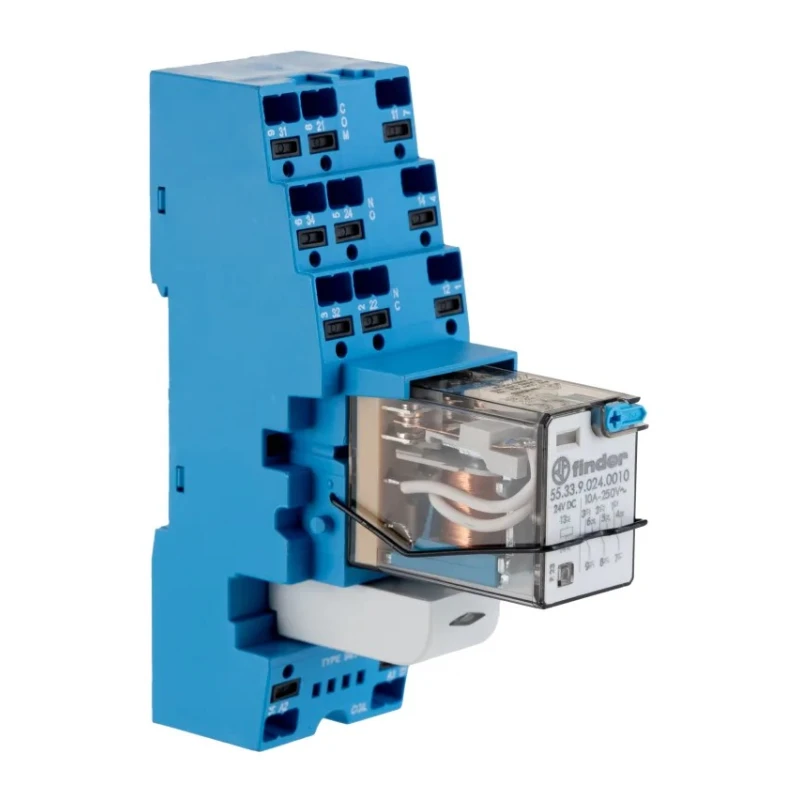

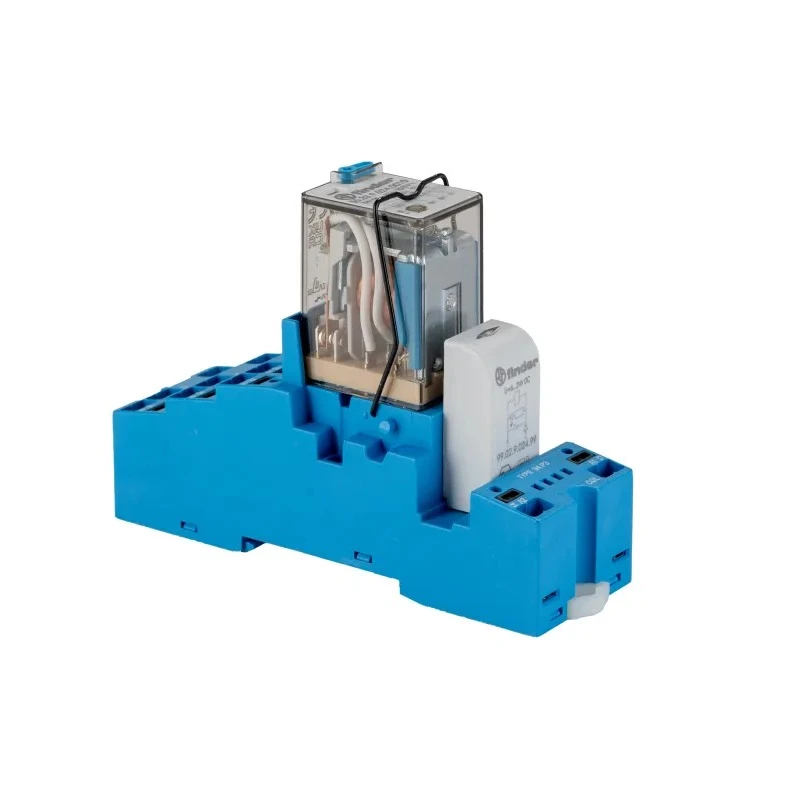

Finder Electromechanical Interface Relay 24V DC Coil 3PDT 10A Push-in Terminal DIN Rail Mount 58.P3.9.024.0050SMA
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | Finder |
| Height | 95.5mm |
| Length | 31mm |
| Model | 58.P3.9.024.0050SMA |
| Width | 86.3mm |
| Mount Type | DIN Rail |
| Contact Material | Silver Alloy |
| Series | 58 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | 3PDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | Push-in |
| Standards/Approvals | RoHS |
| Coil Resistance | 600Ω |
| Coil Voltage | 24V dc |
| Coil Current | 40mA |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 400V ac |
Key Features
- Operates with a 24V DC coil and 40mA coil current for efficient switching.
- Features a 3PDT contact configuration supporting switching currents up to 10A.
- Equipped with push-in terminals for secure and easy wiring connections.
- Designed for DIN rail mounting enabling compact installation in control panels.
- Supports switching AC voltage up to 400V and DC voltage up to 30V for versatile use.
- Constructed with silver alloy contacts for high durability and conductivity.
- Works reliably within a temperature range from -40°C to 70°C for industrial environments.
- Compact dimensions of 95.5mm height, 86.3mm width, and 31mm length for space-saving integration.
Product Description
Finder 58.P3.9.024.0050SMA electromechanical interface relay features a 24V DC coil voltage and 3PDT contact configuration designed for effective switching in automation, industrial control, and electrical applications. This relay is intended for DIN rail mounting and offers a robust solution for machinery control, HVAC systems, lighting management, and safety circuit applications.
The relay's coil resistance is 600Ω and operates at a coil current of 40mA. It can safely switch currents up to 10A with AC voltage ratings up to 400V and DC voltage up to 30V, suitable for a range of load types. Push-in terminals provide secure and convenient wiring, reducing installation time while enhancing connection reliability.
With a durable silver alloy contact material, this relay ensures excellent conductivity and resistance to wear in switching operations. It operates reliably across a wide temperature range from -40°C to 70°C, making it suitable for stringent industrial environments. The compact dimensions (95.5mm height, 86.3mm width, 31mm length) allow integration into confined control panels and systems.
Certified to RoHS standards, the Finder Series 58 relay offers long mechanical lifespan with up to 200,000 cycles. Its identification label aids easy product tracking and maintenance. Typical applications include industrial machinery control, HVAC temperature management, safety shutdown circuits, and lighting system controls.
Operates with 24V DC coil voltage and 40mA coil current. 3PDT configuration supports versatile switching functions. Push-in terminals for easy and secure electrical connections. DIN rail mounting facilitates installation in control panels.
Handles switching currents up to 10A with AC voltage up to 400V. Silver alloy contacts ensure durability and conductivity. Wide operating temperature range from -40°C to 70°C. Compact size and compliance with RoHS standards.
Mechanical endurance up to 200,000 cycles for long service life.
Suitable for various industrial and commercial environments including manufacturing automation, electrical control systems, HVAC installations, safety circuits, and lighting control applications.
Explore more options within the Electromechanical Interface Relays category at EnvMart for comprehensive electrical and automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 24V DC.
It can safely switch currents up to 10A.
This model features a 3PDT (three pole double throw) contact configuration.
It operates reliably within a temperature range from -40°C to 70°C.
The dimensions are 95.5mm in height, 86.3mm in width, and 31mm in length.
It is equipped with push-in terminals for secure and easy wiring connections.
It can switch AC voltage up to 400V and DC voltage up to 30V.
The coil current is 40mA.
The contacts are constructed from silver alloy, which provides high durability and conductivity.
Yes, it is certified to RoHS standards.
It has a mechanical endurance of up to 200,000 cycles.
This model is designed for DIN rail mounting, allowing for compact installation in control panels.
