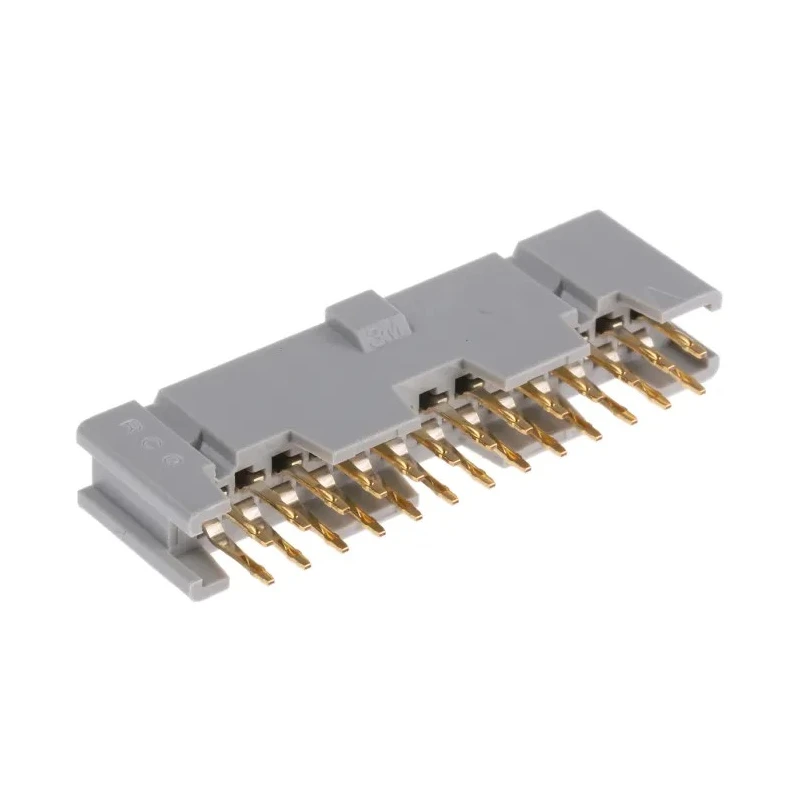

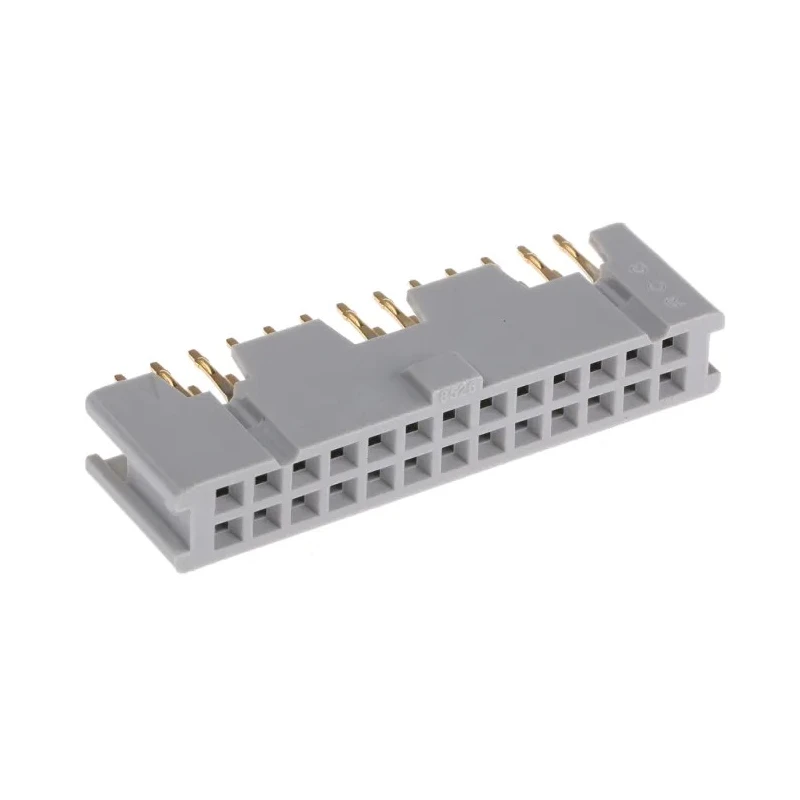

3M 8500 Series Straight Through Hole PCB Socket 26-Contact 2 Row 2.54 mm Pitch Solder 8526-4500PL

Free Delivery in India | Lowest Global Shipping Charges

3M 8500 Series Straight Through Hole PCB Socket 26-Contact 2 Row 2.54 mm Pitch Solder 8526-4500PL



Category PCB Socket Brand 3M Condition New

Specifications

Country of Origin	Japan
Voltage	1kV
Brand	3M
Orientation	Straight
Current	12A
Model	8526-4500PL
Mount Type	Through Hole
Housing Material	Glass Filled Polyester
Contact Material	Copper
Series	8500
Termination Type	Solder
Maximum Operating Temperature	105°C
Sub Type	Socket Strip
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Gold, Nickel
Number of Contacts	26
Contact Gender	Female
Connector System	Board-to-Board
Stacking Height	10.8mm
Connector,rectangular,straight,PCB mount,socket,26 wayBrand	3M

Key Features

This 3M PCB socket features a glass-filled polyester housing for durability.
The copper contacts plated with gold and nickel ensure excellent conductivity.
Designed with through-hole mounting and straight orientation for easy installation.
Operating temperature ranges from -55°C to 105°C, suitable for harsh environments.
Supports board-to-board connector system with centerbump polarization for proper alignment.
Compact stacking height of 10.8 mm saves space on PCBs.
Ideal for consumer electronics, automation control, and electrical engineering applications.
Manufactured in Japan ensuring high quality and reliability.

Product Description

3M 8526-4500PL 8500 Series Straight Through Hole PCB Socket is a high-quality connector designed for secure and efficient board stacking applications. It provides 26 female contacts arranged in 2 rows with a precise 2.54 mm pitch, utilizing solder termination for dependable electrical connections.

The socket housing is made from glass-filled polyester certified with UL 94V-0 rating, providing fire resistance and mechanical strength. The copper alloy contacts plated with gold over nickel offer excellent conductivity and corrosion resistance, ensuring signal integrity.

The connector is mounted through-hole style with straight orientation, facilitating simple installation on printed circuit boards. It features a stacking height of 10.8 mm, achieving compactness without compromising functionality. The connector system is board-to-board with centerbump polarization that guarantees correct mating and alignment with low-profile shrouded headers.

Operating across a wide temperature range from -55°C to 105°C, this PCB socket is suitable for industrial, consumer electronics, automation control, and electrical engineering environments where durability under extreme conditions is required.

Being a product of 3M, a global leader in connector technology, the 8500 Series socket is backed by reliable design and manufacturing standards. It helps facilitate modular PCBs assembly with ease and longevity.

Glass-filled polyester housing for robustness and fire resistance. Copper contacts with gold and nickel plating for superior conductivity. Through-hole mount with straight orientation for easy PCB integration. Supports 12A current and 1kV voltage rating.

Wide operating temperature from -55°C to +105°C suitable for harsh environments. Centerbump polarization ensures correct header alignment. Compact 10.8 mm stacking height. Made in Japan to high manufacturing standards. Explore EnvMart's electronics components category for more advanced 3M connectors and PCB Sockets.
