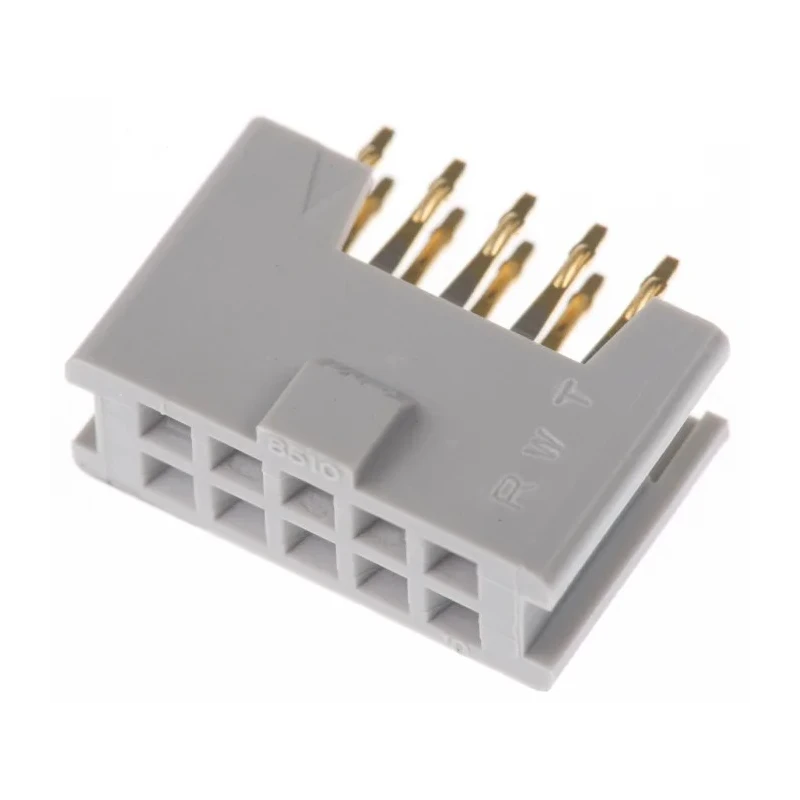

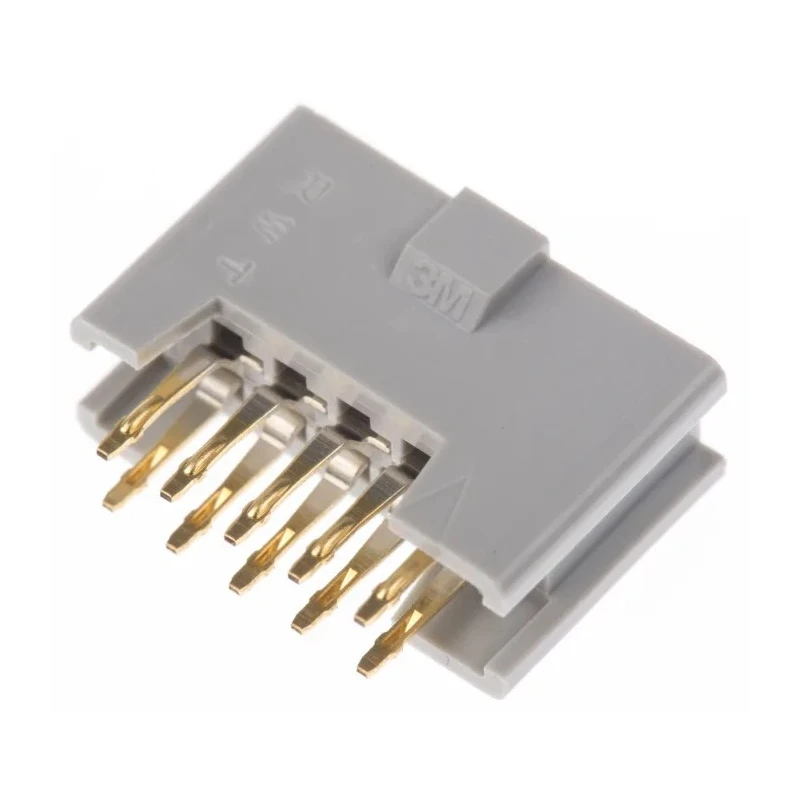

3M 8500 Series Straight Through Hole PCB Socket, 10-Contact, 2 Row, 2.54 mm Pitch, Solder Termination 8510-4500PL

3M 8510-4500PL 8500 Series straight through hole PCB socket is a high-quality connector offering 10 female contacts configured in 2 rows with a 2.54 mm pitch. Manufactured with glass filled polyester housing that is UL 94V-0 rated, this PCB socket is designed to provide robust mechanical stability and excellent electrical performance.

The socket features centerbump polarization to ensure proper mating with compatible low profile shrouded headers, providing secure PCB retention suitable for board stacking systems such as mother/daughter board configurations.

Rated for 1 amp current and 1kV voltage, the contacts are made of copper and plated with nickel to enhance conductivity and resistance to oxidation. The through hole mount and straight orientation facilitate straightforward solder termination and integration onto PCB assemblies.

Operating temperature ranges from -55°C to 105°C, making this socket suitable for demanding industrial and commercial electronic applications. Common uses include computer electronics, telecommunications, and instrumentation where reliable and compact board-to-board connections are required.

Glass filled polyester housing with UL 94V-0 flame rating. Centerbump polarized design ensures correct insertion and retention. 10 contacts in 2 rows with 2.54 mm pitch spacing. Copper contacts with nickel plating for durability.

Through hole mount type with solder termination. Supports 1 amp current and 1kV operating voltage. Wide operating temperature range from -55°C to 105°C.

This PCB Socket is made in Japan by 3M, a globally recognized brand for electrical and electronic interconnect solutions. It is suited for various industrial electronics, laboratory equipment, and manufacturing automation systems.
