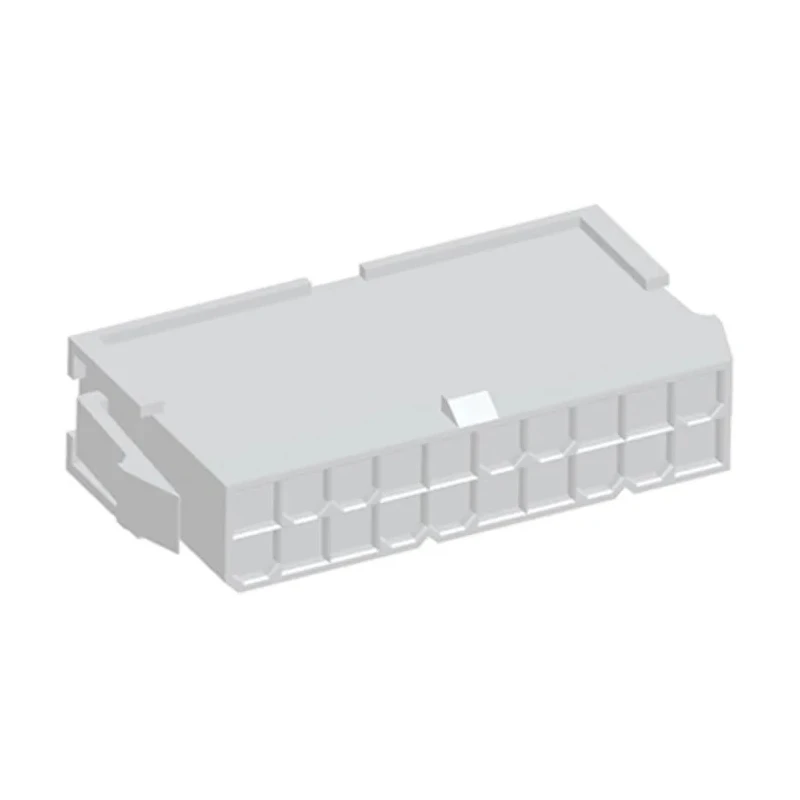

TE Connectivity VAL-U-LOK Male Connector Housing 4.2 mm Pitch 20 Way 2 Row Straight 2-2296207-0
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Orientation | Straight |
| Length | 43.2mm |
| Width | 23.9mm |
| Mount Type | Panel Mount |
| Housing Material | Polyamide |
| Series | VAL-U-LOK |
| Number of Rows | 2 |
| Pitch | 4.2mm |
| For Use With | Wire to Panel Connector, Wire to Wire Connector |
| Number of Contacts | 20 |
| Connector Gender | Male |
Key Features
- Features an easy mate and unmate design for efficient connection.
- Includes keying for precise mating alignment to prevent misconnection.
- Integral housing locking latch ensures secure connection during usage.
- Accommodates Terminal Position Assurance (TPA) devices to prevent terminal back-out due to vibration or shock.
- Constructed from polyamide housing material providing durability and compliance with safety standards.
- Suitable for panels with a maximum thickness of 2.00 mm.
- Compatible with separate crimp pin contacts and TPA devices, which are sold separately.
- Widely used in household appliances, industrial controls, HVAC systems, security, and lighting applications.
Product Description
TE Connectivity 2-2296207-0 VAL-U-LOK male connector housing offers a high-quality 4.2 mm pitch, 20 way, 2 row straight panel mount design suitable for wire to wire and wire to panel applications. Constructed using durable polyamide material, it ensures resistance to environmental stresses and mechanical reliability.
This connector showcases an easy mate and unmate design, supported by keying features that prevent incorrect mating. The integral housing locking latch mechanism stabilizes the connector during operation, providing dependable electrical connectivity in diverse industrial and commercial environments.
Terminal Position Assurance (TPA) devices can be optionally added to this housing to secure terminals against back-out caused by vibration, shock, or pulling forces. These TPA devices, along with compatible crimp pin contacts, are available separately, allowing flexible customization to application requirements.
The housing complies with UL 94V-0 flammability rating and glow wire tests, assuring safety in electrical installations. It mounts efficiently on panels with thicknesses up to 2.00 mm, making it versatile for use in different assembly contexts.
Typical applications span household appliances, desktop and networking computers, indoor and outdoor lighting, security systems, industrial controls, and HVAC control systems. This broad utility underscores the connector’s design focus on robustness and adaptability.
Easy mate and unmate design enhanced with keying for accurate alignment. Integral housing locking latch for secure connection. Supports Terminal Position Assurance devices to prevent terminal withdrawal. Durable polyamide housing material with UL 94V-0 and glow wire compliance.
Mounts on panels up to 2.00 mm thickness. Compatible with separate crimp pin contacts and TPA devices. Ideal for a wide range of industrial, commercial, and domestic applications.
Experience reliable and secure connectivity with TE Connectivity VAL-U-LOK series Connector Housings. Explore more connectors and related components in the Electronics Components category on EnvMart for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector housing features a 4.2 mm pitch and accommodates 20 contacts.
The housing is constructed from polyamide material, providing durability and compliance with safety standards.
It can be mounted on panels with a maximum thickness of 2.00 mm.
It is widely used in household appliances, industrial controls, HVAC systems, security, and lighting applications.
Yes, it features an integral housing locking latch that ensures a secure connection during usage.
Yes, it accommodates Terminal Position Assurance (TPA) devices to prevent terminal back-out due to vibration or shock.
This model has a straight orientation.
The dimensions of this connector housing are 43.2 mm in length and 23.9 mm in width.
Yes, it is compatible with separate crimp pin contacts, which are sold separately.
The housing complies with the UL 94V-0 flammability rating.
This connector housing belongs to the VAL-U-LOK series by TE Connectivity.
It is suitable for both wire to wire and wire to panel connections.
