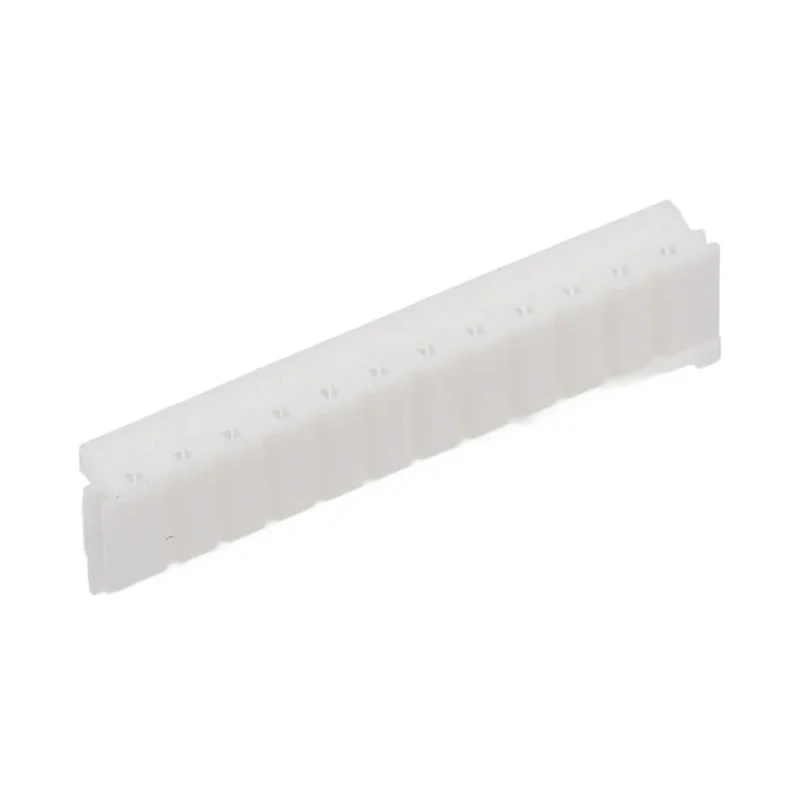

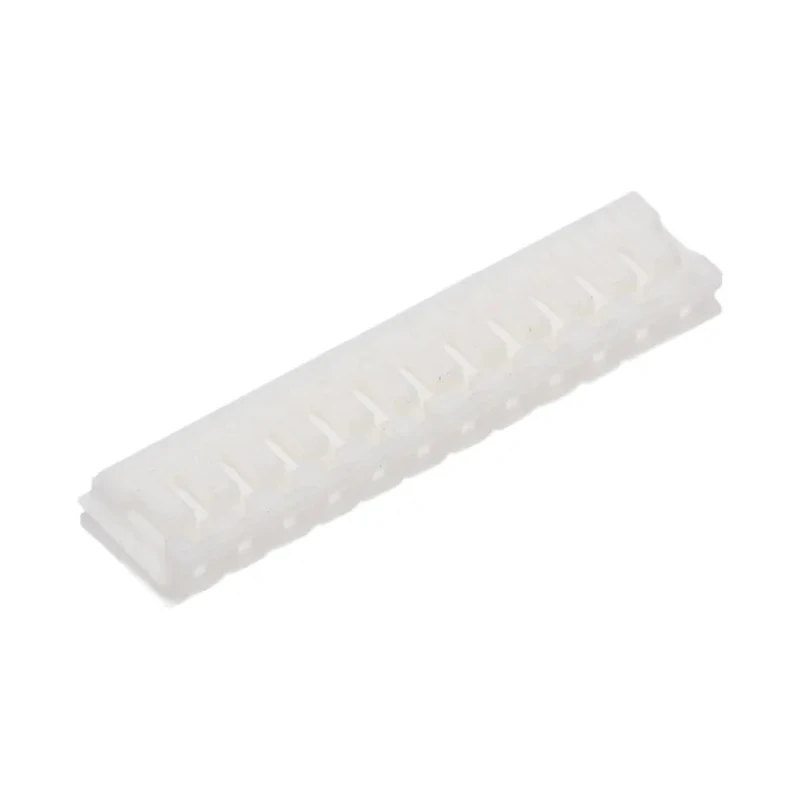

JST EH Female Connector Housing 2.5 mm Pitch 12 Way 1 Row Straight EHR-12

Free Delivery in India | Lowest Global Shipping Charges

JST EH Female Connector Housing 2.5 mm Pitch 12 Way 1 Row Straight EHR-12



Category Connector Housing Brand JST Condition New

Specifications

Country of Origin	India
Brand	JST
Orientation	Straight
Length	32mm
Model	EHR-12
Width	3.8mm
Mount Type	Cable
Housing Material	Nylon
Series	EH
Number of Rows	1
Pitch	2.5mm
For Use With	Disconnectable Crimp Connector
Number of Contacts	12
Connector Gender	Female

Key Features

The connector is designed with a 2.5 mm pitch for precise, high density connections.
It features 12 contacts arranged in a single row for efficient wiring.
Constructed from durable nylon material ensuring good mechanical strength.
Compatible with disconnectable crimp connectors for ease of assembly.
Offers a slim and compact design suitable for space-constrained applications.
Includes polarizing guides to ensure correct mating and reliability.
Designed for cable mounting with a straight orientation for simplified installation.
Part of JST's EH series, known for reliable crimp style socket housings.

Product Description

JST EHR-12 female connector housing is a 2.5 mm pitch, 12 way, single row straight cable mount connector housing designed for use with disconnectable crimp connectors. Manufactured from high-quality nylon, this housing provides a slim and compact form factor ideal for high density PCB connections and wiring harnesses.

Part of the EH series from JST, this connector housing offers excellent low contact resistance and high reliability, making it suitable for demanding industrial and electronic equipment applications. Its straight orientation and polarizing guides promote precise mating for enhanced performance.

The robust nylon construction ensures mechanical durability while maintaining a lightweight profile, and the housing length of 32 mm and width of 3.8 mm supports easy integration into various assemblies. This connector housing is ideal for applications requiring reliable and compact wire to PCB interconnections in fields such as industrial manufacturing, electronic instrumentation, HVAC control, and telecommunications.

The connector is designed with a 2.5 mm pitch for precise, high density connections. It features 12 contacts arranged in a single row for efficient wiring. Constructed from durable nylon material ensuring good mechanical strength.

Compatible with disconnectable crimp connectors for ease of assembly. Offers a slim and compact design suitable for space-constrained applications. Includes polarizing guides to ensure correct mating and reliability. Designed for cable mounting with a straight orientation for simplified installation.

Part of JST's EH series, known for reliable crimp style socket housings. Provides low contact resistance and high reliability in electronic assemblies. Ideal for industrial electronics, PCB connections, and electronic equipment wiring.

Choose JST EHR-12 female connector housings for your projects to ensure quality, reliability, and efficient high-density electronic connections. Browse more Connector Housings and electronic components on EnvMart.
