JST EH Female Connector Housing 2.5 mm Pitch 11 Way 1 Row Straight EHR-11

Free Delivery in India | Lowest Global Shipping Charges

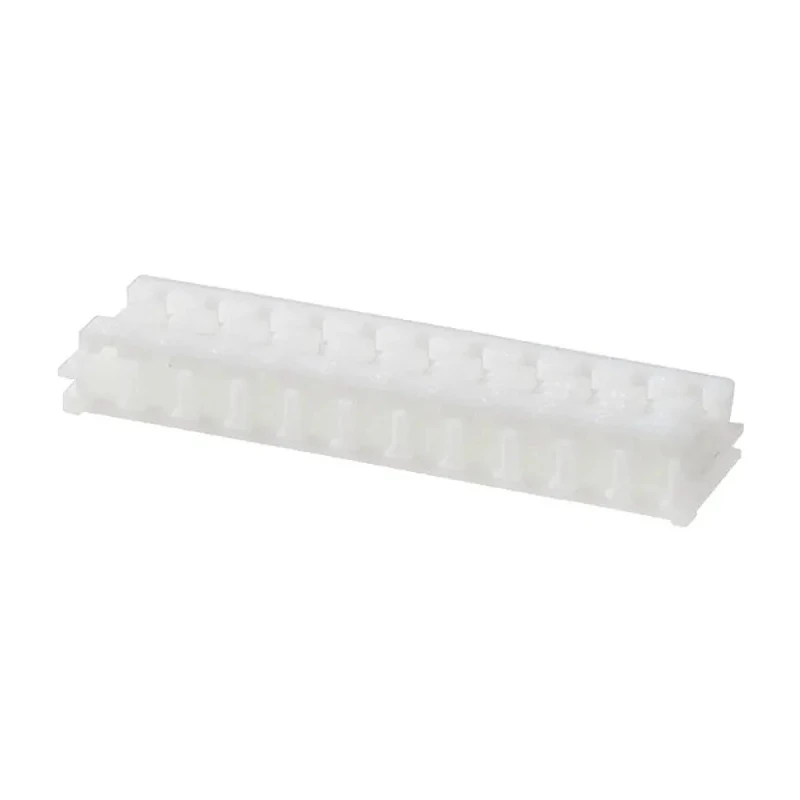

JST EH Female Connector Housing 2.5 mm Pitch 11 Way 1 Row Straight EHR-11



Category Connector Housing Brand JST Condition New

Specifications

Country of Origin	India
Brand	JST
Orientation	Straight
Length	29.5mm
Model	EHR-11
Width	3.8mm
Mount Type	Cable
Housing Material	Nylon
Series	EH
Number of Rows	1
Pitch	2.5mm
For Use With	Disconnectable Crimp Connector
Number of Contacts	11
Connector Gender	Female

Key Features

This connector housing features 2.5 mm pitch for compact layouts.
It has 11 contact positions arranged in a single row.
Constructed with durable nylon housing for insulation and strength.
Designed as a female connector housing compatible with disconnectable crimp connectors.
Orientation is straight for easy cable routing.
Compact dimensions include 29.5 mm length and 3.8 mm width.
Offers high reliability with low contact resistance connections.
Polarizing guides ensure proper mating with counterpart connectors.

Product Description

JST EHR-11 EH Female Connector Housing is a 2.5 mm pitch, 11 way, single row straight connector housing designed for cable mounting applications. It is part of the EH Series crimp socket connector housings known for slim and compact designs ideal for high-density PCB connections.

The housing is made from nylon material which provides excellent insulation and mechanical durability. It features polarizing guides that prevent incorrect mating, enhancing the reliability of electronic assemblies.

This female connector housing is compatible with disconnectable crimp connectors and is designed to deliver low contact resistance, ensuring efficient electrical conduction. With 11 contacts in a single row and dimensions of 29.5 mm length and 3.8 mm width, it fits compact PCB layouts perfectly.

The EH series connectors are widely used across industrial, electronic manufacturing, communication, and instrumentation sectors where dependable, high performance connections are crucial.

This connector housing features 2.5 mm pitch for compact layouts. It has 11 contact positions arranged in a single row. Constructed with durable nylon housing for insulation and strength. Designed as a female connector housing compatible with disconnectable crimp connectors.

Orientation is straight for easy cable routing. Compact dimensions include 29.5 mm length and 3.8 mm width. Offers high reliability with low contact resistance connections. Polarizing guides ensure proper mating with counterpart connectors.

Suitable for high-density connections in electronic assemblies. Ideal for industrial, electronic, and communication equipment applications.

For professionals designing dense electronic circuits, the JST EH Female Connector Housing EHR-11 offers dependable, space-efficient connectivity solutions. Compatible design and ease of assembly make it a preferred choice in PCB component housing.
