Infineon Double Hall-Effect Sensor Evaluation Board 2.7V to 24V Supply S2GO2HALLTLE4966KTOBO1

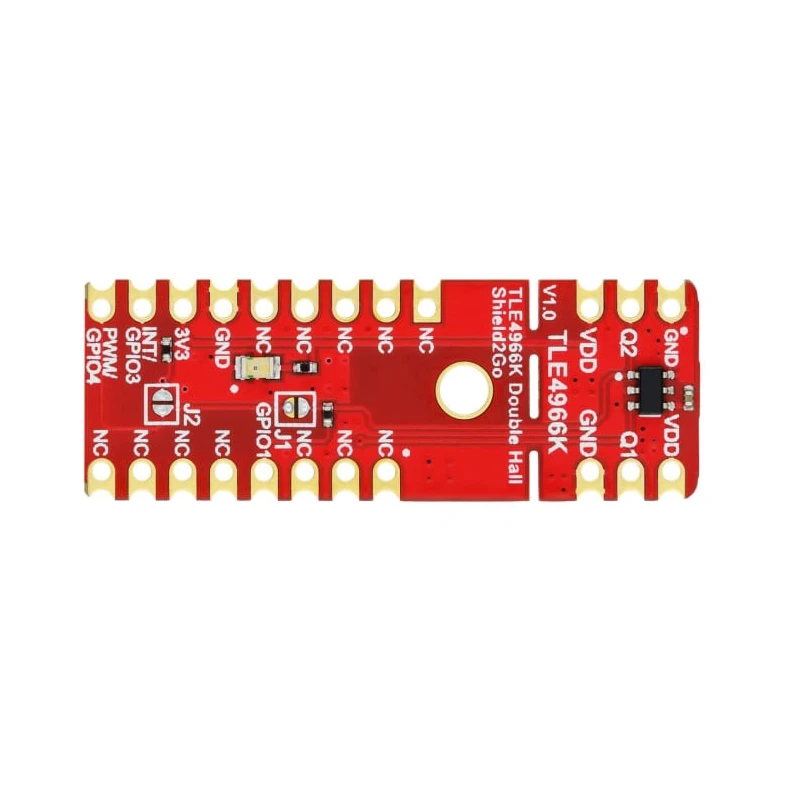

Infineon S2GO2HALLTLE4966KTOBO1 is a Double Hall-Effect Sensor Evaluation Board designed for highly accurate magnetic field sensing applications. With a supply voltage range from 2.7 V to 24 V, this evaluation board supports operation from unregulated power supplies, making it suitable for diverse electronics development setups.

The integrated TLE4966K sensor on the board utilizes advanced XENSIV technology with active compensation circuits and chopper techniques to achieve precise magnetic switching points and exceptional temperature stability. It provides both speed and direction signals, delivering critical data for timing and motion control in various industrial and IoT systems.

Robust in design, the sensor includes active error compensation to resist mechanical stress and offers reverse battery protection of up to -18 V to ensure durability in challenging environments. It can withstand peak temperatures up to 195°C without damage, making it ideal for applications requiring high thermal tolerance.

Outputs are digital with low jitter, featuring a bipolar version with two tightly matched Hall probes spaced 1.45 mm apart. The direction signal is output before the speed signal, enabling accurate rotational direction detection in electromechanical systems.

This evaluation board is supplied as a ready-to-use kit with an Arduino library for fast and efficient system development. It integrates easily with Shield2Go boards and Infineon My IoT adapters, facilitating rapid prototyping with popular platforms such as Arduino and Raspberry Pi.

Common applications include index counting, rotational speed and direction detection, motor-driven positioning systems, window lifts, power closing systems, sun blinds, and garage doors.

The compact SMD package PG-TSOP6-6-5 enables mounting in space-constrained electronics projects, while the board’s features ensure reliable, accurate magnetic sensing for laboratory, industrial, and IoT development contexts.

Operates on a wide voltage range from 2.7 V to 24 V. High magnetic switching sensitivity with superior temperature stability. Active error compensation for durability against mechanical stress. Reverse battery protection of -18 V for enhanced reliability.

Digital bipolar output signals with low jitter and dual Hall probes. Includes Arduino library and compatibility with Shield2Go and IoT adapters. Suitable for speed/direction detection in motor control and positioning. Compact SMD PG-TSOP6-6-5 package for efficient PCB integration.
