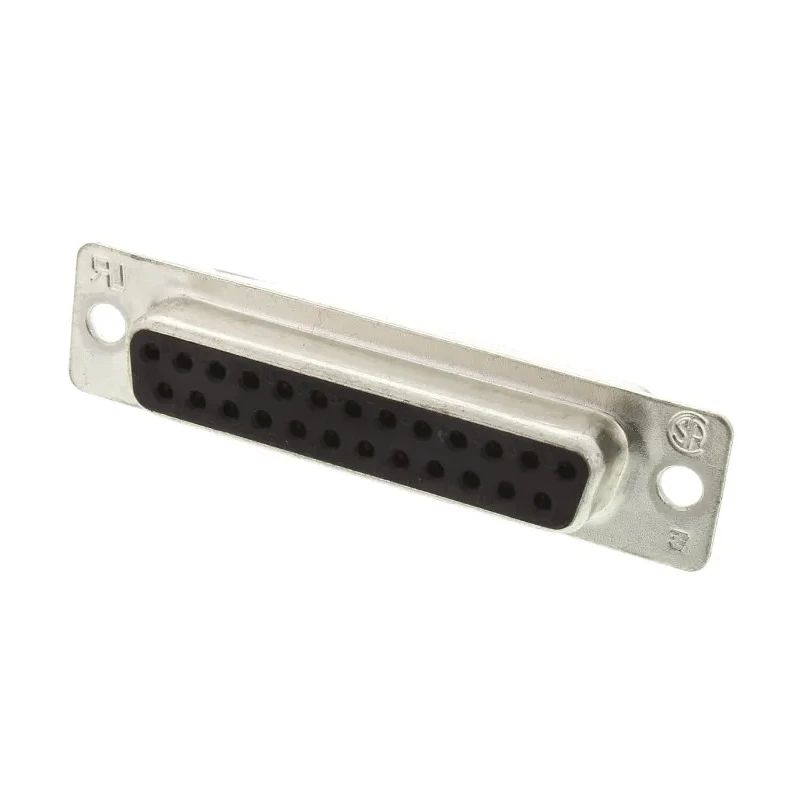

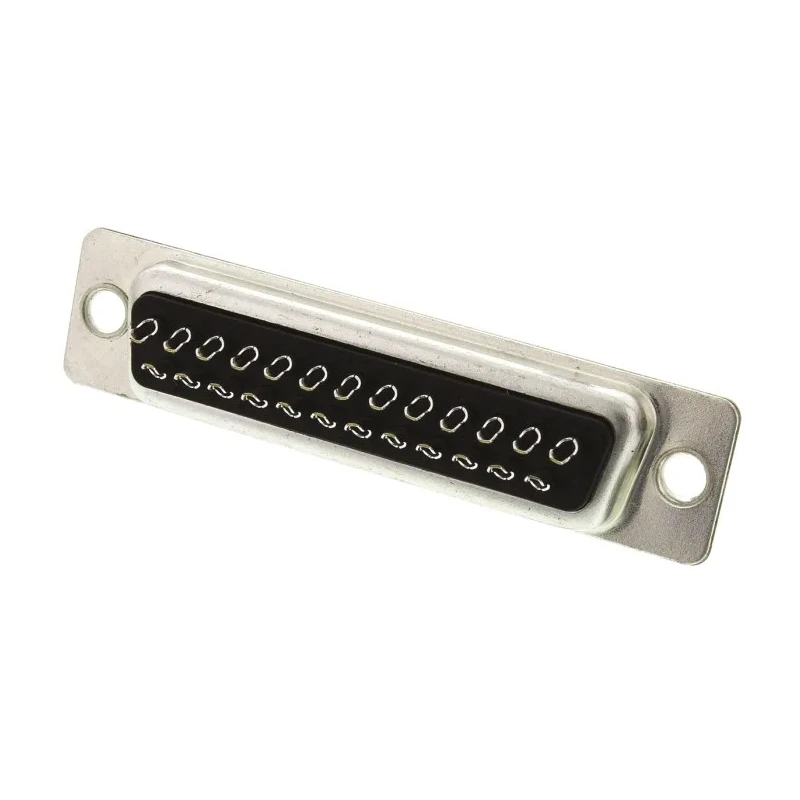

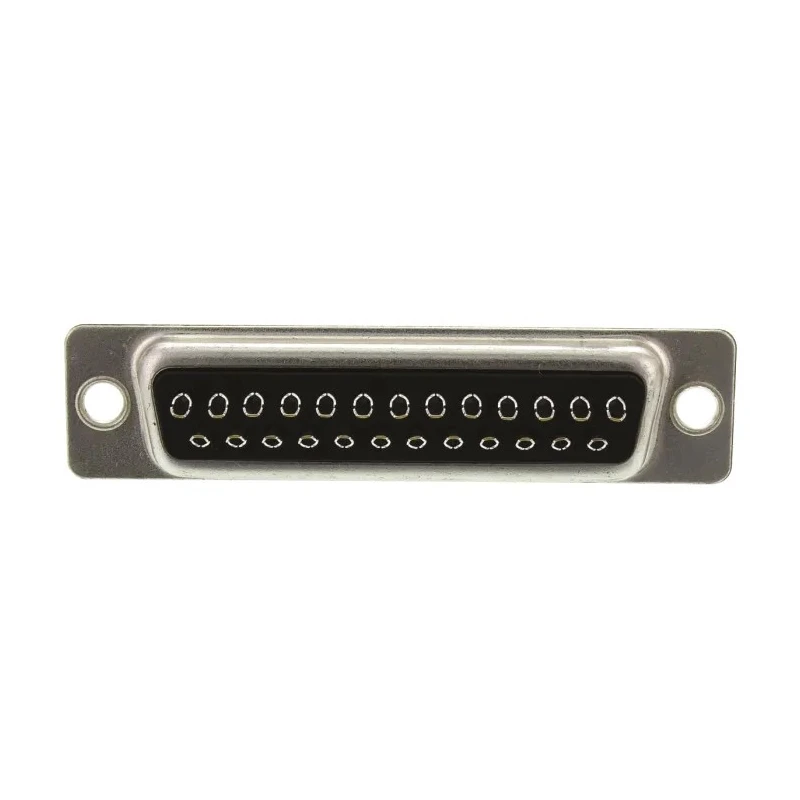

TE Connectivity AMPLIMITE HD-20 25 Way Straight 2.77 mm Pitch Panel Mount D-Sub Connector Female 5-747913-2

TE Connectivity 5-747913-2 AMPLIMITE HD-20 25 Way Straight 2.77 mm Pitch Panel Mount D-Sub Connector Female is a high-density connector designed for reliable electrical performance in industrial and communication environments. The durable steel housing offers excellent EMI shielding and mechanical protection.

With 25 gold-over-nickel plated brass contacts, this connector supports currents up to 3A and voltages up to 250V. It features solder cup termination for secure wiring and a panel mount design suitable for various enclosure applications.

Operating temperature ranges from -55°C to 105°C, making it suitable for harsh operating conditions. The connector’s compact 2.77 mm pitch allows for space saving in electronic assemblies, while the straight orientation and female gender enable straightforward integration into systems.

Part of the AMPLIMITE HD-20 series, this model ensures compatibility with related HDE, HDF, HDP, and HD-20 connectors. It is widely used in electronic equipment requiring robust connection solutions, including telecommunications, industrial machinery, and instrumentation.

Features 25 contacts for secure data and signal transmission. Constructed with a steel housing providing robust protection and EMI shielding. Solder termination type ensures strong and durable wire connections. Rated for 3A current and 250V voltage handling for versatile applications.

Gold plated brass contacts provide excellent corrosion resistance and conductivity. Designed for temperatures from -55°C to 105°C allowing operation in harsh environments. Compact 2.77 mm pitch design for space-efficient panel mounting.

Female connector gender fits corresponding male connectors securely. Part of the AMPLIMITE HD-20 series known for high performance connectors. Ideal for industrial and communications data interface applications.

This connector supports various industrial sectors including electronic manufacturing, telecommunications equipment, HVAC control units, and data communication systems. Its precise construction and robust materials provide dependable performance in demanding applications.
