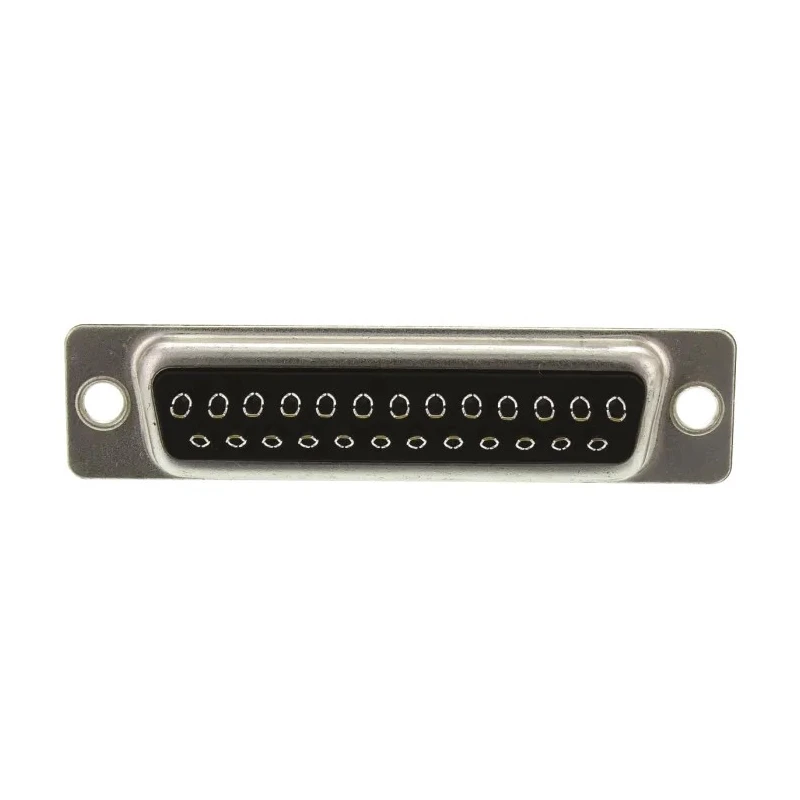

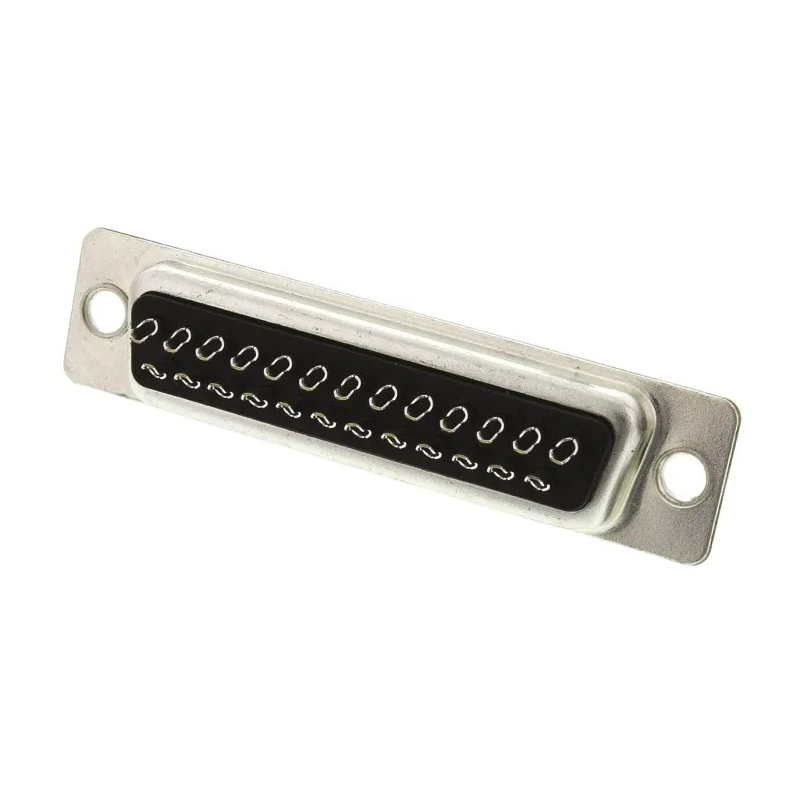

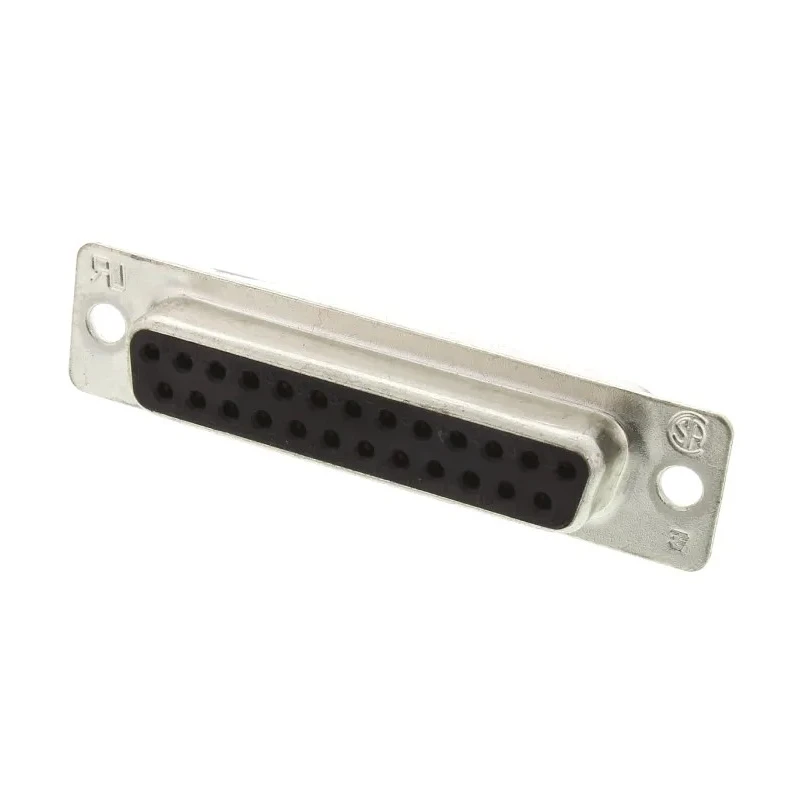

TE Connectivity AMPLIMITE HD-20 25 Way Straight 2.77 mm Pitch Panel Mount D-Sub Connector Female 5-747913-2
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Panel Mount |
| Housing Material | Steel |
| Contact Material | Brass |
| Series | AMPLIMITE HD-20 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.77mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 25 |
| Contact Gender | Female |
| Connector Gender | Female |
| Contact Size | 20 |
| Connector Type D | D-Sub |
| D-Sub Shell Size | B |
Key Features
- This connector supports 25 contacts ensuring robust electrical connections.
- Constructed with a steel housing and gold over nickel plated brass contacts for corrosion resistance.
- Rated for currents up to 3A and voltages up to 250V.
- Solder termination type with female connector gender and straight orientation.
- Operating temperature range from -55°C to 105°C for demanding environments.
- Features full EMI shielding with a tin plated shell for enhanced signal integrity.
- Complies with AMPLIMITE HD-20 series standards designed for communication and data interfaces.
Product Description
TE Connectivity 5-747913-2 AMPLIMITE HD-20 series D-Sub Connector is a high-density, 25-way, straight orientation, panel mount connector with a 2.77 mm pitch designed for demanding electronic and industrial applications.
This connector features a robust steel housing and precision-formed brass contacts plated with gold over nickel for excellent conductivity and corrosion resistance. It supports currents up to 3A and voltages up to 250V, suitable for a variety of power and signal transmission tasks.
The connector’s tin plated shell provides full electromagnetic interference (EMI) shielding and electrostatic discharge (ESD) insulation, enhancing signal integrity in noisy environments. Its solder cup termination allows reliable cable assembly and durability. Operating temperature ranges from -55°C to 105°C makes it suitable for harsh industrial conditions.
AMPLIMITE HD-20 connectors are widely used in communication, data interfaces, and electronic equipment where space-saving and high reliability are critical. The 25-contact configuration supports complex signal routing within constrained panel spaces.
This connector supports 25 contacts ensuring robust electrical connections. Constructed with a steel housing and gold over nickel plated brass contacts for corrosion resistance. Rated for currents up to 3A and voltages up to 250V.
Solder termination type with female connector gender and straight orientation. Operating temperature range from -55°C to 105°C for demanding environments. Features full EMI shielding with a tin plated shell for enhanced signal integrity.
Complies with AMPLIMITE HD-20 series standards designed for communication and data interfaces. This product is suitable for industrial, electronic manufacturing, communication equipment, and data handling applications requiring reliable interconnect solutions.
Explore TE Connectivity connectors on EnvMart for quality and performance solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for currents up to 3A.
It is rated for voltages up to 250V.
The operating temperature range is from -55°C to 105°C.
This D-Sub connector features 25 contacts.
It has a steel housing and brass contacts that are plated with gold over nickel for corrosion resistance.
This connector uses a solder termination type.
The contact pitch is 2.77 mm.
It is designed for panel mount installation.
Yes, it features full EMI shielding with a tin plated shell for enhanced signal integrity.
It is suitable for communication, data interfaces, and electronic equipment requiring reliable interconnect solutions.
This connector has a female gender.
The D-Sub shell size for this model is B.
