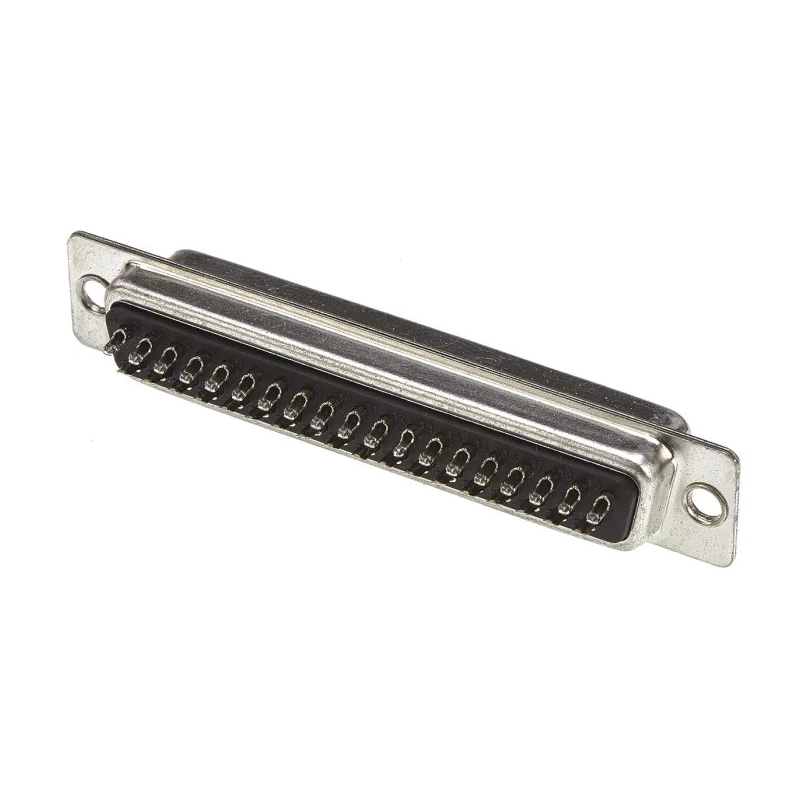

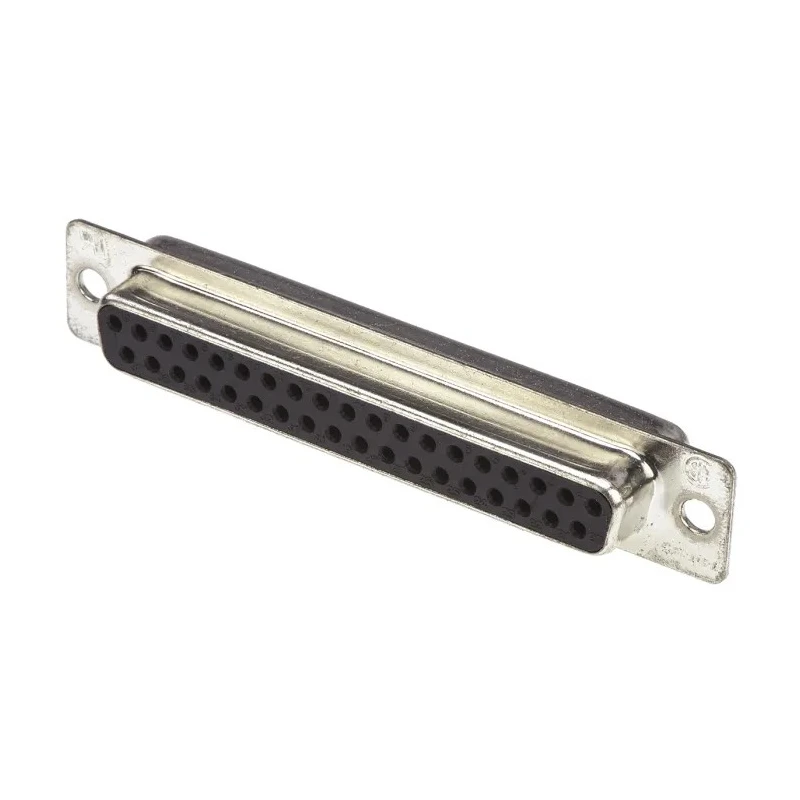

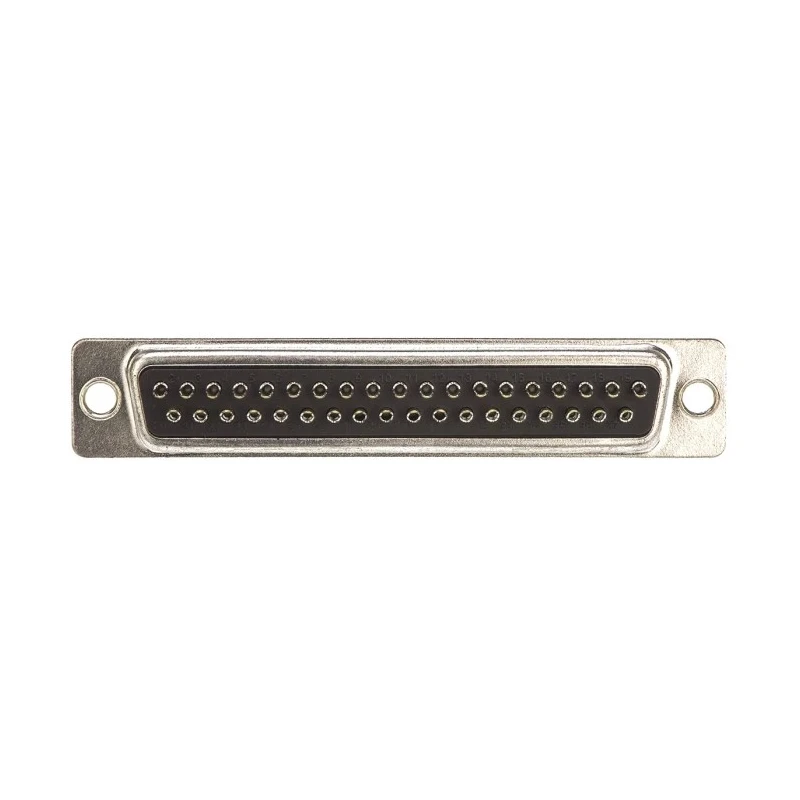

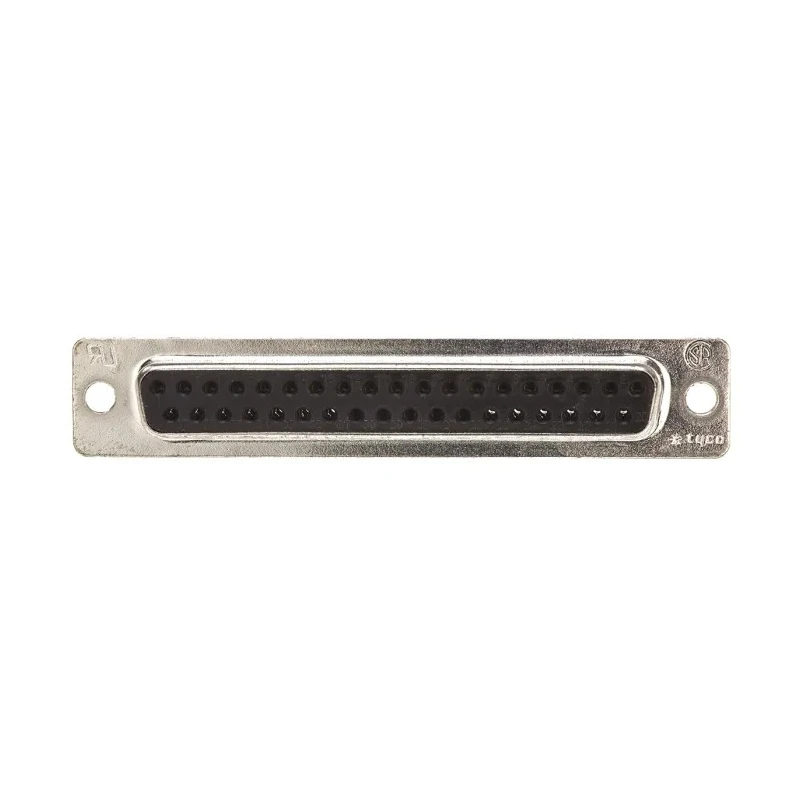

TE Connectivity AMPLIMITE HD-20 37 Way Straight 2.77 mm Pitch Panel Mount D-Sub Connector Female 5-747917-2

TE Connectivity 5-747917-2 is a high-density AMPLIMITE HD-20 Series D-Sub Connector designed for panel mount applications. This female connector features 37 contacts in a straight orientation with a 2.77 mm pitch, supporting current up to 3A and voltage rating of 250V. Constructed with a robust steel housing and phosphor bronze contacts plated with gold over nickel, it ensures excellent conductivity and corrosion resistance.

The connector operates reliably within a temperature range of -55°C to 105°C and utilizes a solder cup termination style for secure electrical connections. Its 94V-0 rated black thermoplastic insert provides flame retardance and mechanical stability.

This AMPLIMITE HD-20 series connector provides 65% higher density compared to standard HD-20 connectors, saving space in electronic assemblies while delivering EMI shielding and ESD insulation for enhanced signal integrity. The tin-plated steel shell with full shielding offers low impedance and strain relief through crimped shield terminations.

Compatible with a wide range of backshells and cable clamps, the connector is suitable for industrial, communication, data interface, and power connector applications requiring precision and durability.

This D-Sub Connector has 37 female contacts with a 2.77 mm pitch. Steel housing with tin-plated shell enhances durability and EMI shielding. Gold over nickel plated phosphor bronze contacts ensure reliable conductivity. Rated for up to 3A current and 250V operating voltage.

Operates between -55°C and 105°C with solder cup termination type. Designed for high-density panel mount applications under the AMPLIMITE HD-20 series. Suitable for data interfaces, industrial machinery, and communication equipment.
