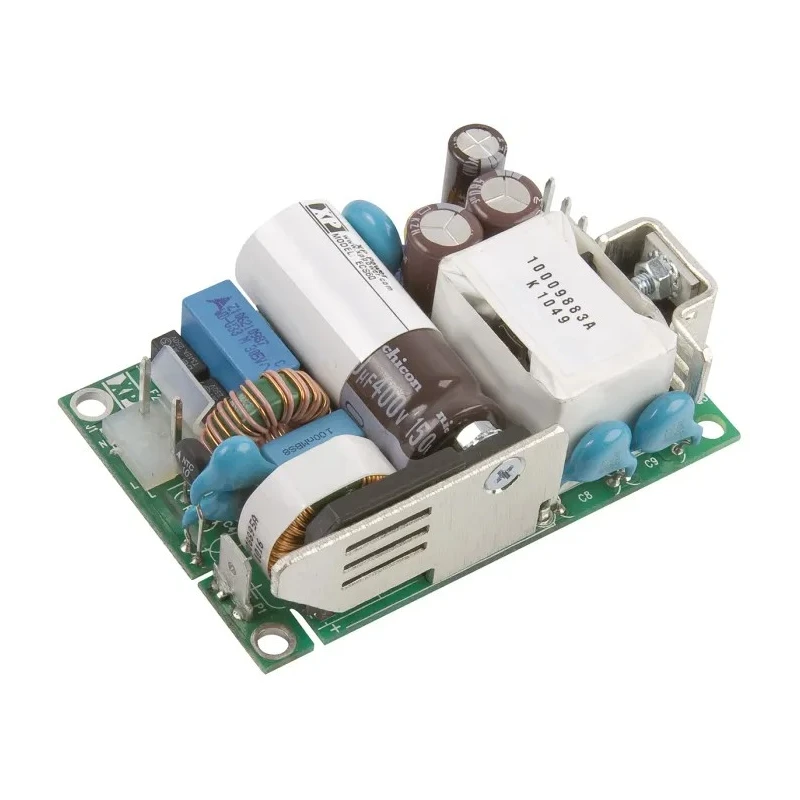

XP Power Switching Power Supply 12V dc 60W 264V ac ECS60US12
Specifications
| Country of Origin | India |
|---|---|
| Brand | XP Power |
| Power | 60W |
| Efficiency | 90% |
| Length | 76.2mm |
| Model | ECS60US12 |
| Depth | 23.2mm |
| Gross Weight | 100g |
| Width | 50.8mm |
| Mount Type | Chassis |
| Series | ECS |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -20°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 264V ac |
| Maximum Output Voltage | 12V dc |
| SMPS Output Current | 5A |
| Minimum Input Voltage | 120, 80V dc |
Key Features
- Compact chassis mount design with small footprint.
- Single output of 12V DC at 5A current capacity.
- High efficiency up to 90% for energy conservation.
- Operating temperature range from -20°C to 70°C ensures robust performance.
- Conforms to multiple safety and EMC standards including UL 60950-1 and TUV approvals.
- Low leakage current and under 0.3W no-load power consumption.
- Convection cooled with robust ECS series construction for medical and IT applications.
- Suitable for industrial, medical, laboratory, and electronic power supply applications.
Product Description
XP Power ECS60US12 Switching Power Supply is a reliable 60W AC-DC power supply designed for demanding industrial and medical applications requiring a 12V DC output voltage. This chassis mount power supply supports a wide input voltage range from 120V to 264V AC, allowing versatile deployment across different regions and equipment.
Featuring a compact construction with a footprint of only 2 x 3 inches and ultra-low profile height under 1 inch, the ECS60 series is built for space-constrained installations. The device provides a single output channel rated at 5A current, achieving up to 90% efficiency which reduces energy waste and operating costs.
The unit is convection cooled, eliminating the need for fans and increasing durability and silent operation. Designed for IT and medical use, the supply meets stringent safety and EMC standards including UL 60950-1, ANSI/AMMI ES 60601-1, and TUV certifications. It guarantees low leakage current and very low standby power consumption below 0.3W.
The temperature tolerance ranges from -20°C to 70°C, ensuring dependable operation in varied environmental conditions. Dimensionally, the power supply measures 76.2mm length, 50.8mm width, and 23.2mm depth while weighing approx. 100 grams, making it lightweight yet durable.
Compact chassis mount design with small footprint. Single output of 12V DC at 5A current capacity. High efficiency up to 90% for energy conservation. Operating temperature range from -20°C to 70°C ensures robust performance.
Conforms to multiple safety and EMC standards including UL 60950-1 and TUV approvals. Low leakage current and under 0.3W no-load power consumption. Convection cooled with robust ECS series construction for medical and IT applications.
Dimensions: 76.2mm length, 50.8mm width, 23.2mm depth and weight of 100g. Suitable for industrial, medical, laboratory, and electronic power supply applications.
This switching power supply is ideal for industrial machines, IT equipment, medical instruments, laboratory setups, and other commercial electronic devices needing a compact, efficient, and certified 12V DC power source.
Browse XP Power Switching Power Supplies and other power solution products on EnvMart for premium industrial-grade components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a single output of 12V DC with a current capacity of 5A.
It achieves an efficiency of up to 90%, which helps in energy conservation.
The power supply measures 76.2mm in length, 50.8mm in width, and 23.2mm in depth.
The operating temperature range is from -20°C to 70°C, ensuring reliable performance in various conditions.
It supports a wide input voltage range from 120V to 264V AC.
This model weighs approximately 100 grams.
It is convection cooled, which eliminates the need for fans and enhances durability.
It conforms to multiple safety and EMC standards including UL 60950-1 and TUV approvals.
It is suitable for industrial, medical, laboratory, and electronic power supply applications.
The ECS60US12 features a chassis mount design, making it suitable for space-constrained installations.
It has a very low no-load power consumption of under 0.3W.
The ECS60US12 has a single output channel.
