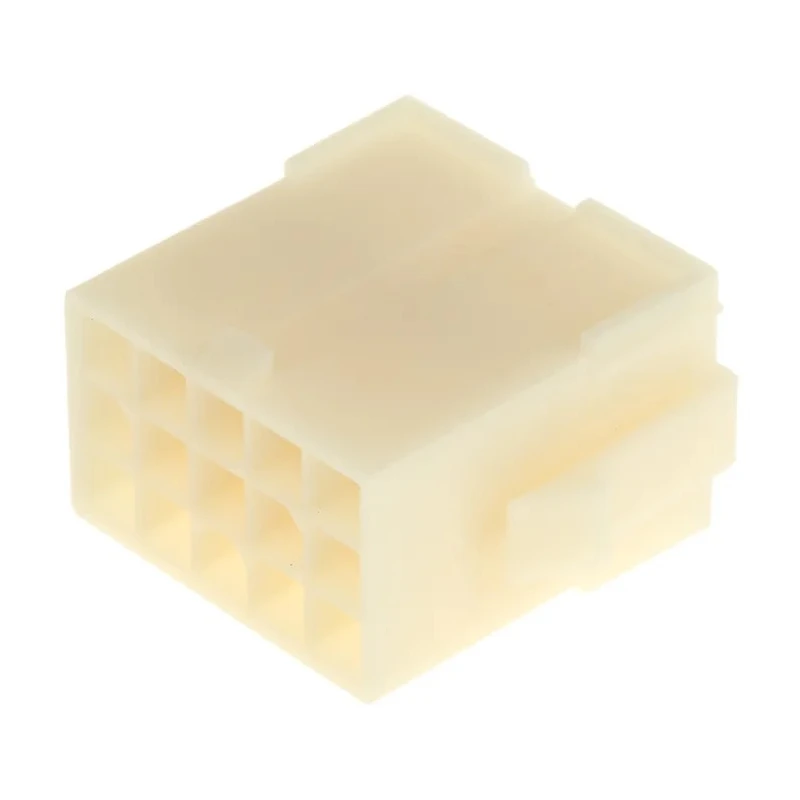

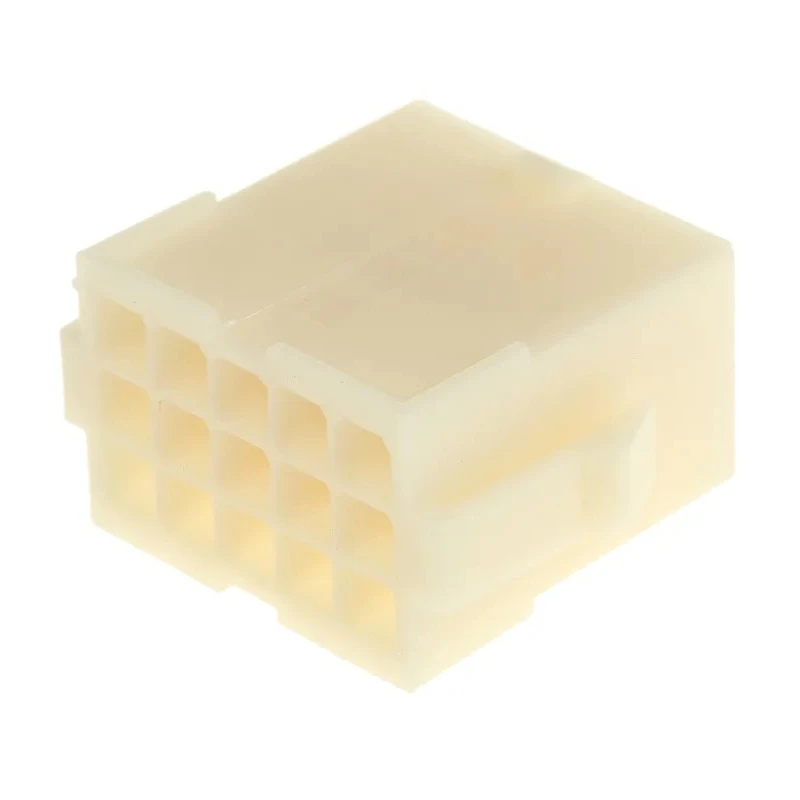

TE Connectivity Mini-Universal MATE-N-LOK Female Connector Housing 4.2 mm Pitch 15 Way 3 Row Straight 172163-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Orientation | Straight |
| Length | 30.4mm |
| Model | 172163-1 |
| Width | 16mm |
| Mount Type | Panel |
| Housing Material | Nylon |
| Series | Mini-Universal MATE-N-LOK |
| Interfaces | lances |
| Number of Rows | 3 |
| Pitch | 4.2mm |
| For Use With | Wire-to-Board Connector |
| Number of Contacts | 15 |
| Connector Gender | Female |
Key Features
- Features 15 contacts arranged in 3 rows with 4.2 mm pitch for reliable connections.
- Constructed from nylon housing material for robustness and insulation.
- Designed for panel mounting with a straight orientation to fit application requirements.
- Fully polarized with a positive locking mechanism to ensure secure mating.
- Cable mounted for wire-to-wire configurations and panel mounted using mounting ears.
- Compatible with pin and socket contacts for versatile use.
- Compact and durable design suitable for industrial controls and household appliances.
- Natural color nylon housing allows visual confirmation of correct assembly.
Product Description
TE Connectivity 172163-1 Mini-Universal MATE-N-LOK Female Connector Housing is engineered for precise wire-to-board connections, featuring a 15-way contact arrangement in 3 rows with a 4.2 mm pitch. The nylon housing material delivers excellent durability, insulation, and resistance against wear, ensuring a robust performance in various demanding industrial and commercial environments.
This connector housing is panel mountable with a straight orientation, making installation straightforward and reliable. Its positive locking mechanism and full polarization design secure mating and prevent incorrect connections.
Ideal for use in household appliances, industrial controls, networking, and storage systems, the Mini-Universal MATE-N-LOK system accommodates both pin and socket contacts in the same housing, enabling flexible configuration options.
The compact dimensions of 30.4 mm length and 16 mm width allow integration in tight spaces without compromising reliability. A natural color housing offers quick visual confirmation of proper contact locking through retention lances.
Features 15 contacts in 3-row configuration with 4.2 mm pitch. Durable nylon housing material offers strong insulation and protection. Panel mountable with straight orientation and mounting ears. Positive locking mechanism prevents mismating.
Supports cable-mounted wire-to-wire or panel-mounted wire-to-board setups. Compatible with pin and socket contacts. Compact length of 30.4 mm and width of 16 mm. Natural color for visual assembly verification.
This Connector Housing series fits applications across industrial, commercial, and household sectors. It supports efficient and secure electrical connections required in modern PCB assemblies and wiring harnesses.
Explore the full range of TE Connectivity’s reliable connector solutions on EnvMart for enhancing your assembly and manufacturing projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a 15-way contact arrangement in 3 rows with a 4.2 mm pitch, ensuring reliable connections.
The housing is constructed from nylon, providing durability and insulation for various applications.
It is designed for panel mounting with a straight orientation, utilizing mounting ears for secure installation.
The dimensions of this unit are 30.4 mm in length and 16 mm in width, allowing for compact integration in tight spaces.
It supports cable-mounted wire-to-wire configurations and panel-mounted wire-to-board setups, providing versatility in applications.
Yes, it features a positive locking mechanism that prevents mismating and ensures secure connections.
Yes, it is compatible with both pin and socket contacts, allowing for flexible configuration options.
It is ideal for use in household appliances, industrial controls, networking, and storage systems.
The connector housing has a straight orientation, which is designed to fit various application requirements.
The natural color of the nylon housing allows for quick visual confirmation of proper assembly and contact locking.
The country of origin for this model is India.
This connector housing is part of the Mini-Universal MATE-N-LOK series, designed for precise wire-to-board connections.
