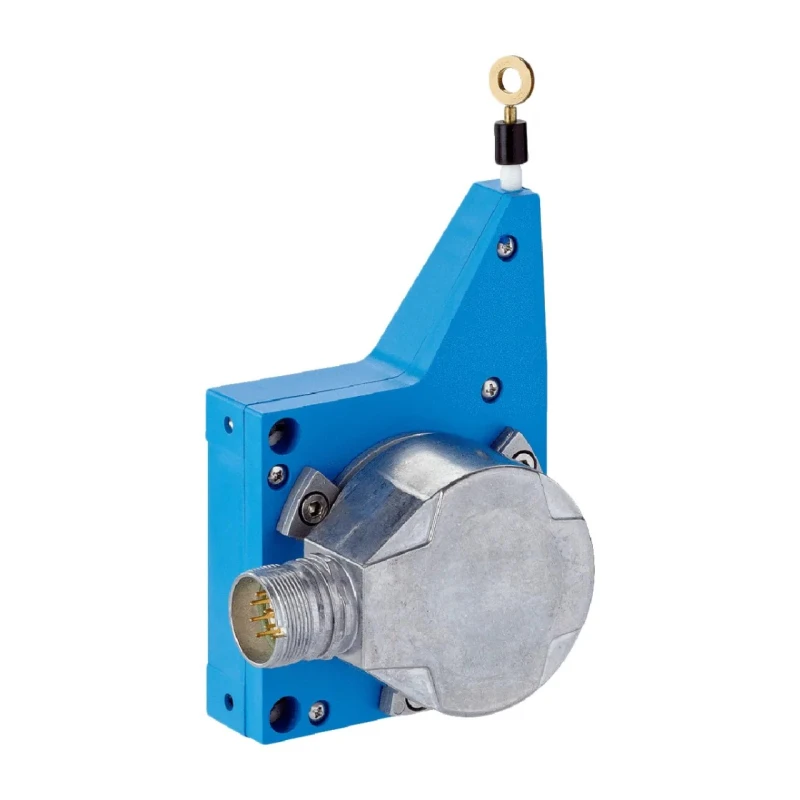

SICK ECOline Series Linear Measuring Encoder 32V, 65536 ppr, TTL Signal, 12 mm Shaft PFG08-P1AM03PP / 1075495

SICK PFG08-P1AM03PP / 1075495 linear measuring encoder from the ECOline series is a precision sensor designed for industrial motion control applications requiring high accuracy and reliable measurement. It operates on a 32V supply voltage and outputs TTL signals, with a remarkable 65536 pulses per revolution, ensuring detailed position feedback.

The encoder features a 12 mm shaft diameter and a slim housing with dimensions of 190 mm in height and width, and 76.5 mm in depth, making it suitable for installations with limited space. It is constructed using a shock-resistant, temperature-resistant plastic housing to withstand operational stresses.

Designed for versatility, it has an IP50 and IP67 ingress protection rating, safeguarding against dust ingress and water exposure, making it ideal for harsh industrial, manufacturing, and automation environments. The device supports a switching frequency of up to 800 kHz, facilitating precise control in fast-moving applications.

Connectivity is provided via an M23 male connector, supporting ease of integration into control systems. Its operating temperature range spans from -30°C to 100°C, ensuring reliable performance across wide environmental conditions.

Manufactured in Germany under strict quality standards including CE and cULus certifications, this encoder offers dependable performance in laboratory, industrial automation, HVAC, and manufacturing contexts. The ECOline series is known for its compact design, integrated spring mechanism in the drum for high stability without the need for coupling, and wire draw incremental technology to prevent wire damage from vibrations.

Utilizes TTL output signal for reliable digital interfacing. Shaft diameter measures 12 mm, fitting compact installations. Features robust IP50 and IP67 ratings for protection against dust and water. Wide operating temperature range from -30°C to 100°C supports harsh environments.

Compact dimensions with 190mm height and width, and 76.5mm depth. Supports high switching frequency of up to 800 kHz for dynamic applications. Equipped with an M23 male connector for secure electrical connection. Constructed with a temperature-resistant plastic housing for durability.
