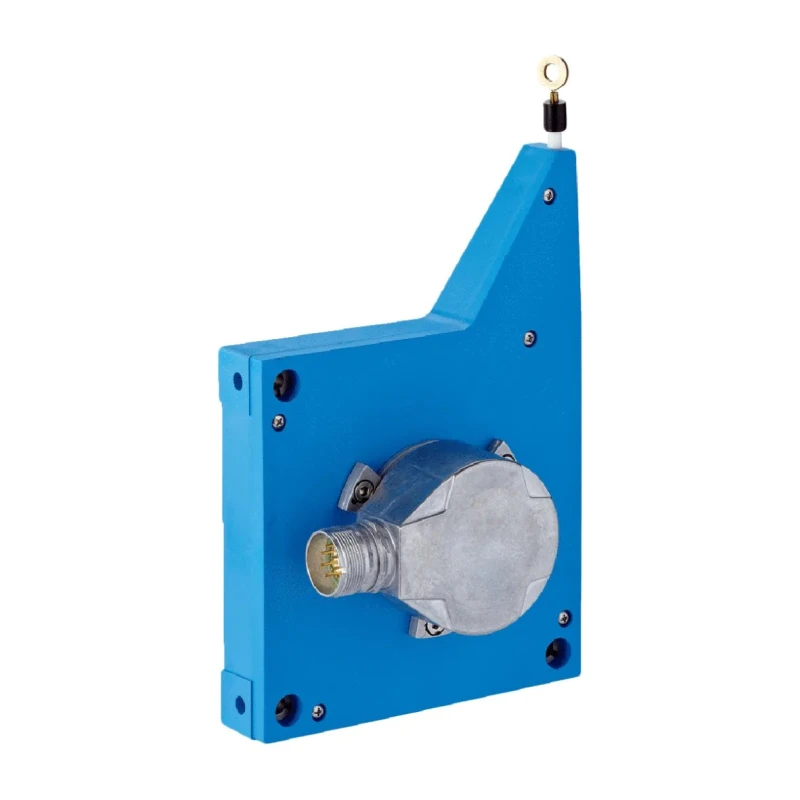

SICK ECOline Series Linear Measuring Encoder 32V, 65536 ppr, TTL Signal, 11 mm Shaft PFG13-P1AM05PP / 1075498

SICK PFG13-P1AM05PP / 1075498 ECOline Series Linear Measuring Encoder operates at 32V and delivers 65536 pulses per revolution with TTL signal output, ideal for precise linear position measurement in industrial and automation applications.

This encoder features a slim housing designed to fit compact spaces with an integrated spring in the measurement drum providing high precision and stability. The plastic housing is both shock and temperature resistant, ensuring durability in demanding environments.

The device supports a maximum supply voltage of 32V and includes an M12 male connector interface with TTL output signal. It offers IP50 and IP67 ratings, providing reliable protection against dust and water ingress. Operating temperature range between -30°C and 100°C makes it suitable for various industrial conditions.

The device supports a stroke length of 5 meters and has an overall size of 190 mm width, 190 mm height, and 76.5 mm depth, making it versatile for multiple applications. Certified under cULus and CE standards, this encoder ensures compliance with key safety and performance regulations.

Compact ECOline series design for space-limited applications. Slim housing with integrated spring in the measurement drum for precision. Temperature-resistant and shock-resistant plastic housing. Output signal type is TTL with an interface using an M12 male connector.

IP50 and IP67 ratings ensure durability in harsh environments. Supports maximum supply voltage of 32V and switching frequency up to 800 kHz. Wide operating temperature range from -30°C to 100°C. Stroke length of 5 meters suitable for linear measurement tasks.

Overall compact dimensions: 190 mm width, 190 mm height, 76.5 mm depth. Complies with cULus and CE standards.

This linear measuring encoder from SICK’s ECOline series is well suited for use in automation, manufacturing, laboratory instrumentation, and motion control systems where high resolution and reliability are essential. It is designed to integrate seamlessly into industrial machinery and control systems.
