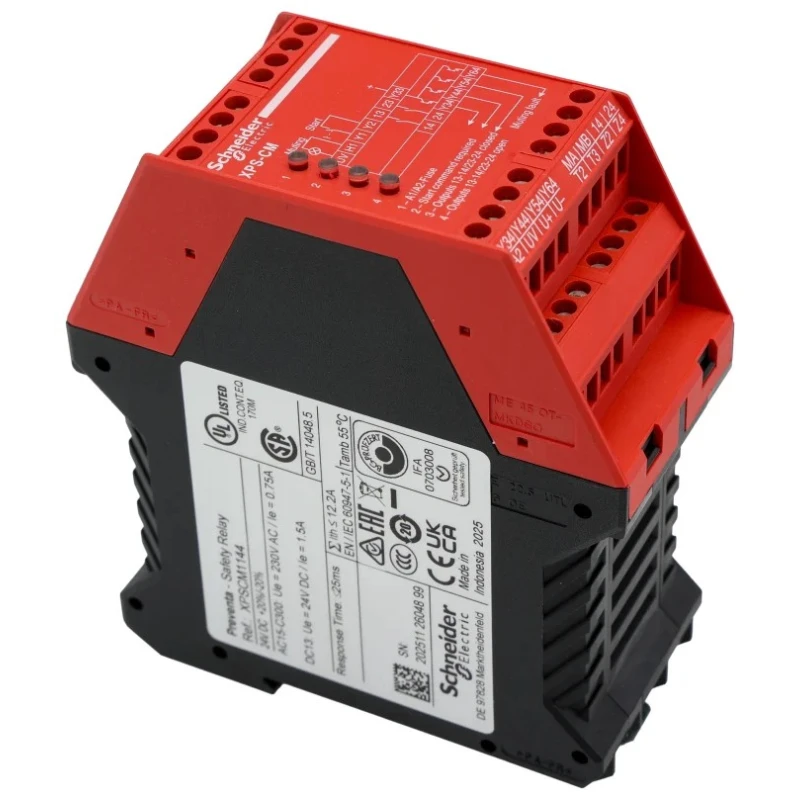

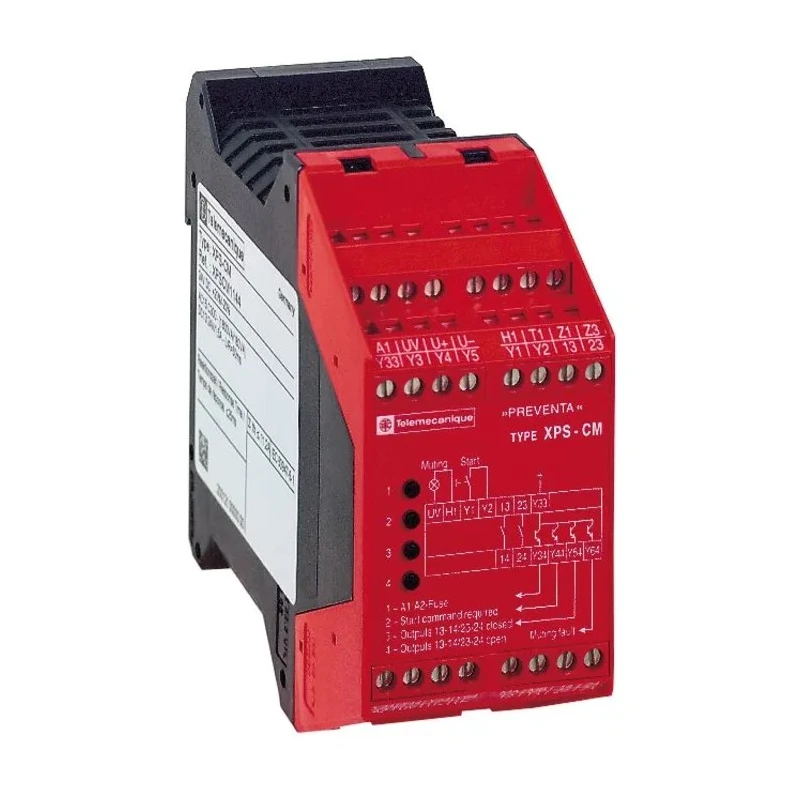

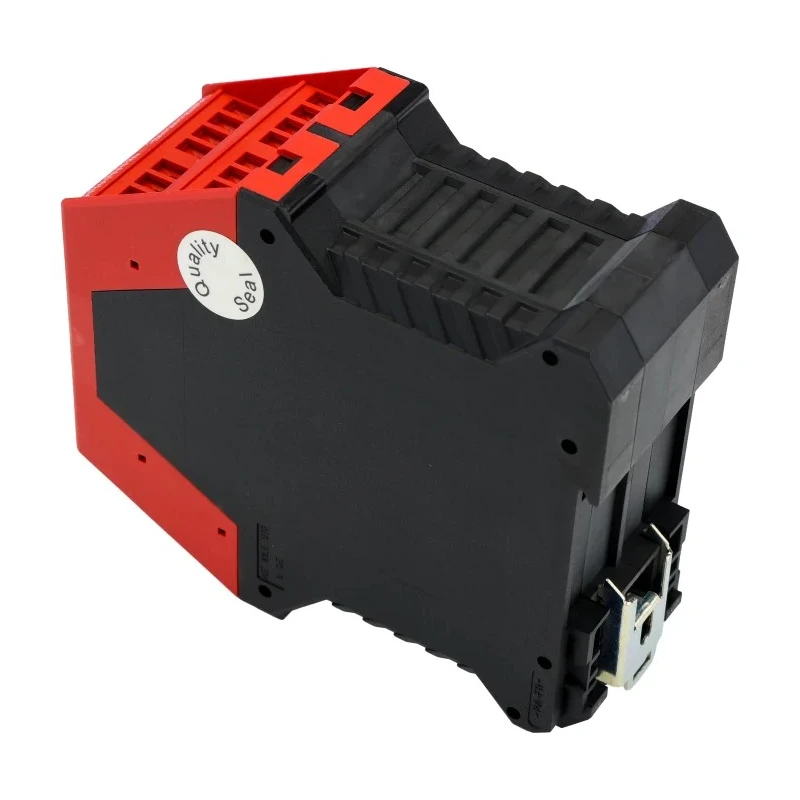

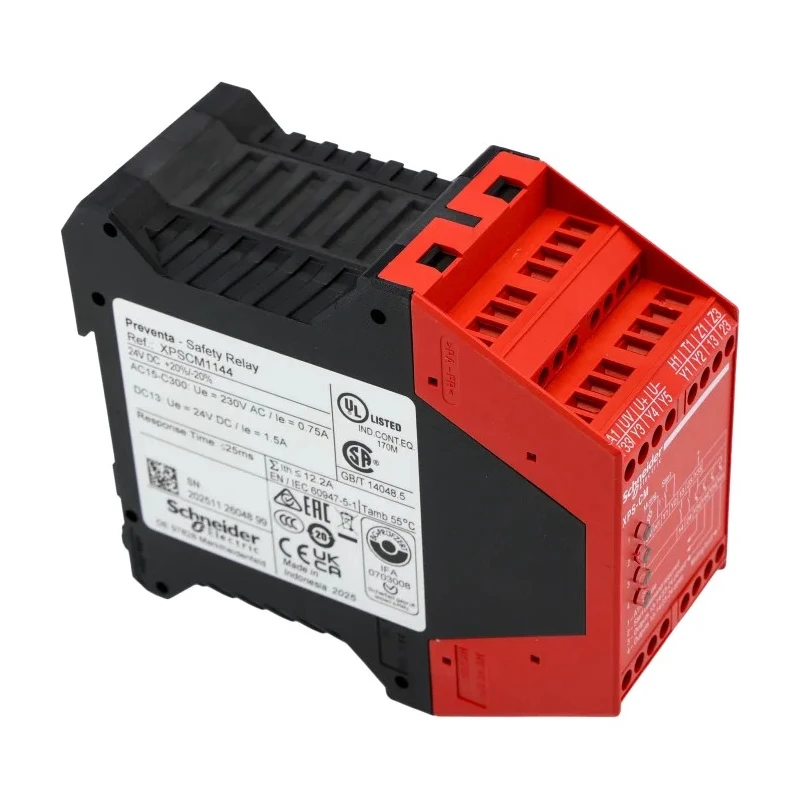

Schneider Electric 24V DC Safety Relay with 2 Safety Contacts and 4 Auxiliary Contacts XPSCM1144
Specifications
| Country of Origin | India |
|---|---|
| Power Consumption | 15W |
| Brand | Schneider Electric |
| Height | 114mm |
| Length | 99mm |
| Model | XPSCM1144 |
| IP Rating | IP20, IP40 |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | XPS CM |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -10°C |
| Safety Category | CAT 2 |
| Terminal type | Screw |
| Reset Method | Power Button |
| Coil Voltage | 24V dc |
| Safety Contacts | 2 |
| Number of Auxiliary Contacts | 4 |
| SFTYRELAY SINGLEBEAM,24VBrand | Schneider Electric |
Key Features
- Meets ISO 13849-1 Category 2 safety standards for reliable protection.
- Includes built-in muting function for enhanced operational flexibility.
- Long service life with MTTFd of 16.6 years ensuring durability.
- Supports flexible wiring with screw terminal type and DIN rail mount.
- Equipped with multiple LEDs for operational status and fault indication.
- Rated insulation voltage of 300V for safe electrical operation.
- Operates within -10°C to 55°C temperature range suitable for industrial environments.
- Compact dimensions of 99mm length, 45mm width, and 114mm height.
Product Description
Schneider Electric XPSCM1144 is a 24V DC safety relay designed specifically for industrial safety control applications. It includes 2 safety contacts and 4 auxiliary contacts, supporting high safety integrity systems compliant with ISO 13849-1 Category 2. This device monitors single beam photoelectric sensors, enabling effective safety light curtain monitoring for automation and manufacturing processes.
The device features a built-in muting capability that allows temporary suspension of safety functions for operational ease, with a maximum muting duration of 60 seconds. The relay operates reliably within an ambient temperature range from -10°C to 55°C, making it suitable for varied factory environments.
Equipped with screw terminals and DIN rail mounting, installation is straightforward and secure. Multiple LEDs provide clear indication of fuse status, restart, and safety output states, facilitating easy operation and troubleshooting.
Engineered for high dependability, the relay boasts an MTTFd of 16.6 years and a diagnostic coverage of 95.5%. Rated with 300V insulation voltage, the relay ensures robust electrical protection in critical applications. Its compact dimensions (99 mm length x 45 mm width x 114 mm height) optimize space utilization.
This Safety Relay complies with numerous international standards and approvals including EN 1088, CEI 61496-2, DIN 31001-1, EN 60 204-1, and others, underscoring its suitability for use in regulated industrial safety systems.
Meets ISO 13849-1 Category 2 standards for safety functions. Includes muting for improved operational efficiency. Long-term reliability with 16.6 years MTTFd rating. 4 auxiliary contacts for flexible configurations. Screw-type terminals and DIN rail mounting ensure ease of installation.
Multiple status LEDs enhance operational visibility. Wide operating temperature range supports harsh environments. Compact and space-saving form factor. Supports SIL 1 standard compliance in safety applications. Suitable for automation, manufacturing, and industrial safety control systems.
Explore further Schneider Electric relays and safety components at EnvMart for comprehensive industrial safety solutions.
