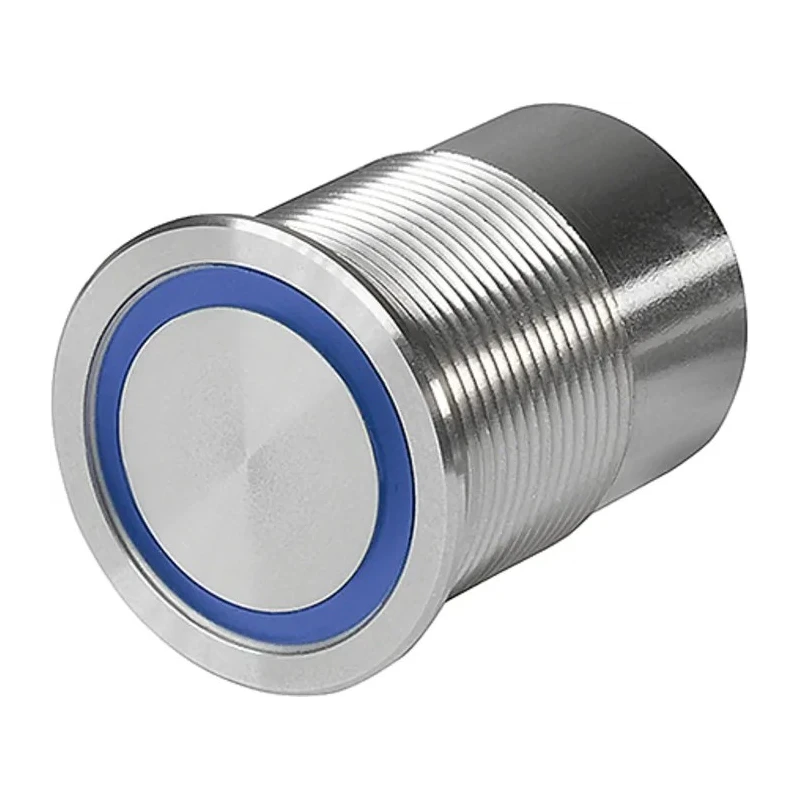

Schurter Illuminated Momentary Piezo Switch, SPST, IP69K/IP67, 100mA, -40°C to 85°C 1241.3669

Schurter 1241.3669 is an illuminated momentary piezo switch designed with a solid-state SPST contact configuration. This switch features robust IP69K and IP67 ingress protection ratings, providing superior resistance against dust, liquid, and vandalism, making it ideal for demanding environments.

The switch supports a contact current of 100mA and AC voltage of 60V, operating safely within a wide temperature range from -40°C to 85°C. The PSE series design incorporates no moving parts, reducing maintenance demands and preventing contamination ingress, a vital characteristic for medical and hygiene-sensitive installations.

Multiple LED colours - blue, red, and green - enable versatile status indication, with an easy-to-use coded wiring system providing up to seven colours for multicolour illumination options. Its compact 22 mm panel cutout size allows for seamless integration into various control panels and housings.

Thanks to its vandal-resistant anodised construction and O-ring seal with supplied nut, the switch ensures reliability in tough industrial, public, and household applications. Typical uses include medical devices, industrial control panels, external and harsh public environments, and design-sensitive interfaces requiring robust, long-lasting performance.

Vandal-resistant IP69K rated enclosure ensures durability and easy cleaning. Up to 20 million actuations provide extended operational life. Supports multiple LED illumination colours for status signaling. Solid-state design prevents ingress of dust and liquids beneath the actuator.

Compact 22 mm cutout size suits various panel installations. Wide temperature operation from -40°C to 85°C suitable for diverse environments. Supplied with mounting nut and O-ring for secure assembly. Explore more Schurter Piezo Switches and related industrial switch products to find solutions that meet your electrical and automation system needs.
