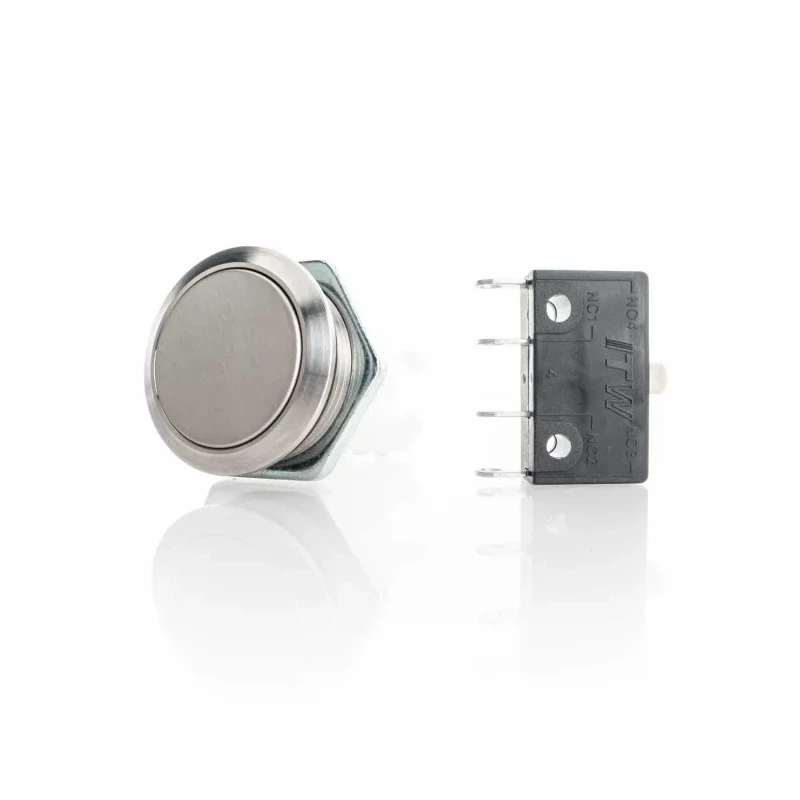

ITW Switches H48M Series Push Button Switch Panel Mount, Latching, White Actuator, 19.6 mm Cutout, SPDT, IP67, 250 H48M-210N

ITW Switches H48M-210N is a rugged stainless steel electro-mechanical push button switch designed for panel mounting applications. Featuring a latching operation and a white round actuator, it fits a 19.6 mm cutout panel size and provides Single Pole Double Throw (SPDT) contact configuration with solder terminals. The switch is built to deliver reliable switching performance with a contact rating of 250 V AC and 10A current capacity.

This series offers frontal sealing with IP67 protection level, achieved by an o-ring around the switch body, providing excellent resistance against dust and water ingress. It is engineered to operate reliably over a wide temperature range of -40°C to 65°C, ensuring durability in harsh industrial environments.

The H48M series switches are widely used across various industrial sectors including security systems, food processing equipment, medical installations, mass transit, and lift trucks. The product complies with CSA and UL standards, endorsing its quality and safety for industrial usage.

Electro-mechanical push button switch with robust stainless steel construction. Latching operation for stable on/off switching. Panel mount with 19.6 mm cutout size and IP67 frontal sealing. White round actuator designed for clear visibility and ease of operation.

SPDT contact configuration with solder terminal type. Contact voltage rated at 250 V AC and contact current at 10A. CSA and UL certified for safety and quality assurance. Operational temperature range from -40°C to 65°C suitable for demanding applications.

This push button switch is ideal for applications in electrical control equipment, industrial machinery, medical apparatus, security, and food processing. Its robust design and compliance with international standards make it a reliable component for any control panel requiring a secure and durable switching solution.
