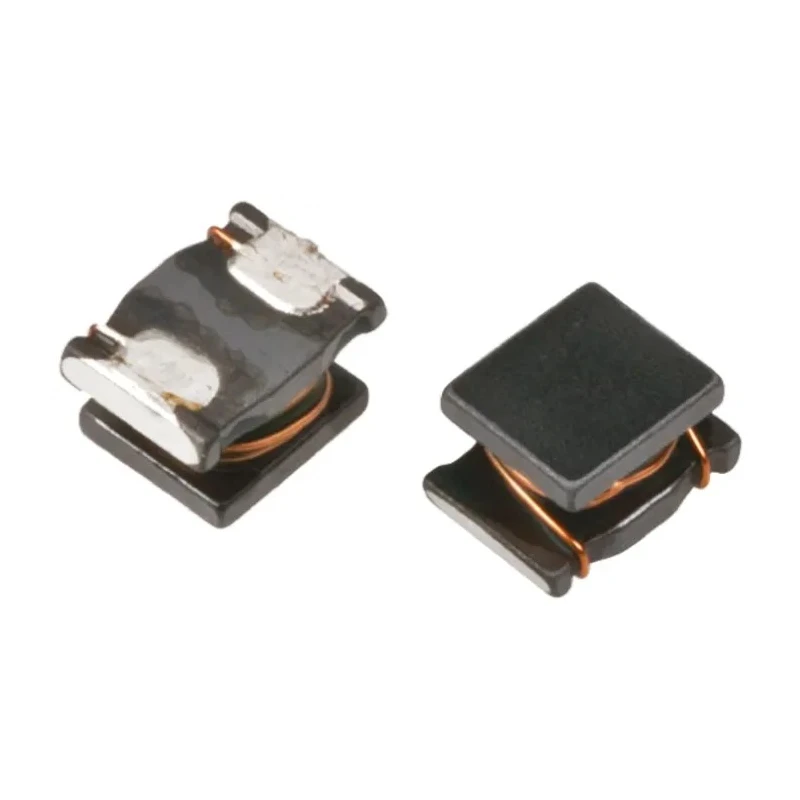

Murata Wirewound Surface Mount Inductor 1812 47μH ±10 % 220mA DC Current Ferrite Core LQH43MN470K03L
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Murata |
| Height | 2.6mm |
| Length | 4.5mm |
| Model | LQH43MN470K03L |
| Depth | 3.2mm |
| Packaging | Embossed Tape |
| Series | LQH |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 47μH |
| Standards/Approvals | RoHS |
| Package/Case | 1812 |
| Maximum DC Current | 220mA |
| Maximum DC Resistance | 1.5Ω |
| Inductance Tolerance | ±10 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 10MHz |
| Minimum Quality Factor | 35 |
| Inductor Construction | Wirewound |
| Inductor,SMT,47uH,220mA,1.5 Ohm,10MHzBrand | Murata |
Key Features
- High quality wirewound inductor with ferrite core for surface mount assembly.
- Inductance of 47μH with ±10 % tolerance ensures precise performance.
- Maximum DC current rating of 220 mA suits moderate current applications.
- Construction features low DC resistance of 1.5 Ohms for energy efficiency.
- Compact 1812 package dimensions with 4.5 mm length, 2.6 mm height, and 3.2 mm depth.
- Suitable for SMT placement with embossed tape packaging.
- Operating temperature range from -40°C to 85°C for reliable use in various environments.
- RoHS compliant with ferrite core material ensuring environmentally friendly design.
Product Description
Murata LQH43MN470K03L wirewound Surface Mount Inductor in 1812 package provides effective inductance of 47μH with a tolerance of ±10 %. This inductor features a ferrite core wound coil construction, designed for high frequency applications with excellent performance and low DC resistance of 1.5 Ohms.
The compact 1812 size (4.5 mm length, 2.6 mm height, 3.2 mm depth) facilitates efficient surface mount technology (SMT) assembly.
It supports a maximum DC current of 220 mA and operates reliably in a temperature range from -40°C to 85°C, making it suitable for demanding electronics industries including automotive, industrial controls, and consumer electronics.
The inductor is packaged on embossed tape for streamlined insertion into automated processes. This product is RoHS compliant and built in Japan, ensuring high manufacturing standards and environmental compliance. High quality wirewound ferrite core construction with low resistive losses.
Compact 1812 package ideal for space-constrained circuit boards. Stable performance across a wide temperature operating range. Embossed tape packaging for efficient pick-and-place manufacturing. Applications include power supply circuits, filtering, and EMI suppression in electronic devices.
Explore the Murata category on EnvMart for additional inductors and passive component solutions to suit your manufacturing or development needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this surface mount inductor is 47μH with a tolerance of ±10%.
This model has a maximum DC current rating of 220 mA, making it suitable for moderate current applications.
The dimensions of the 1812 package are 4.5 mm in length, 2.6 mm in height, and 3.2 mm in depth.
It operates reliably in a temperature range from -40°C to 85°C.
The core material used in this inductor is ferrite, which contributes to its performance characteristics.
The maximum self-resonant frequency of this inductor is 10 MHz.
The minimum quality factor for this model is 35, indicating its efficiency in operation.
This inductor is packaged on embossed tape, facilitating efficient surface mount technology (SMT) assembly.
The maximum DC resistance of this inductor is 1.5 Ohms, which aids in energy efficiency.
This inductor is suitable for applications such as power supply circuits, filtering, and EMI suppression in electronic devices.
Yes, this inductor is RoHS compliant, ensuring it meets environmental standards.
This product is manufactured in Japan, ensuring high manufacturing standards.
